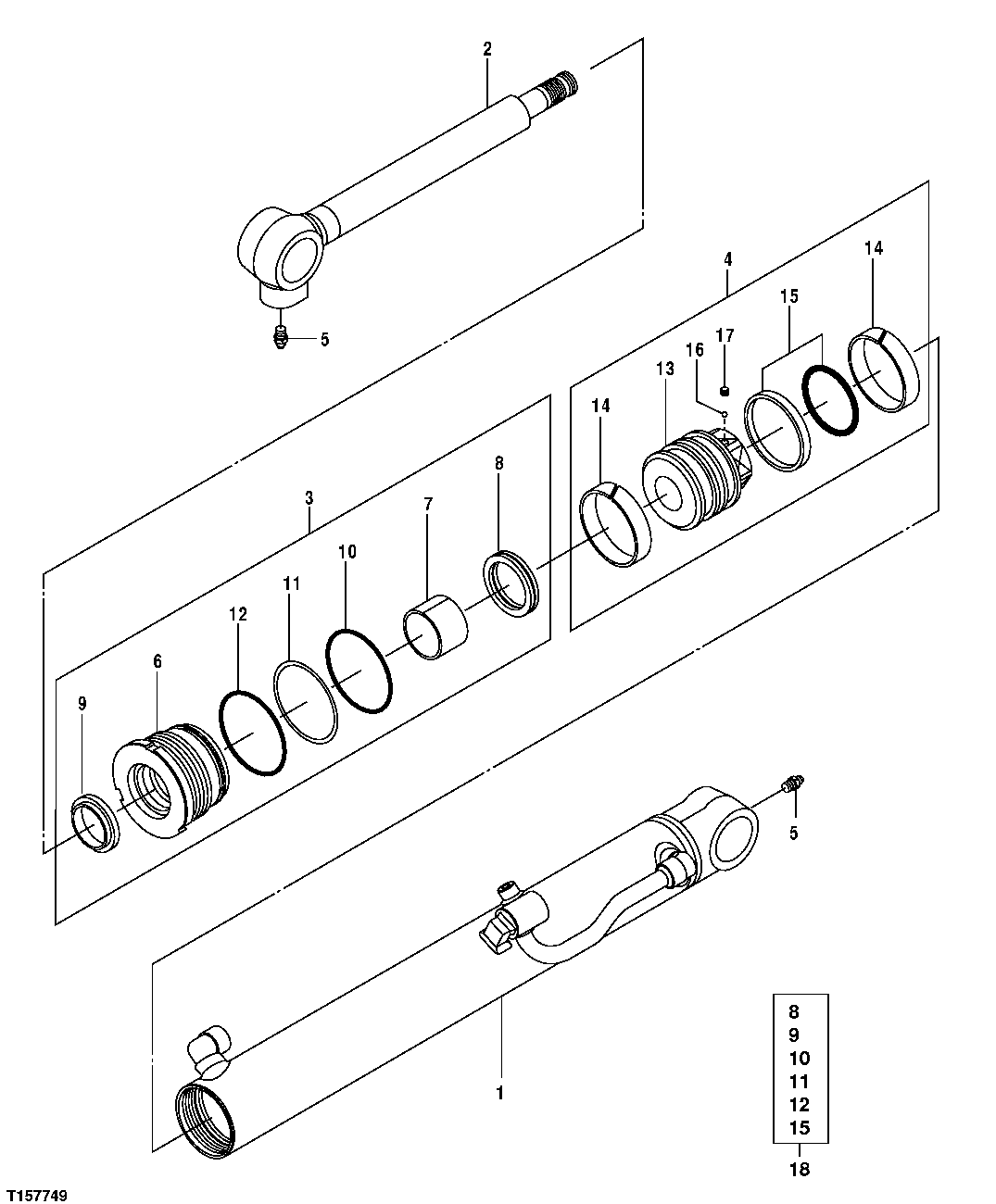

Запчасти John Deere 7ZTS 133 - Arm Cylinder 3365 HYDRAULIC CYLINDERS

1

0800204J

Hydraulic Cylinder Barrel

Sub For 0800204

1шт.

2

0800205J

Hydraulic Cylinder Rod

Sub For 0800205

1шт.

3

Hydr. Cylinder Rod Guide

TH0800203 NLA

1шт.

4

Piston

TH0800106 NLA

1шт.

5

0429920

Lubrication Fitting

Sub For TH0429920

2шт.

6

0430602J

Hydr. Cylinder Rod Guide

Sub For 0430602

1шт.

7

1157904

Bushing

Sub For TH0430303, 0430303

1шт.

8

0430304

Packing

Sub For TH0430304

1шт.

9

0800104

Seal

Sub For TH0800104

1шт.

10

0430403

O-Ring

Sub For TH0430403

1шт.

11

0430404

Back-Up Ring

Sub For TH0430404

1шт.

12

0430406

O-Ring

Sub For TH0430406

1шт.

13

0651702

Piston

Sub For TH0651702

1шт.

14

0651703

Ring

Sub For TH0651703

2шт.

15

0430412

Seal

Sub For TH0430412

1шт.

16

0431910

Ball

Sub For AT203717

1шт.

17

0429918

Set Screw

Sub For TH0429918

1шт.

18

Seal Kit

0800299 NLA, Order Components

1шт.
