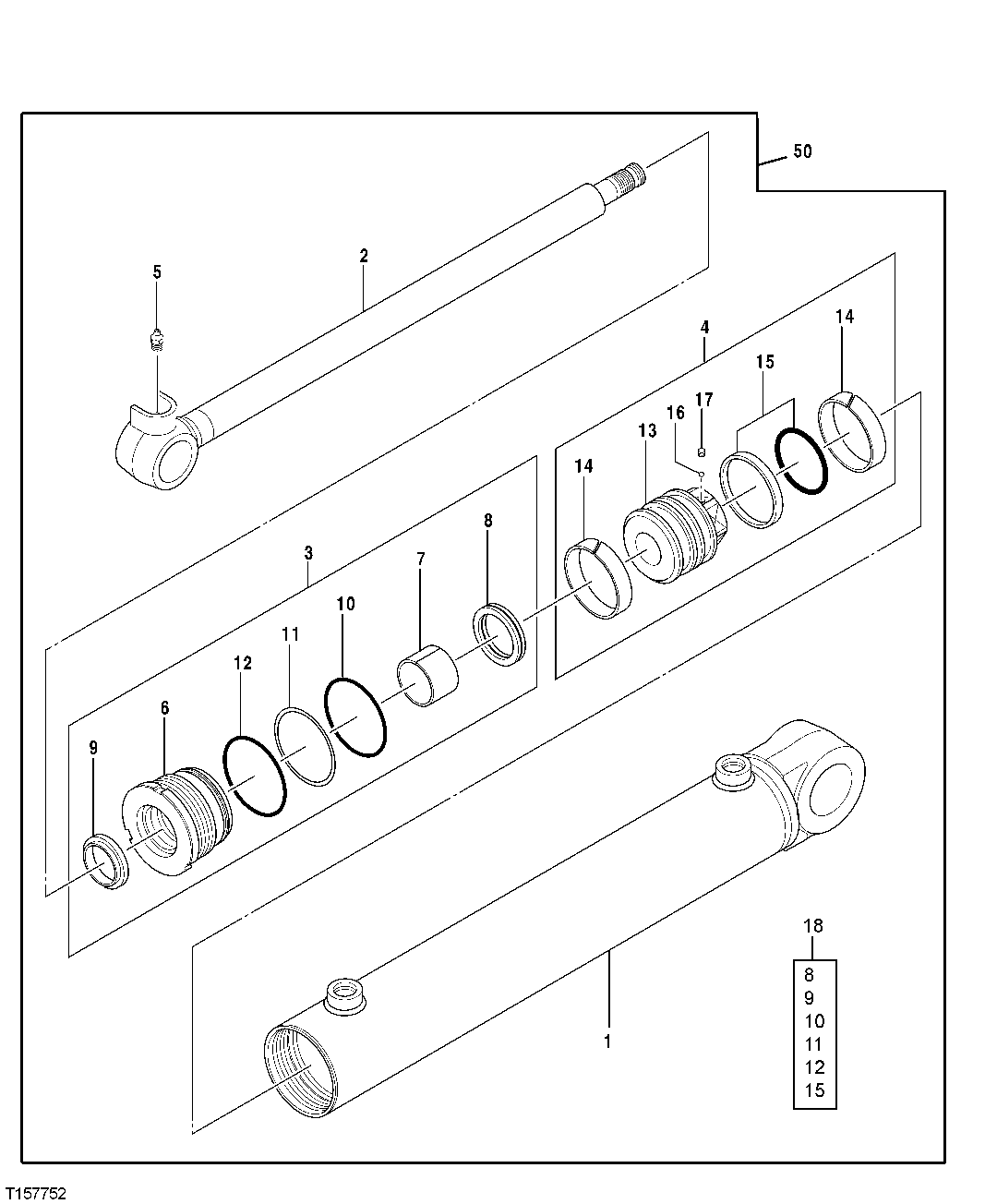

Запчасти John Deere 7ZTS 129 - SWING CYLINDER 3365 HYDRAULIC CYLINDERS

1

0800507

Tube

1шт.

2

0800508

Piston

1шт.

3

Hydr. Cylinder Rod Guide

( TH0800503 NLA)

1шт.

4

Piston

( TH0800505 NLA)

1шт.

5

0429920

Lubrication Fitting

SUB FOR TH0429920

1шт.

6

0800504

Hydr. Cylinder Rod Guide

SUB FOR TH0800504

1шт.

7

1157904

Bushing

SUB FOR TH0430303 OR 0430303

1шт.

8

0430304

Packing

SUB FOR TH0430304

1шт.

9

0800104

Seal

SUB FOR TH0800104

1шт.

10

A811055

O-Ring

SUB FOR TH0430806 OR TH100110

1шт.

11

0354304

Back-Up Ring

SUB FOR 0430807 OR AT122573

1шт.

12

TH105683

O-Ring

SUB FOR TH0430809

1шт.

13

0800506

Piston

SUB FOR TH0800506

1шт.

14

0652001

Wear Ring

SUB FOR TH0652001

2шт.

15

0354306

Ring

SUB FOR 0430815 OR AT122576

1шт.

16

0431910

Ball

SUB FOR 0429917 OR AT203717

1шт.

17

0429918

Set Screw

SUB FOR TH0429918

1шт.

18

Kit

(SEAL) ( 0800599 NLA)

1шт.

50

9192964

Hydraulic Cylinder

SUB FOR TH4441954 OR 4441954

1шт.
