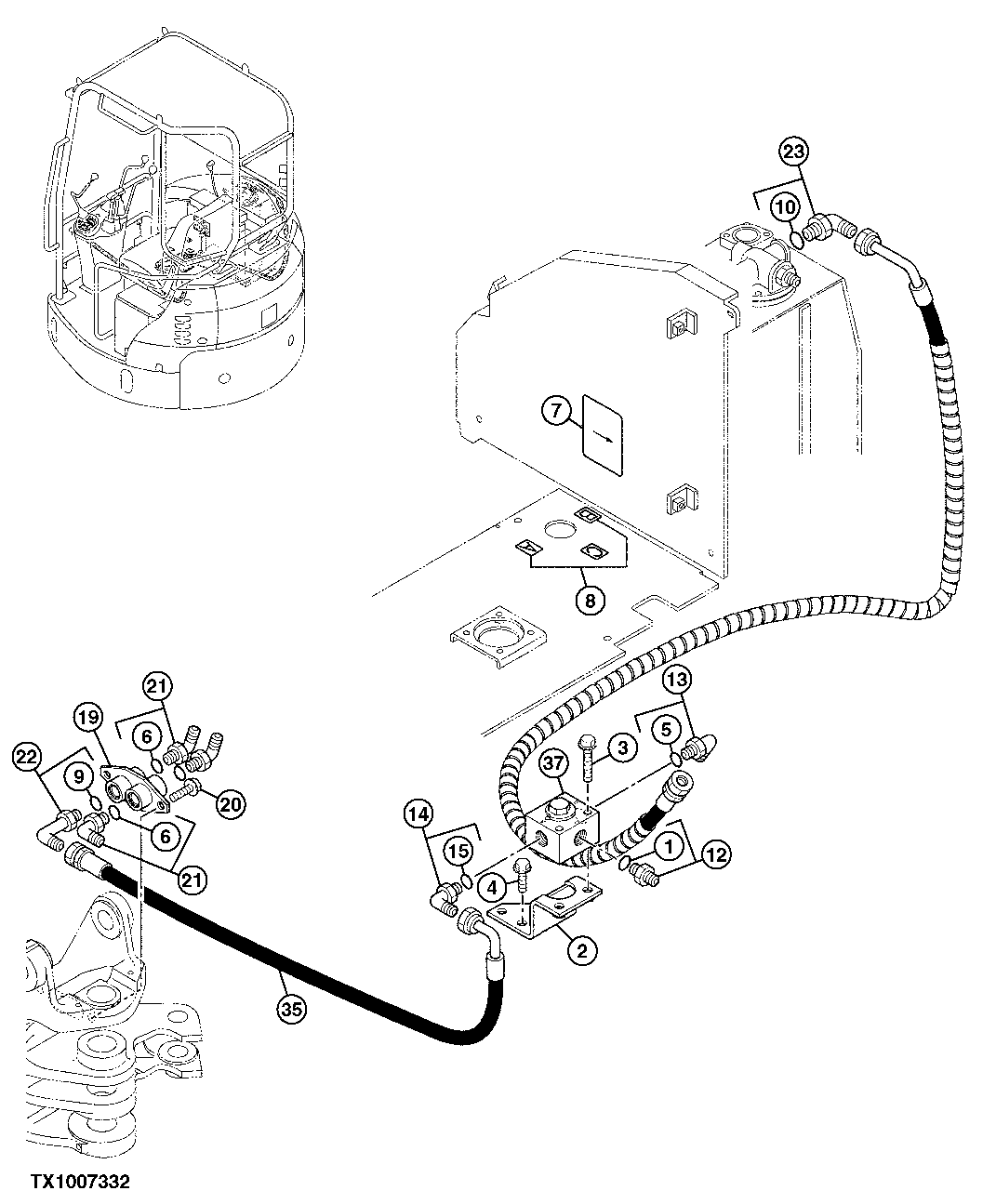

Запчасти John Deere 7ZTS 126 - AUXILIARY LINES 3363 LINES, HOSES & FITTINGS

1

4506418

O-Ring

SUB FOR U46489

1шт.

2

9755362

Bracket

SUB FOR TH9755362

1шт.

3

19M8402

Cap Screw

M8 X 65

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

4

19M7881

Screw

M8 X 20

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

5

4506418

O-Ring

SUB FOR U46489

1шт.

6

CH11570

O-Ring

1шт.

7

4422323

Label

SUB FOR AT256111

1шт.

8

Label

( TH4355585 NLA) TH4355585 NLA

1шт.

9

CH11570

O-Ring

1шт.

10

TH101926

O-Ring

1шт.

12

4368204

Adapter Fitting

SUB FOR AT251299

1шт.

13

4434983

Elbow Fitting

SUB FOR TH4434983

1шт.

14

4434985

Elbow Fitting

SUB FOR TH4434985

1шт.

15

4506418

O-Ring

SUB FOR TH4506418

1шт.

19

9755361

Adapter Fitting

SUB FOR TH9755361

1шт.

20

19M7932

Cap Screw

M8 X 16

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

21

4434982

Elbow Fitting

SUB FOR TH4434982

3шт.

22

4162917

Elbow Fitting

SUB FOR AT251166

1шт.

23

4446176

Elbow Fitting

SUB FOR TH4446176

1шт.

35

4453429

Hydraulic Hose

SUB FOR TH4453429

1шт.

36

4453430

Hydraulic Hose

SUB FOR TH4453430

1шт.

37

4340948

Selective Control Valve

SUB FOR AT251240

1шт.
