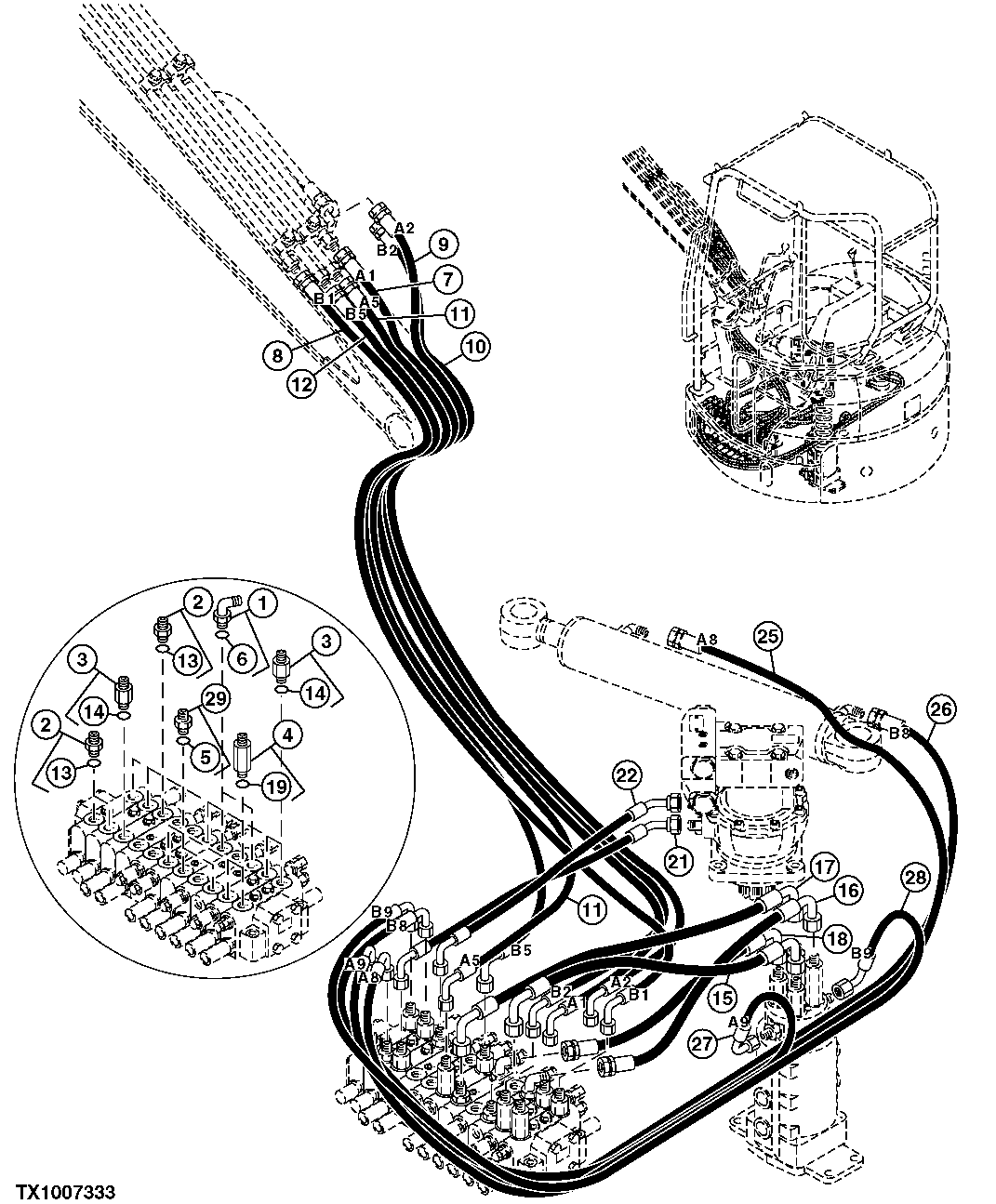

Запчасти John Deere 7ZTS 125 - MAIN LINES 3363 LINES, HOSES & FITTINGS

1

4434982

Elbow Fitting

(SUB FOR TH4434982)

2шт.

2

4368206

Fitting

(SUB FOR TH4368206)

3шт.

3

4368209

Adapter Fitting

(SUB FOR TH4368209)

6шт.

4

4419498

Fitting

(SUB FOR TH4419498)

3шт.

5

CH11570

O-Ring

1шт.

6

CH11570

O-Ring

1шт.

7

4453392

Hydraulic Hose

(SUB FOR TH4453392)

1шт.

8

4453393

Hydraulic Hose

(SUB FOR TH4453393)

1шт.

9

4453394

Hydraulic Hose

(SUB FOR TH4453394)

1шт.

10

4453395

Hydraulic Hose

(SUB FOR TH4453395)

1шт.

11

4453396

Hydraulic Hose

(SUB FOR TH4453396)

1шт.

12

4453397

Hydraulic Hose

(SUB FOR TH4453397)

1шт.

13

CH11570

O-Ring

1шт.

14

CH11570

O-Ring

1шт.

15

4453398

Hydraulic Hose

(SUB FOR TH4453398)

1шт.

16

4453399

Hydraulic Hose

(SUB FOR TH4453399)

1шт.

17

4453400

Hydraulic Hose

(SUB FOR TH4453400)

1шт.

18

4453401

Hydraulic Hose

(SUB FOR TH4453401)

1шт.

19

CH11570

O-Ring

1шт.

21

4453402

Hydraulic Hose

(SUB FOR TH4453402)

1шт.

22

4453403

Hydraulic Hose

(SUB FOR TH4453403)

1шт.

25

4453404

Hydraulic Hose

(SUB FOR TH4453404)

1шт.

26

4453405

Hydraulic Hose

(SUB FOR TH4453405)

1шт.

27

4453406

Hydraulic Hose

(SUB FOR TH4453406)

1шт.

28

4453407

Hydraulic Hose

(SUB FOR TH4453407)

1шт.

29

4042031

Adapter Fitting

(SUB FOR TH103891)

2шт.
