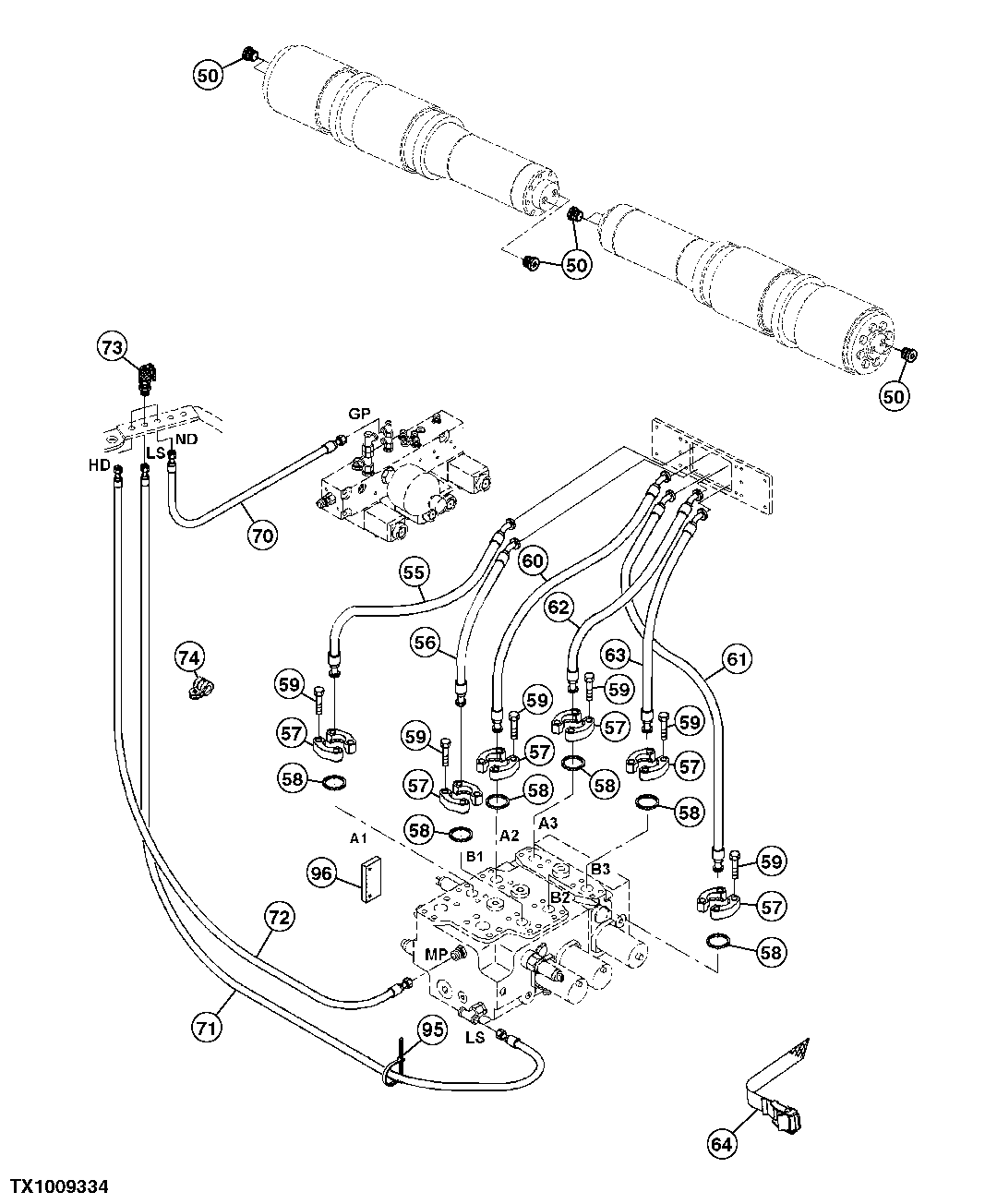

Запчасти John Deere 7ZTS 124 - MAIN LINES 3363 LINES, HOSES & FITTINGS

8

4368206

Fitting

(SUB FOR TH4368206)

2шт.

9

CH11570

O-Ring

1шт.

11

4419496

Fitting

(SUB FOR TH4419496)

2шт.

12

CH11570

O-Ring

1шт.

25

T32854

Clamp

1шт.

27

19M7938

Cap Screw

M10 X 20

1шт.

28

12M7066

Lock Washer

10 mm

1шт.

29

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

1шт.

32

H77698

Tie Band

1шт.

33

H77698

Tie Band

3шт.

36

4313059

Sleeve

(SUB FOR TH4313059)

1шт.

37

H77698

Tie Band

(SUB FOR TH4323613 OR 4323613)

2шт.

41

CH11570

O-Ring

1шт.

42

4419497

Adapter Fitting

(SUB FOR TH4419497)

2шт.

43

4042030

Adapter Fitting

(SUB FOR TH105939)

2шт.

44

M800650

Packing

1шт.
