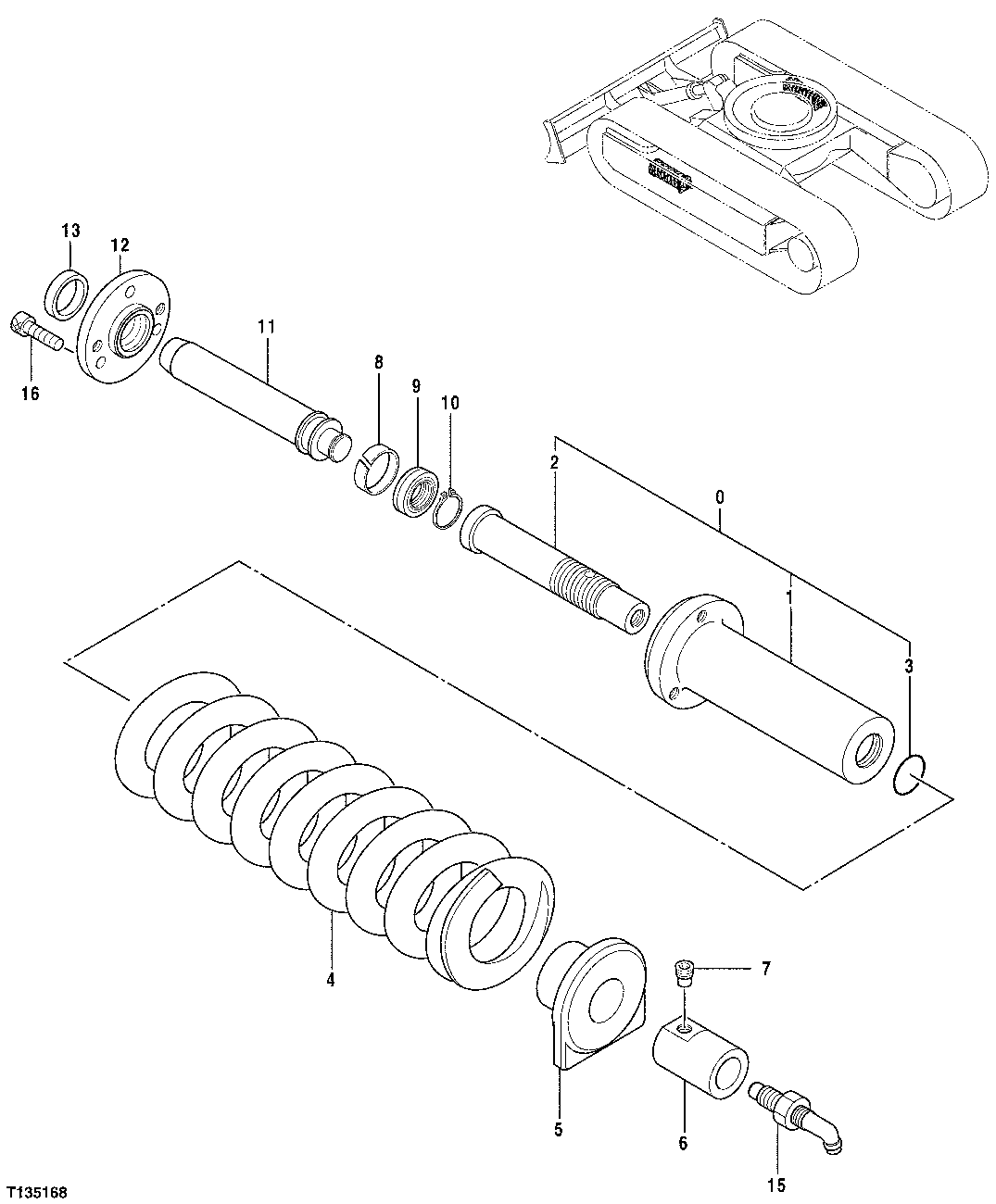

Запчасти John Deere 7ZTS 2 - ADJUSTER (RUBBER TRACK) 0130 TRACK SYSTEMS

0

Cylinder

( TH9102265 NLA)

1шт.

1

3056310

Cylinder

(SUB FOR TH3056310)

1шт.

2

3056312

Hydraulic Cylinder Rod

(SUB FOR TH3056312)

1шт.

3

CH11563

Packing

1шт.

4

3056315

Compression Spring

(SUB FOR TH3056315)

1шт.

5

4276115

Plate

(SUB FOR TH4276115)

1шт.

6

4276112

Nut

(SUB FOR TH4276112)

1шт.

7

4276113

Plug

(SUB FOR AT251183)

1шт.

8

4276110

Wear Ring

(SUB FOR TH4276110)

1шт.

9

4276111

Seal

(SUB FOR TH4276111)

1шт.

10

991338

Snap Ring

(SUB FOR TH991338)

1шт.

11

3056311

Hydraulic Cylinder Rod

(SUB FOR TH3056311)

1шт.

12

3056313

Flange

(SUB FOR TH3056313)

1шт.

13

4276116

Seal

(SUB FOR TH4276116)

1шт.

15

4276114

Flow Control Hyd. Valve

(SUB FOR AT251184)

1шт.

16

0362709

Bolt

(SUB FOR AT127455)

3шт.
