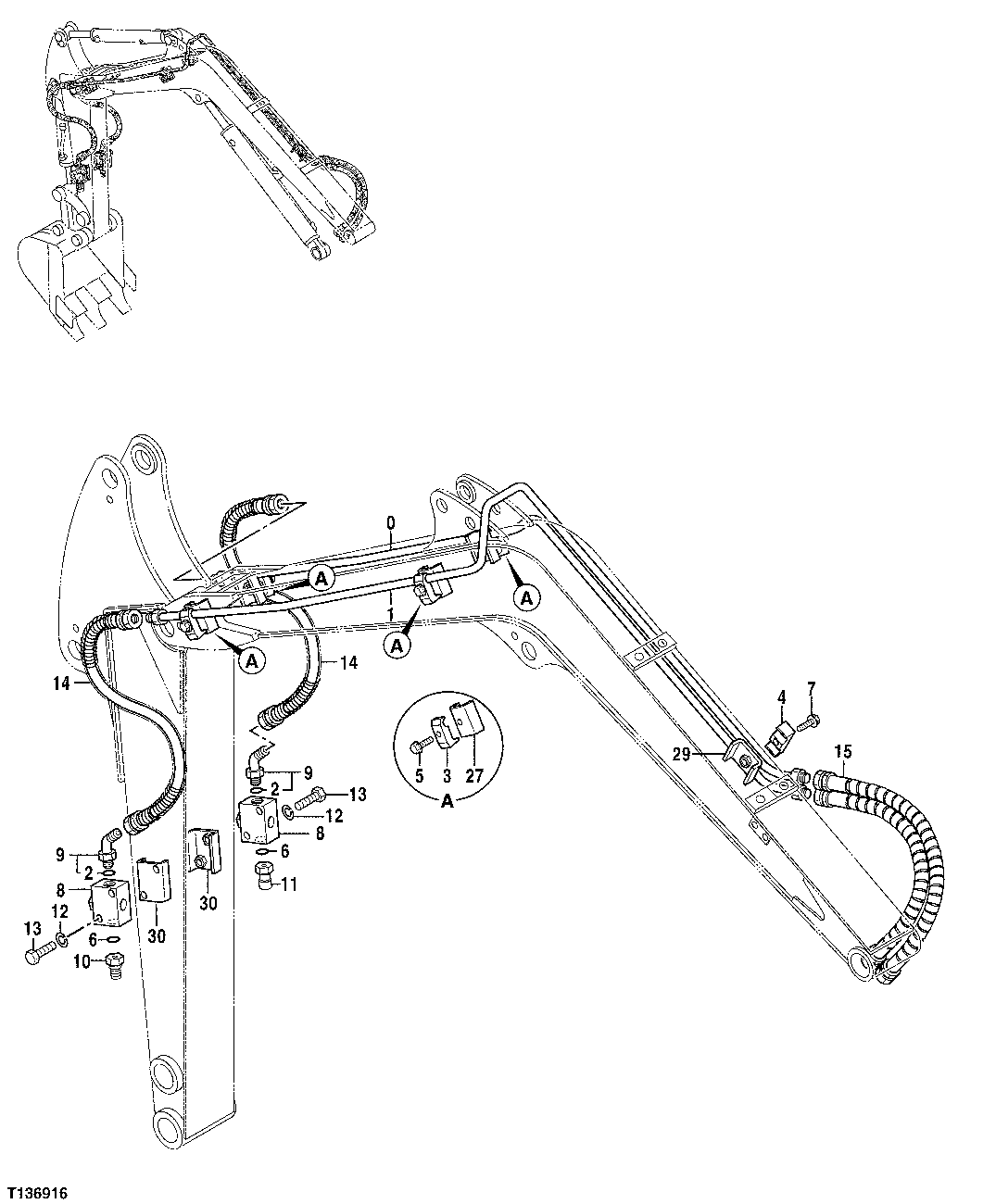

Запчасти John Deere 7ZTS 123 - AUXILIARY FRONT HYDRAULIC LINES 3363 LINES, HOSES & FITTINGS

0

8081379

Oil Line

SUB FOR TH8081379

1шт.

1

8081380

Oil Line

SUB FOR TH8081380

1шт.

2

4506418

O-Ring

SUB FOR U46489

1шт.

3

4138227

Clamp

SUB FOR TH4331315 OR 4331315

4шт.

4

4331314

Block Clamp

SUB FOR AT251231

1шт.

5

19M7358

Cap Screw

M10 X 40

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

6

O-Ring

4506418 NO LONGER REQUIRED SUB FOR U46489

2шт.

7

19M8359

Cap Screw

M8 X 45

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

8

4287721

Flow Control Hyd. Valve

SUB FOR AT251200

2шт.

9

4163046

Elbow Fitting

SUB FOR TH4163046

2шт.

10

Hydr. Quick Coupler Plug

AT194177 NO LONGER REQUIRED

1шт.

11

Hydr. Quick Coupler Socket

AT194179 NO LONGER REQUIRED

1шт.

12

Washer

12M7065 NLA

4шт.

13

19M7185

Cap Screw

M8 X 60

4шт.

14

4453165

Hydraulic Hose

SUB FOR TH4453165

2шт.

15

4453166

Hydraulic Hose

SUB FOR TH4453166

2шт.

27

9745354

Weld Nut

SUB FOR AT251635

4шт.

29

9756363

Bracket

SUB FOR TH9756363

1шт.

30

4285731

Bracket

SUB FOR TH4285731

2шт.
