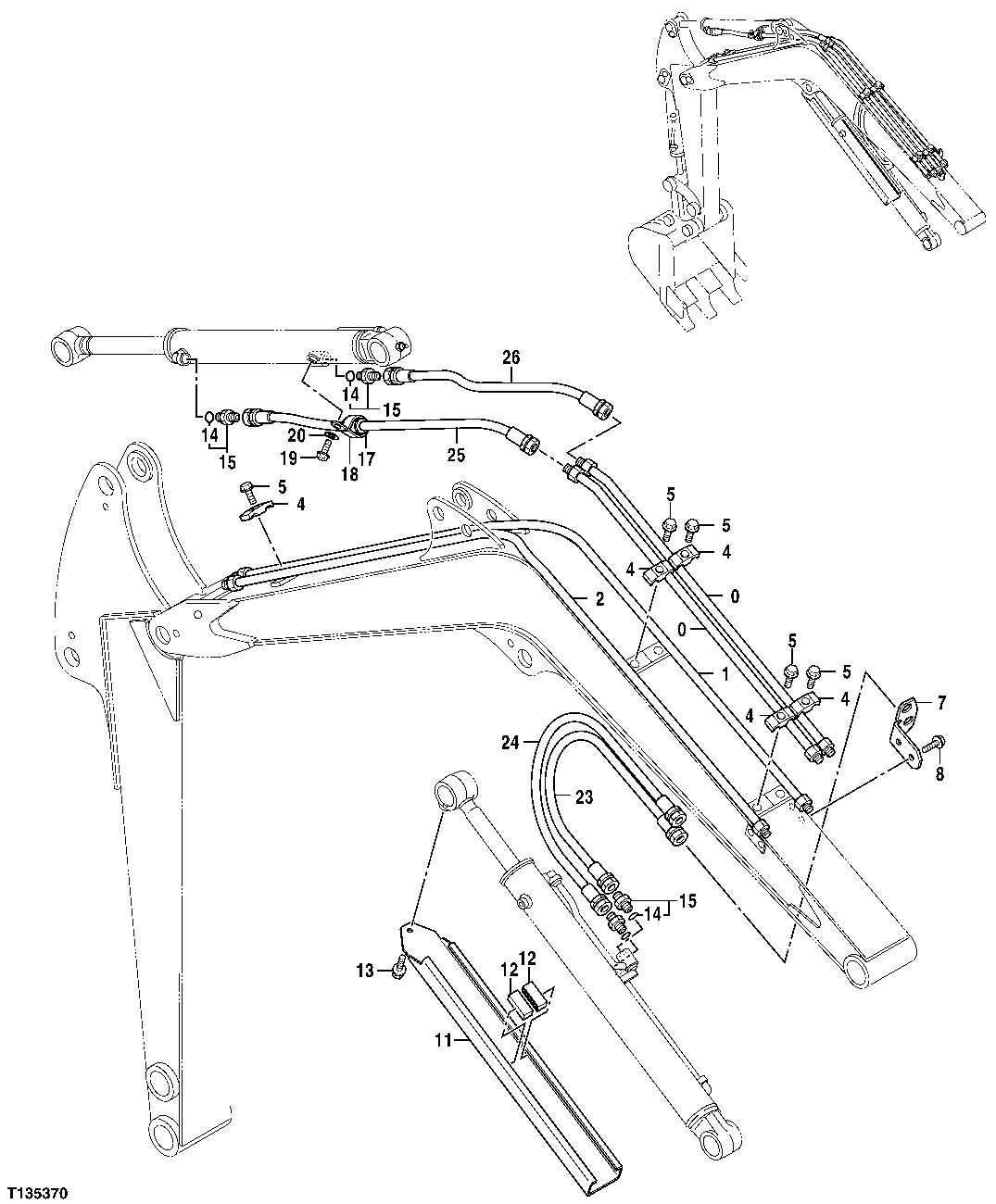

Запчасти John Deere 7ZTS 122 - FRONT HYDRAULIC LINES 3363 LINES, HOSES & FITTINGS

0

9755371J

Oil Line

SUB FOR 9755371

2шт.

1

8081366J

Oil Line

SUB FOR 8081366

1шт.

2

8081367J

Oil Line

SUB FOR 8081367

1шт.

4

4275542

Clamp

SUB FOR TH4423956

5шт.

5

19M7513

Cap Screw

M8 X 30

5шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

5шт.

Washer

12M7065 NLA

5шт.

7

4442473

Bracket

SUB FOR TH4442473

1шт.

8

19M7932

Cap Screw

M8 X 16

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

11

3070019J

Cover

SUB FOR 3070019

1шт.

12

4352044

Isolator

SUB FOR AT251252

2шт.

13

19M7938

Cap Screw

M10 X 20

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

14

M800650

Packing

1шт.

15

4042030

Adapter Fitting

SUB FOR TH105939

4шт.

17

4411259

Bushing

SUB FOR TH4411259

1шт.

18

T28949

Clamp

SUB FOR TH108460 OR 4190273

1шт.

19

19M7932

Cap Screw

M8 X 16

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

20

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR 12M7096

1шт.

23

4453160

Hydraulic Hose

SUB FOR TH4453160

1шт.

24

4453161

Hydraulic Hose

SUB FOR TH4453161

1шт.

25

4453162

Hydraulic Hose

SUB FOR TH4453162

1шт.

26

4453163

Hydraulic Hose

SUB FOR TH4453163

1шт.
