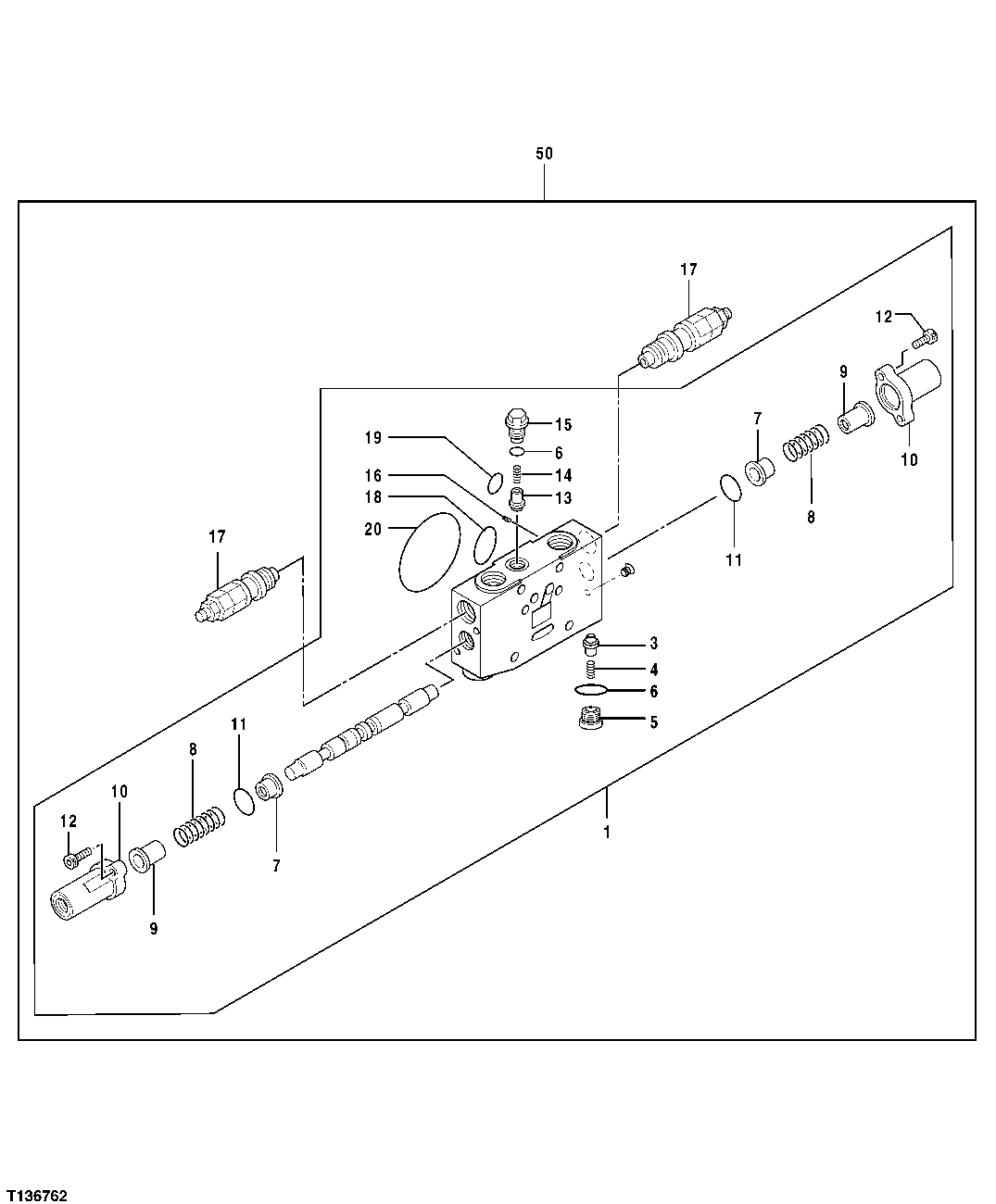

Запчасти John Deere 7ZTS 121 - Control Valve Arm Spool Section 3362 CONTROL & LOAD HOLDING VALVES

1

0801801

Spool Valve

SUB FOR TH0801801

1шт.

3

0801802

Poppet

SUB FOR TH0801802

1шт.

4

0429405

Spring

SUB FOR TH0429405

1шт.

5

0801803

Fitting Plug

SUB FOR TH0801803

1шт.

6

M800650

Packing

2шт.

7

0429310

Guide

SUB FOR TH0429310

2шт.

8

0801302

Spring

SUB FOR TH0801302

2шт.

9

0801303

Guide

SUB FOR TH0801303

2шт.

10

0801304

Cover

SUB FOR TH0801304

2шт.

11

0429313

O-Ring

SUB FOR TH0429313

2шт.

12

0429314

Bolt

SUB FOR TH0429314

4шт.

13

0801305

Poppet

SUB FOR TH0801305

1шт.

14

0801306

Spring

SUB FOR TH0801306

1шт.

15

0801307

Fitting Plug

SUB FOR TH0801307

1шт.

16

0801804

Fitting Plug

SUB FOR TH0801804

1шт.

17

4612361

Pressure Relief Valve

SUB FOR TH0801402 OR 0801402

2шт.

18

CH12329

Packing

1шт.

19

CH15146

Packing

1шт.

20

0801203

O-Ring

SUB FOR TH0801203 OR 4S00620

1шт.

50

Shut-Off Valve

SUB FOR TH4438713, 4438713 NLA In cludes All Components On This Page and Previous and Following Pages

1шт.
