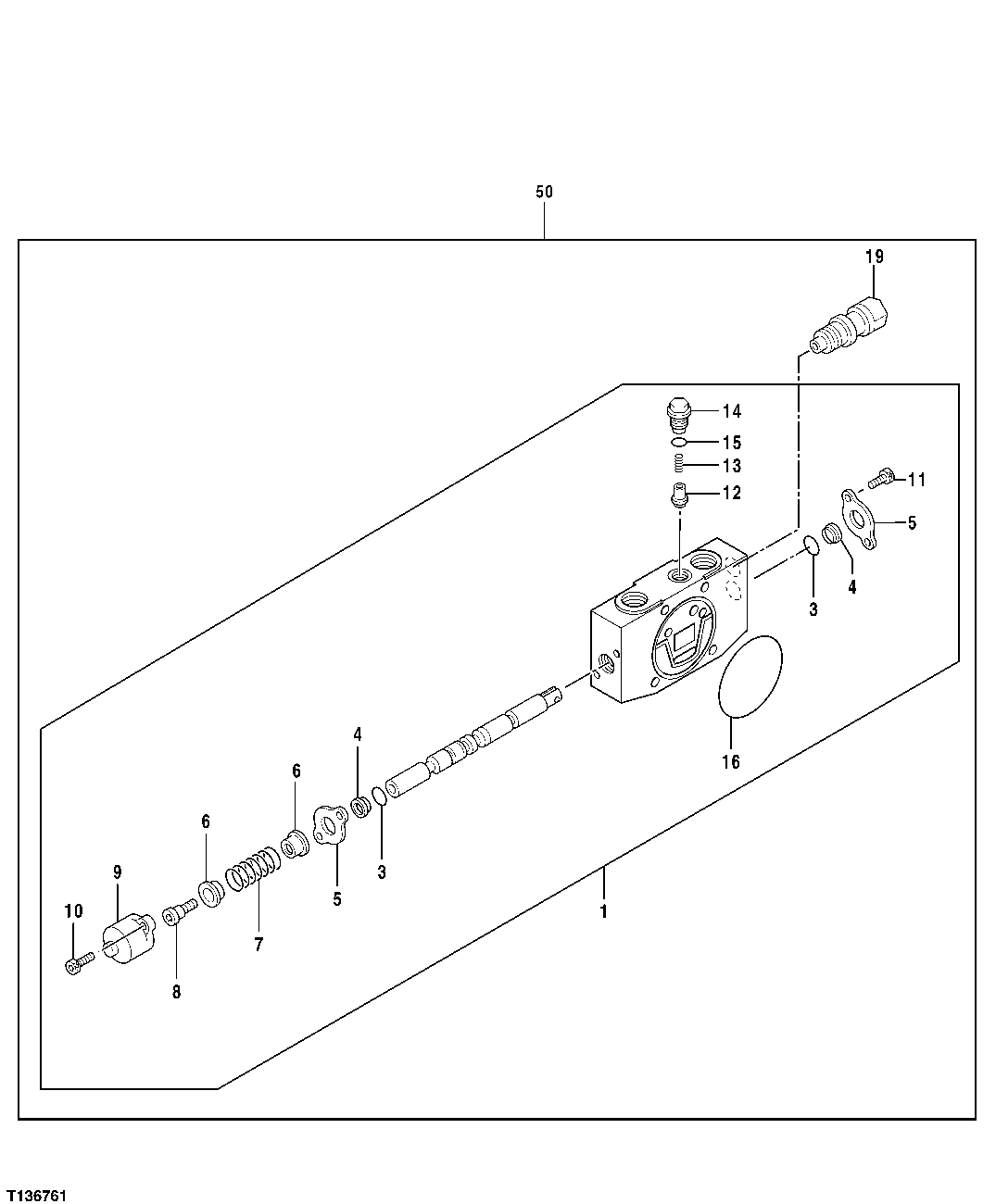

Запчасти John Deere 7ZTS 120 - Control Valve Boom Swing Spool Section 3362 CONTROL & LOAD HOLDING VALVES

1

0802201

Spool Valve

SUB FOR TH0802201

1шт.

3

CH10568

Packing

2шт.

4

0219011

Seal

SUB FOR TH106891

2шт.

5

0219008

Plate

SUB FOR TH106889

2шт.

6

0219005

Retainer

SUB FOR AT250462

2шт.

7

0219006

Spring

SUB FOR TH0219006

1шт.

8

0801902

Screw

SUB FOR TH0801902

1шт.

9

0801903

Cover

SUB FOR TH0801903

1шт.

10

0429306

Screw

SUB FOR AT250466

2шт.

11

21M7278

Screw

M5 X 10

2шт.

12

0801305

Poppet

SUB FOR TH0801305

1шт.

13

0801306

Spring

SUB FOR TH0801306

1шт.

14

0801307

Fitting Plug

SUB FOR TH0801307

1шт.

15

M800650

Packing

1шт.

16

0801203

O-Ring

SUB FOR TH0801203 OR 4S00620

1шт.

19

0801403

Pressure Relief Valve

SUB FOR TH0801403

1шт.

50

Shut-Off Valve

SUB FOR TH4438713, 4438713 NLA In cludes All Components On This Page and Previous and Following Pages

1шт.
