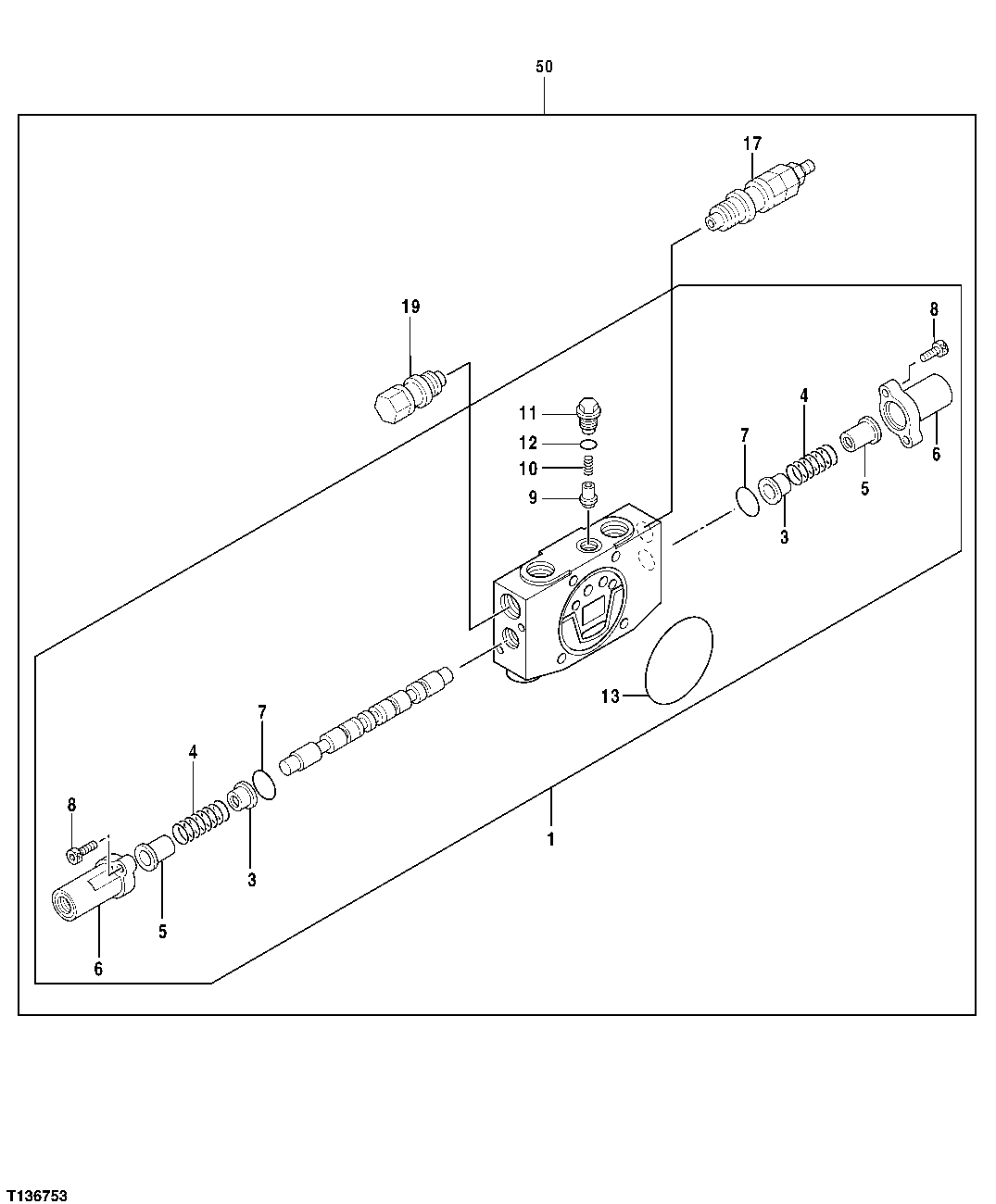

Запчасти John Deere 7ZTS 112 - Control Valve Boom Spool Section 3362 CONTROL & LOAD HOLDING VALVES

1

0801401

Spool Valve

SUB FOR TH0801401

1шт.

3

0429310

Guide

SUB FOR TH0429310

2шт.

4

0801302

Spring

SUB FOR TH0801302

2шт.

5

0801303

Guide

SUB FOR TH0801303

2шт.

6

0801304

Cover

SUB FOR TH0801304

2шт.

7

0429313

O-Ring

SUB FOR TH0429313

2шт.

8

0429314

Bolt

SUB FOR TH0429314

4шт.

9

0801305

Poppet

SUB FOR TH0801305

1шт.

10

0801306

Spring

SUB FOR TH0801306

1шт.

11

0801307

Fitting Plug

SUB FOR TH0801307

1шт.

12

M800650

Packing

1шт.

13

0801203

O-Ring

SUB FOR TH0801203 OR 4S00620

1шт.

17

4612361

Pressure Relief Valve

SUB FOR 0801402 OR TH0801402

1шт.

19

0801403

Pressure Relief Valve

SUB FOR TH0801403

1шт.

50

Shut-Off Valve

SUB FOR TH4438713, 4438713 NLA I ncludes All Components On This Pa ge and Previous and Following Pag e

1шт.
