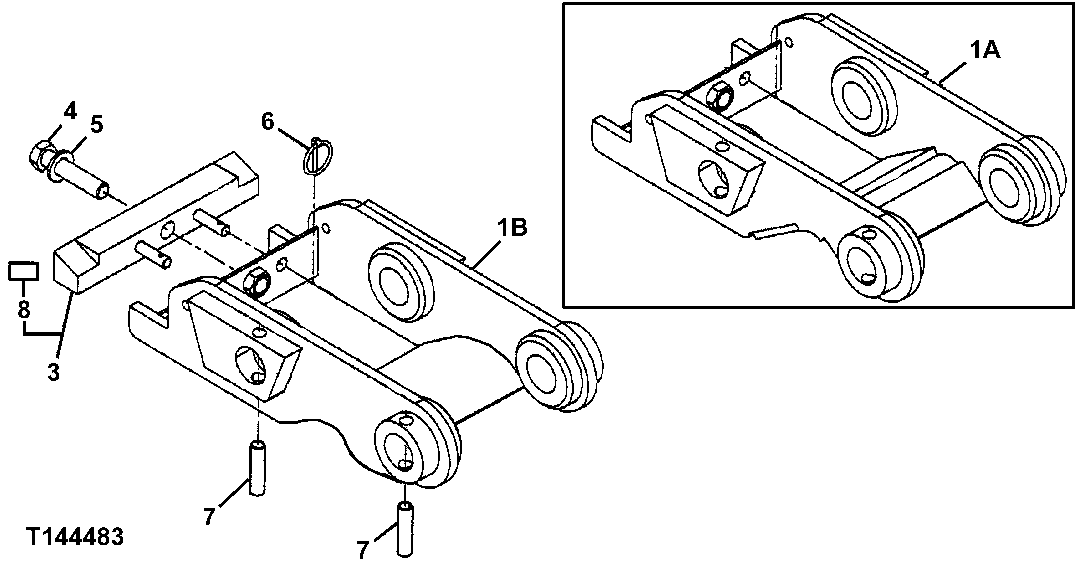

Запчасти John Deere 7ZTS 107 - QUICK COUPLER 3360 HYDRAULIC SYSTEM

1A

Quick Coupler

(SUB AT196228)( AT193672 NLA)

1шт.

1B

AT196228

Quick Coupler

1шт.

3

AT193673

Bar

(SUB FOR T137142)

1шт.

4

19H2969

Cap Screw

5/8" X 3-1/2"

1шт.

5

24H1360

Washer

5/8" X 1-15/32" X 0.105"

1шт.

6

M72598

Quick Lock Pin

2шт.

7

34H334

Spring Pin

5/16" X 2"

2шт.

8

T208596

Safety Sign

(SUB FOR T185672)

1шт.
