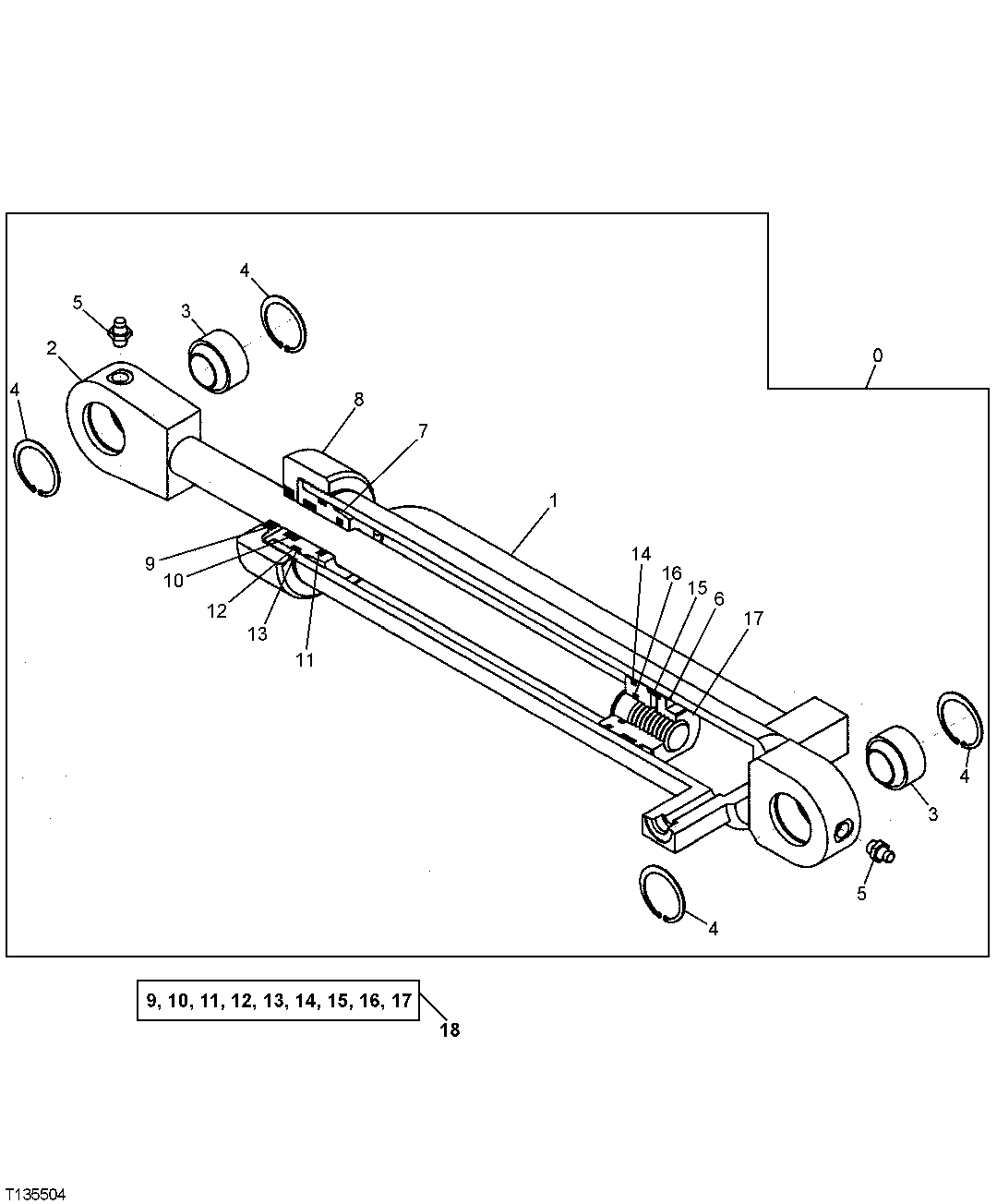

Запчасти John Deere 7ZTS 106 - BUCKET CLAMP CYLINDER (HIGH PRESSURE) 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

(SUB AH216690)( AT193681 NLA)

1шт.

1

Hydraulic Cylinder Barrel

1шт.

2

Rod

1шт.

3

AT193708

Bushing

2шт.

4

H35226

Snap Ring

4шт.

5

AT260410

Lubrication Fitting

2шт.

6

T186926

Piston

1шт.

7

T186928

Hydr. Cylinder Rod Guide

1шт.

8

T186929

Retainer

1шт.

9

T186930

Seal

1шт.

10

T186931

Seal

1шт.

11

T186932

Seal

1шт.

12

T186933

Back-Up Ring

1шт.

13

T78393

O-Ring

37.694 X 3.531 mm (1-31/64" X 0.139")

1шт.

14

T186934

Seal

1шт.

15

T186935

Seal

1шт.

16

T185250

O-Ring

1шт.

17

AT260415

Nut

2шт.

18

AT193709

Hydraulic Cylinder Kit

1шт.
