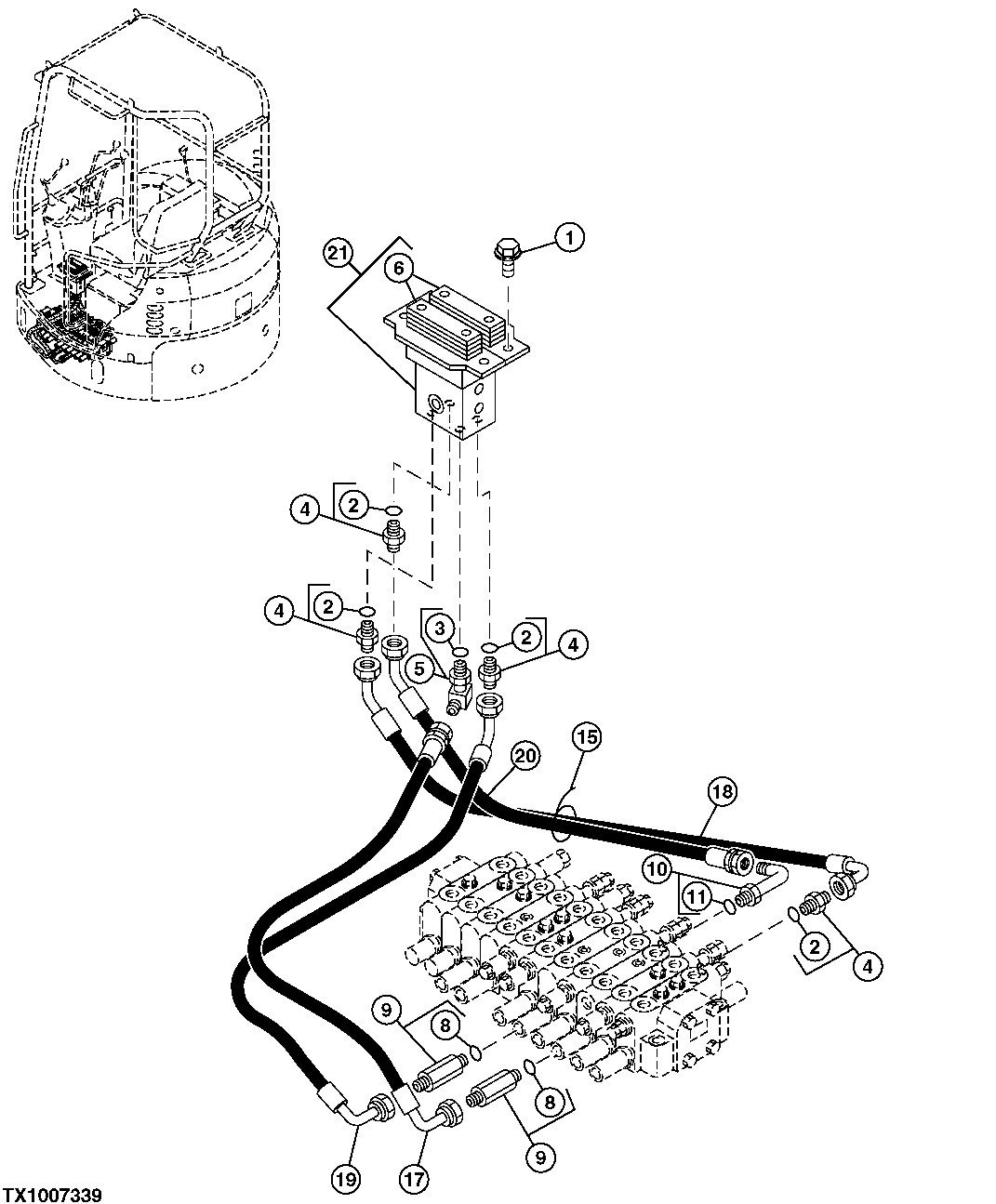

Запчасти John Deere 7ZTS 90 - TRAVEL LOCK 3315 CONTROLS LINKAGE

1

19M7662

Cap Screw

M10 X 30

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

2

M800650

Packing

1шт.

3

M800650

Packing

1шт.

4

4042030

Adapter Fitting

(SUB FOR TH105939)

4шт.

5

4434981

Elbow Fitting

(SUB FOR TH4434981)

1шт.

6

0757402

Boot

(SUB FOR 0757401)

2шт.

8

M800650

Packing

1шт.

9

4368208

Fitting

(SUB FOR TH4368208)

2шт.

10

4173021

Elbow Fitting

(SUB FOR TH4173021)

1шт.

11

M800650

Packing

1шт.

15

H77698

Tie Band

1шт.

17

TH4453412

Hydraulic Hose

1шт.

18

TH4453413

Hydraulic Hose

1шт.

19

TH4453414

Hydraulic Hose

1шт.

20

TH4453415

Hydraulic Hose

1шт.

21

4435449

Hydr./Pilot Control Valve

(SUB FOR TH4435449)

1шт.
