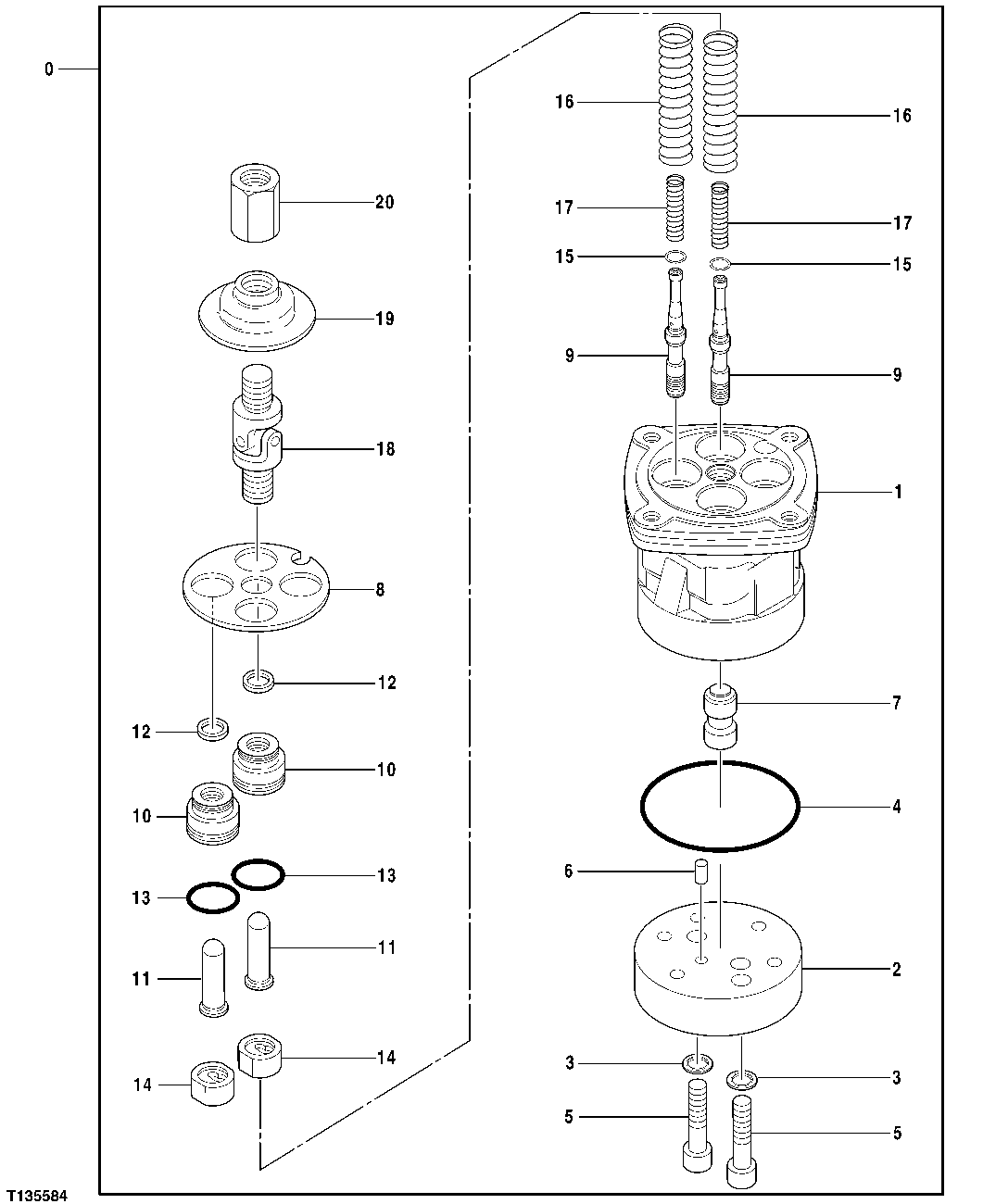

Запчасти John Deere 7ZTS 86 - PILOT VALVE (FRONT & SWING) 3315 CONTROLS LINKAGE

0

4627975

Hydr./Pilot Control Valve

(SUB FOR TH4438717, 4438717)

1шт.

1

Housing

1шт.

2

Plate

( TH0799901 NLA)

1шт.

3

0708402

Sealing Washer

(SUB FOR TH0708402)

2шт.

4

0799902

O-Ring

(SUB FOR TH0799902)

1шт.

5

Bolt

( TH0799903 NLA)

2шт.

6

34M7117

Spring Pin

5 X 10 mm

1шт.

7

Bushing

( TH0799904 NLA)

1шт.

8

Plate

( TH0799905 NLA)

1шт.

9

Spool

4шт.

10

Plug

( TH0629003 NLA)

4шт.

11

Rod

( TH0799906 NLA)

4шт.

12

0628908

Seal

(SUB FOR TH0628908)

4шт.

13

CH12329

Packing

4шт.

14

Plate

( TH0799907 NLA)

4шт.

15

Washer

( TH0428907 NLA)

4шт.

16

Spring

( TH0799908 NLA)

4шт.

17

Spring

( TH0799909 NLA)

4шт.

18

Universal Joint

( TH0799910 NLA)

1шт.

19

Plate

( TH0799911 NLA)

1шт.

20

Nut

( TH0799912 NLA)

1шт.
