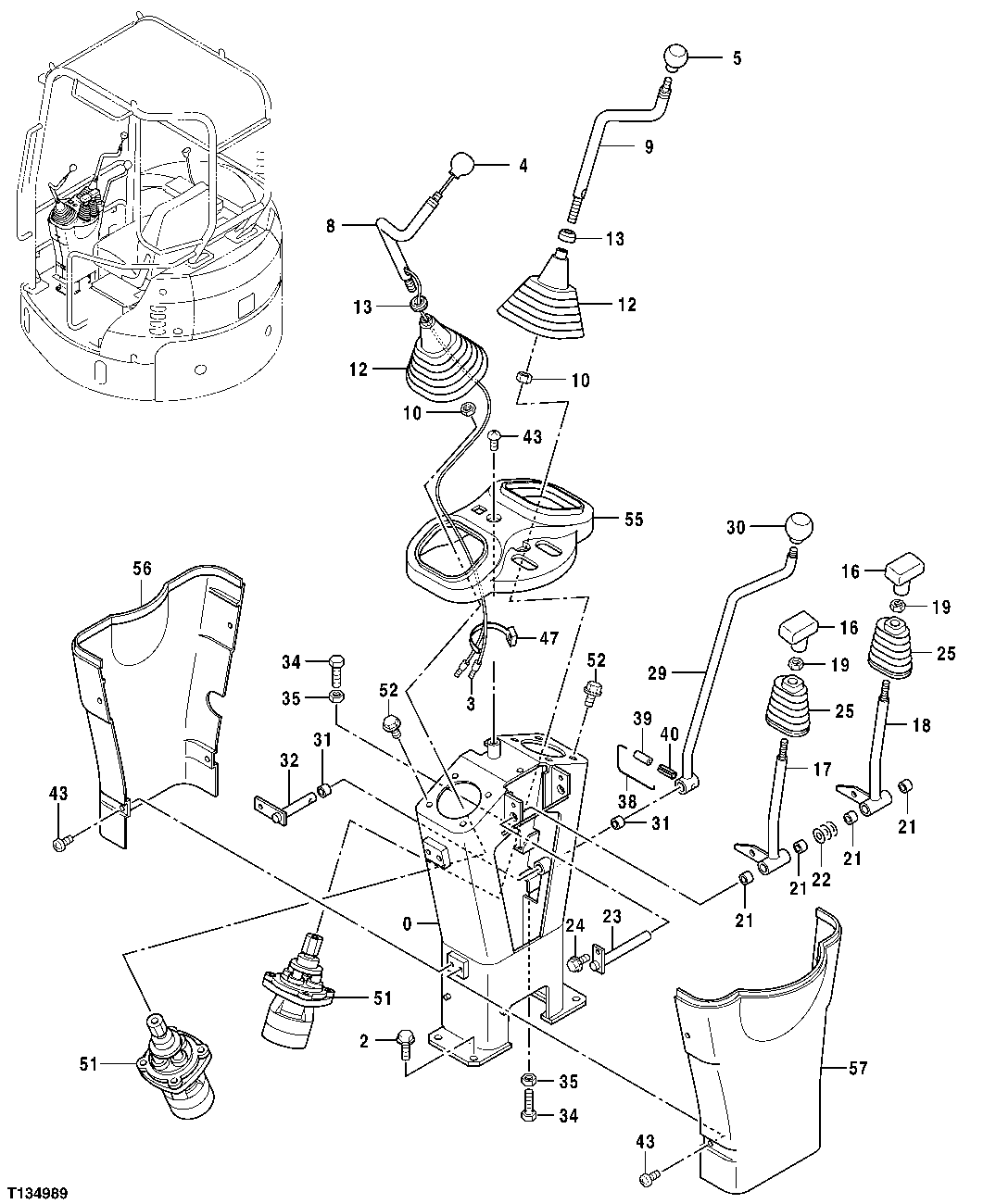

Запчасти John Deere 7ZTS 85 - LEVER STAND 3315 CONTROLS LINKAGE

0

6019365

Console

SUB FOR TH6019365

1шт.

2

19M7402

Cap Screw

M10 X 25

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

3

TH4313180

Terminal

2шт.

4

4340154

Grip

SUB FOR TH4340154

1шт.

5

4117704

Knob

SUB FOR TH100591

1шт.

8

7034891

Control Lever

SUB FOR TH7034891

1шт.

9

7034890

Control Lever

SUB FOR TH7034890

1шт.

10

14M7435

Nut

M14

2шт.

12

3069894

Boot

SUB FOR TH3069894

2шт.

13

4264107

Seal

SUB FOR TH4264107

2шт.

16

4417442

Grip

SUB FOR AT258399

2шт.

17

8080842

Control Lever

SUB FOR TH8080842

1шт.

18

8080843

Control Lever

SUB FOR TH8080843

1шт.

19

4417423

Nut

SUB FOR TH4417423

2шт.

21

4280301

Bushing

SUB FOR TH4280301

4шт.

22

4289754

Shim

SUB FOR TH4289754

3шт.

23

9750546

Shaft

SUB FOR TH9750546

1шт.

24

19M8425

Cap Screw

M6 X 16

1шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

1шт.

25

2042778

Boot

SUB FOR TH2042778

2шт.

29

8080919

Control Lever

SUB FOR TH8080919

1шт.

30

4117704

Knob

SUB FOR TH100591

1шт.

31

4280301

Bushing

SUB FOR TH4280301

2шт.

32

8080841

Shaft

SUB FOR TH8080841

1шт.

34

19M7933

Cap Screw

M6 X 25

2шт.

35

14M7272

Nut

M6

2шт.

38

4423475

Wire

SUB FOR TH4423475

1шт.

39

4213419

Spring Pin

SUB FOR TH111654

1шт.

40

34M7225

Spring Pin

8 X 28 mm SUB FOR 34M6402

1шт.

43

T108221

Screw

10шт.

47

R44302

Tie Band

SUB FOR TH4265540

5шт.

51

4627975

Hydr./Pilot Control Valve

SUB FOR TH4438717, 4438717

2шт.

52

19M7881

Screw

M8 X 20

8шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

8шт.

Washer

12M7065 NLA

8шт.

55

4451322

Cover

SUB FOR TH4451322

1шт.

56

4451323

Cover

SUB FOR TH4451323

1шт.

57

4451324

Cover

SUB FOR TH4451324

1шт.
