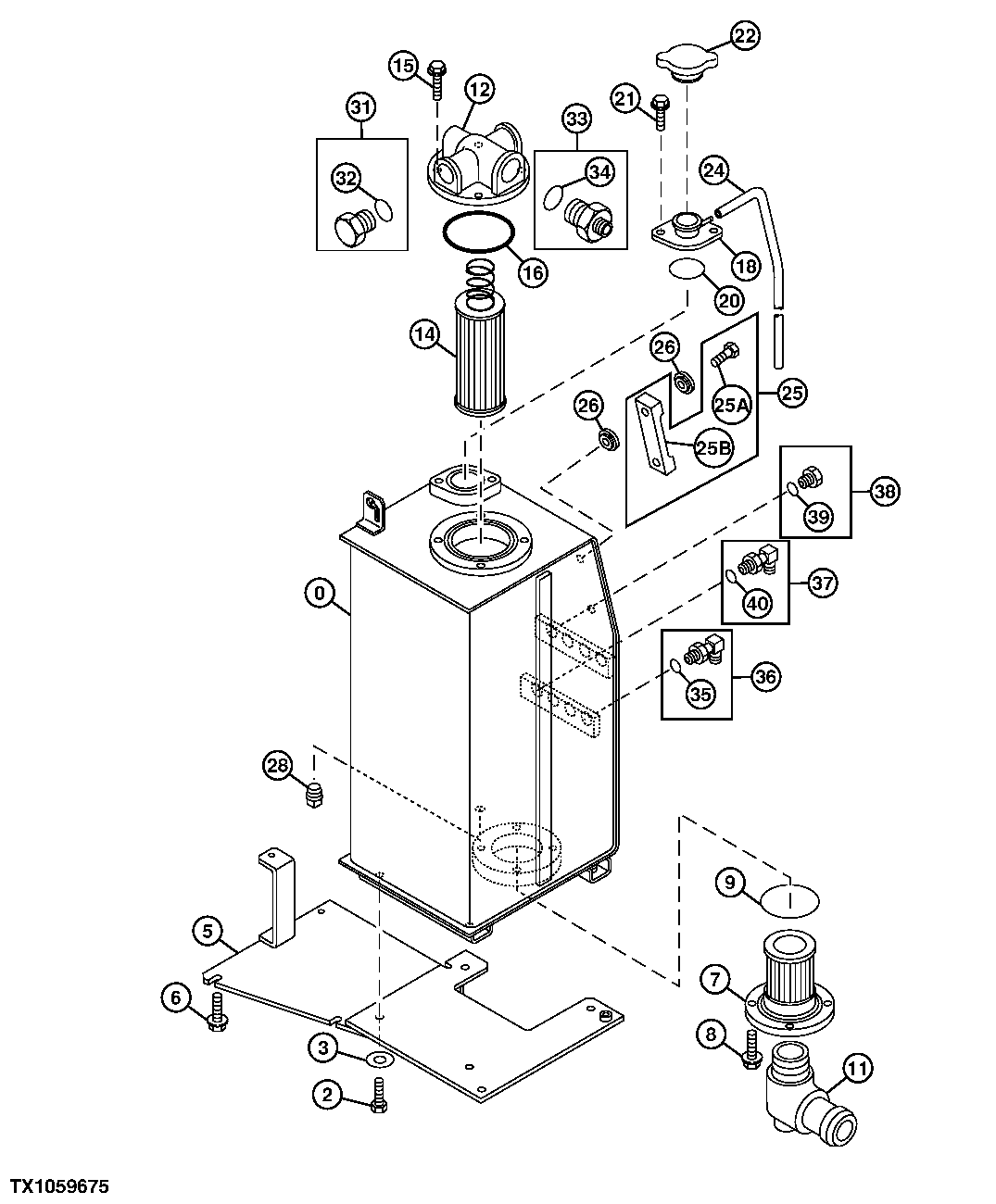

Запчасти John Deere 7ZTS 68 - OIL TANK 2164 HYDRAULIC RESERVOIR, FILTER & COOLER

0

6019456

Hydraulic Reservoir

SUB FOR TH6019456

1шт.

2

19M8011

Cap Screw

M12 X 30

4шт.

3

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

5

7039031

Bracket

SUB FOR TH7039031

1шт.

6

19M7872

Cap Screw

M12 X 25

6шт.

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

7

4294131

Filter

SUB FOR TH4272369

1шт.

8

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

9

AT264419

O-Ring

SUB FOR U46456 OR A810085

1шт.

11

4453534

Elbow Fitting

SUB FOR TH4453534

1шт.

12

4455415

Manifold

SUB FOR TH4455415

1шт.

14

4442446

Hydraulic Filter

SUB FOR TH4442446

1шт.

15

19M7662

Cap Screw

M10 X 30

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

16

T110443

O-Ring

1шт.

18

9753769

Cover

SUB FOR TH9753769

1шт.

20

CH17154

Packing

1шт.

21

19M7938

Cap Screw

M10 X 20

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

22

4272375

Filler Cap

SUB FOR AT251180

1шт.

24

Bulk Hose

SUB FOR TH4415429 AND R544 45, R120653 NLA, MF TY25139

1шт.

25

8050296

Level Gauge

SUB FOR AT251561

1шт.

25A

4100967

Bolt

2шт.

25B

Level Gauge

3118238 NLA

1шт.

26

449558

Washer

SUB FOR TH100675

4шт.

28

94-2023

Fitting Plug

SUB FOR TH100667

1шт.

31

A885008

Pipe Plug

SUB FOR 4113926 AND AT126200

1шт.

32

TH101926

O-Ring

1шт.

33

4403716

Fitting

SUB FOR TH4403716

1шт.

34

970860

O-Ring

SUB FOR TH104634

1шт.

35

CH11570

O-Ring

1шт.

36

4434984

Elbow Fitting

SUB FOR TH4434984

4шт.

37

4434982

Elbow Fitting

SUB FOR TH4434982

1шт.

38

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

3шт.

39

CH11570

O-Ring

1шт.

40

CH11570

O-Ring

1шт.
