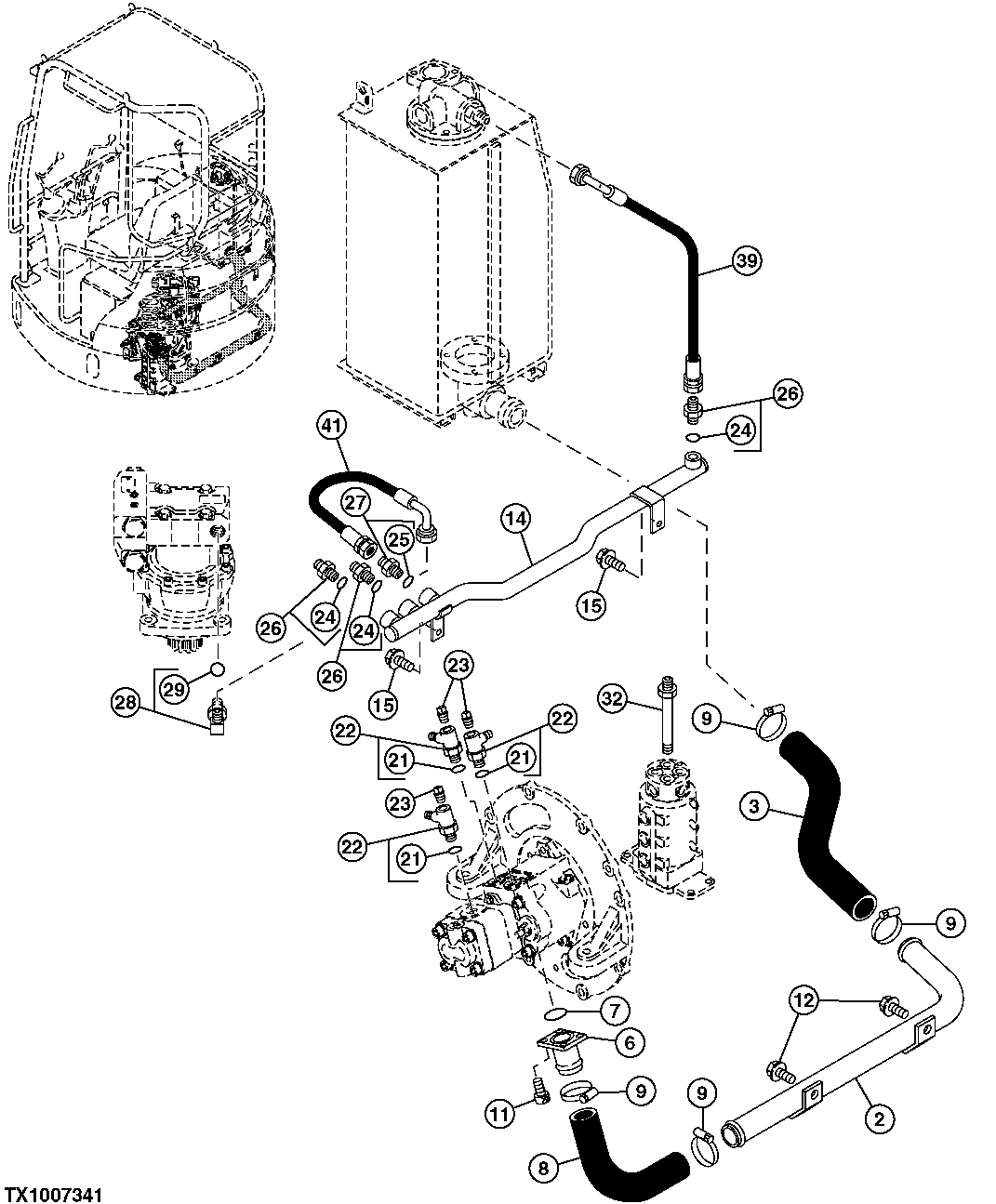

Запчасти John Deere 7ZTS 67 - OIL COOLER LINES 2163 HYD LINES AND HOSES

2

8081435

Oil Tube

SUB FOR TH8081435

1шт.

3

3090244

Hose

SUB FOR TH3090244

1шт.

6

9755317

Adapter Fitting

SUB FOR TH9755317

1шт.

7

AT264324

O-Ring

SUB FOR TH100044

1шт.

8

3091134

Hose

SUB FOR TH3091134

1шт.

9

TY22470

Clamp

SUB FOR AR65293

4шт.

11

19M7695

Screw

M10 X 20

4шт.

12

19M7938

Cap Screw

M10 X 20

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

8081278

Oil Tube

(SUB FOR TH8081278)(OIL TANK TO CONTROL VALVE)

1шт.

15

19M7866

Screw

M8 X 20 SUB FOR AT213603 OR J0508 20; ALSO ORDER 24M7036 AND 12M7065

2шт.

24M7036

Washer

9 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

21

CH11570

O-Ring

1шт.

22

4442093

Tee Fitting

SUB FOR TH4442093

3шт.

23

M800462

Plug

3шт.

24

4506418

O-Ring

SUB FOR U46489

1шт.

25

4506418

O-Ring

SUB FOR U46489

1шт.

26

4042032

Adapter Fitting

SUB FOR TH101294

3шт.

27

4368204

Adapter Fitting

SUB FOR AT251299

1шт.

28

4434982

Elbow Fitting

SUB FOR TH4434982

1шт.

29

CH11570

O-Ring

1шт.

32

4442456

Adapter Fitting

SUB FOR TH4442456

1шт.

39

4451267

Hydraulic Hose

SUB FOR TH4451267

1шт.

41

4451270

Hydraulic Hose

SUB FOR TH4451270

1шт.
