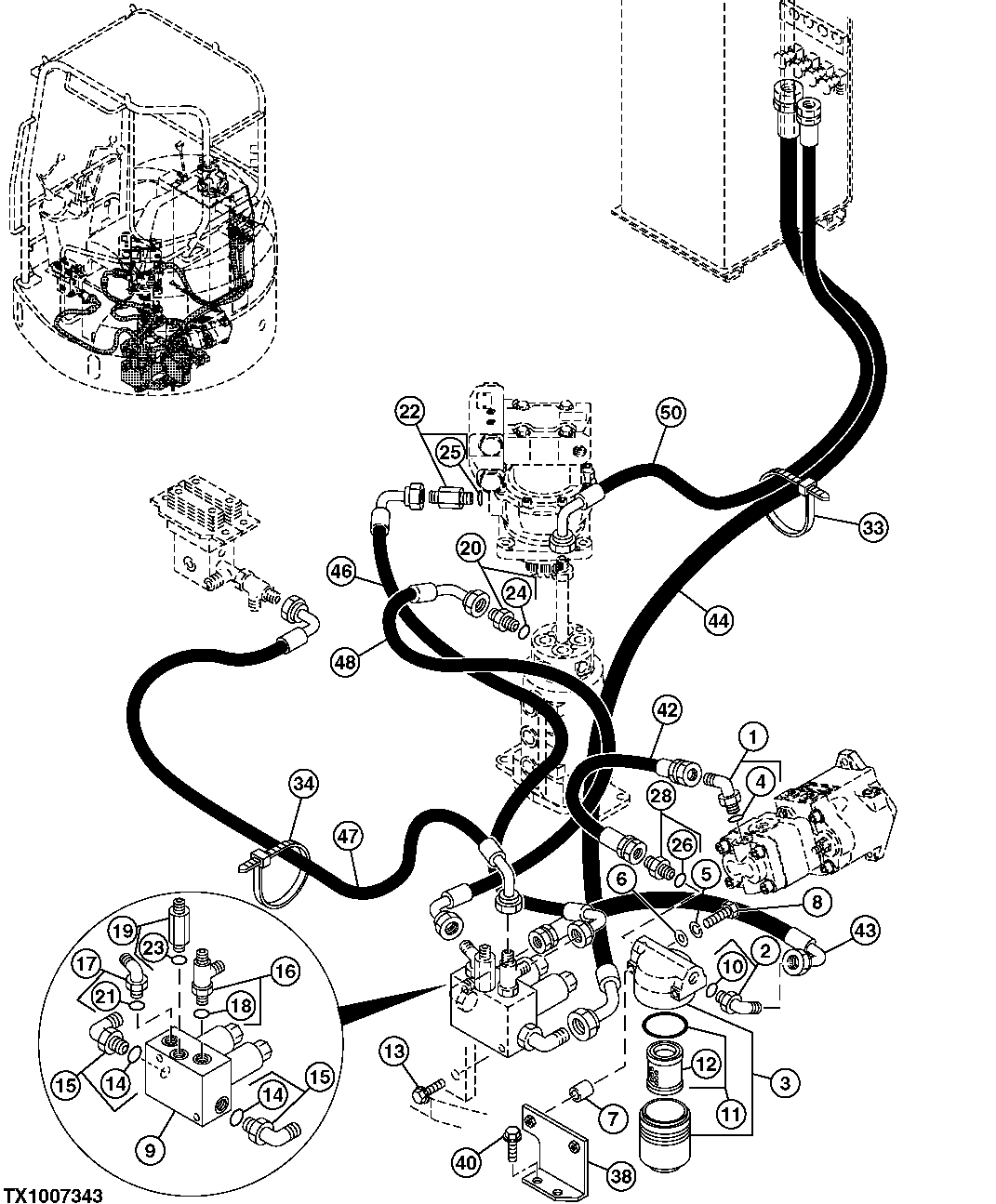

Запчасти John Deere 7ZTS 65 - PILOT LINES 2163 HYD LINES AND HOSES

1

4434982

Elbow Fitting

(SUB FOR TH4434982)

1шт.

2

4434985

Elbow Fitting

(SUB FOR TH4434985)

1шт.

3

4272379

Filter

(SUB FOR AT251181)

1шт.

4

CH11570

O-Ring

1шт.

5

12M7006

Lock Washer

6 mm

2шт.

6

12M7054

Lock Washer

19 mm

2шт.

7

4277425

Spacer

(SUB FOR AT251189)

2шт.

8

19M9402

Cap Screw

M6 X 80 (SUB FOR J960680)

2шт.

9

4615209

Solenoid Valve

(SUB FOR 4415398)

1шт.

10

4506418

O-Ring

(SUB FOR TH4506418)

1шт.

11

4294130

Filter Element

(SUB FOR AT251210)

1шт.

12

Filter Element

TH4294129 NLA

1шт.

13

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

CH11570

O-Ring

1шт.

15

4434982

Elbow Fitting

(SUB FOR TH4434982)

2шт.

16

4406156

Tee Fitting

(SUB FOR AT251451)

1шт.

17

4434981

Elbow Fitting

(SUB FOR TH4434981)

1шт.

18

M800650

Packing

1шт.

19

4368208

Fitting

(SUB FOR TH4368208)

1шт.

20

4042030

Adapter Fitting

(SUB FOR TH105939)

1шт.

21

M800650

Packing

1шт.

22

4368208

Fitting

(SUB FOR TH4368208)

1шт.

23

M800650

Packing

1шт.

24

M800650

Packing

1шт.

25

M800650

Packing

1шт.

26

4506418

O-Ring

(SUB FOR U46489)

1шт.

28

4368204

Adapter Fitting

(SUB FOR AT251299)

1шт.

33

H77698

Tie Band

(SUB FOR M88199)

1шт.

34

H77698

Tie Band

1шт.

38

9756152

Bracket

(SUB FOR TH9756152)

1шт.

40

19M7938

Cap Screw

M10 X 20

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

42

4451847

Hydraulic Hose

(SUB FOR TH4451847)

1шт.

43

4451289

Hydraulic Hose

(SUB FOR TH4451289)

1шт.

44

4451290

Hydraulic Hose

(SUB FOR TH4451290)

1шт.

46

4451291

Hydraulic Hose

(SUB FOR TH4451291)

1шт.

47

4451294

Hydraulic Hose

(SUB FOR TH4451294)

1шт.

48

4451295

Hydraulic Hose

(SUB FOR TH4451295)

1шт.

50

4451272

Hydraulic Hose

(SUB FOR TH4451272)

1шт.
