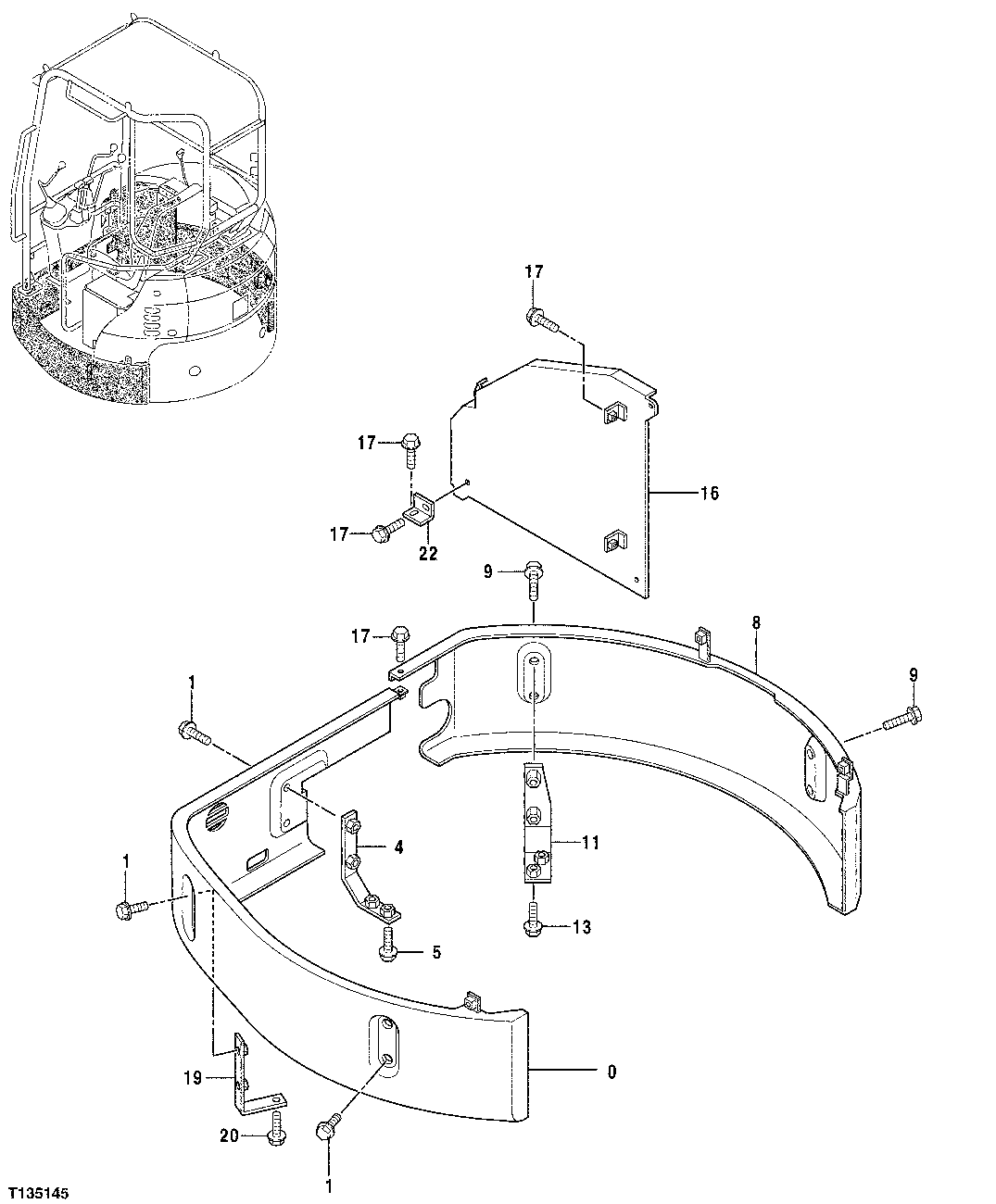

Запчасти John Deere 7ZTS 58 - COVER 1910 HOOD OR ENGINE ENCLOSURE

0

7039051J

Cover

SUB FOR 7039051

1шт.

1

19M7402

Cap Screw

M10 X 25

6шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

6шт.

12M7066

Lock Washer

10 mm

6шт.

4

9755401

Bracket

SUB FOR TH9755401

1шт.

5

19M7358

Cap Screw

M10 X 40

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

8

7039058J

Cover

SUB FOR 7039058

1шт.

9

19M7402

Cap Screw

M10 X 25

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

11

9755447

Bracket

SUB FOR TH9755447

1шт.

13

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

16

7038995

Cover

SUB FOR TH7038995

1шт.

17

19M7881

Screw

M8 X 20

5шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

5шт.

Washer

12M7065 NLA

5шт.

19

9755999

Bracket

SUB FOR TH9755999

1шт.

20

19M7402

Cap Screw

M10 X 25

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

22

4451654

Bracket

SUB FOR TH4451654

1шт.
