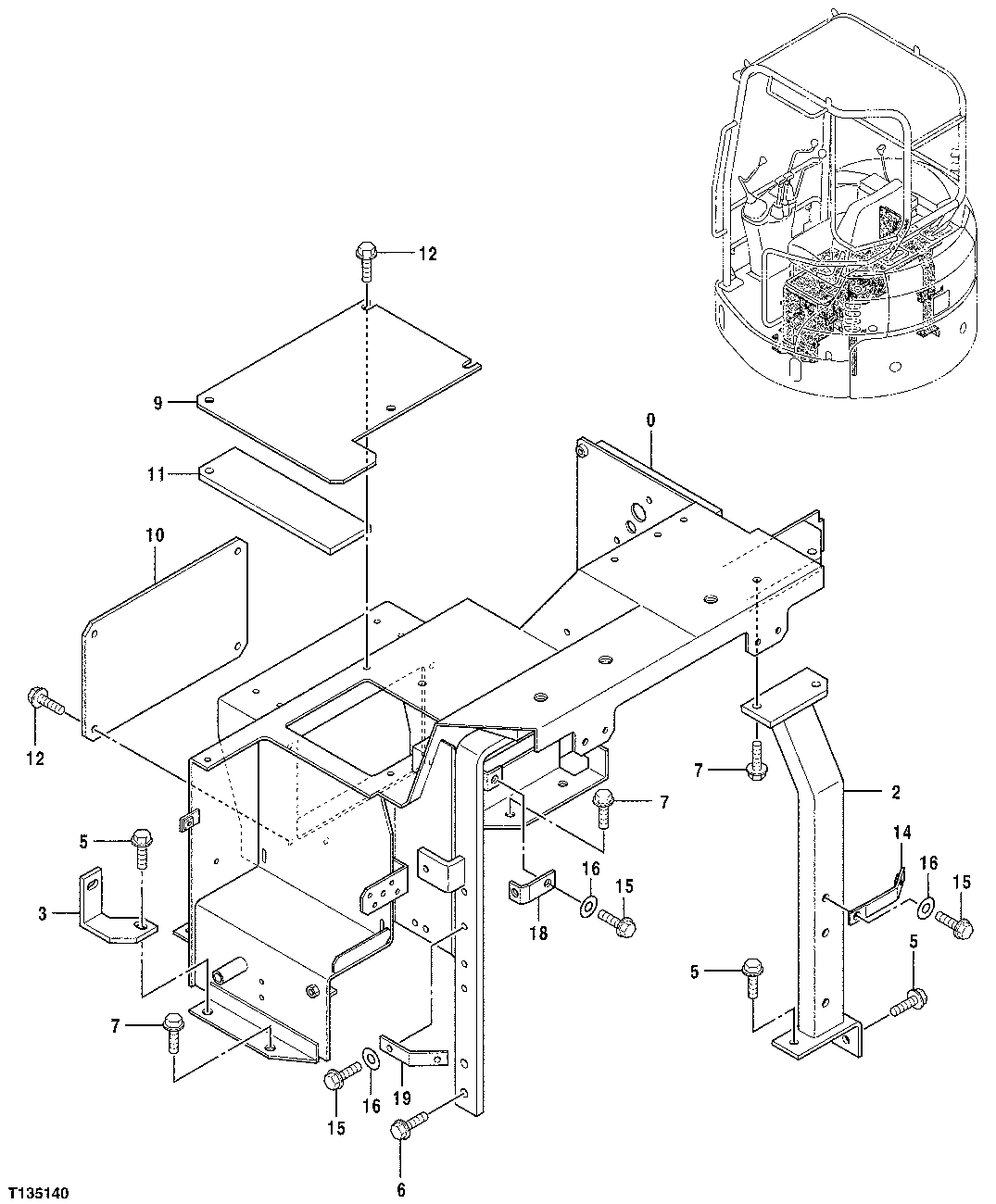

Запчасти John Deere 7ZTS 56 - SEAT STAND 1821 SEAT AND SEAT BELT

0

6019412

Support

SUB FOR TH6019412

1шт.

2

8082607

Bracket

SUB FOR TH8082607

1шт.

3

4454858

Bracket

SUB FOR TH4454858

1шт.

5

19M7403

Cap Screw

M12 X 35

3шт.

24M7044

Washer

13 X 20 X 2 mm

3шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

3шт.

6

19M7496

Cap Screw

M12 X 45

2шт.

24M7044

Washer

13 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

7

19M8011

Cap Screw

M12 X 30

5шт.

24M7044

Washer

13 X 20 X 2 mm

5шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

5шт.

9

4441210

Cover

SUB FOR TH4441210

1шт.

10

4441595

Cover

SUB FOR TH4441595

1шт.

11

4454486

Isolator

SUB FOR TH4454486

1шт.

12

19M7881

Screw

M8 X 20

8шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

8шт.

Washer

12M7065 NLA

8шт.

14

9756123

Bracket

SUB FOR TH9756123

1шт.

15

19M7407

Cap Screw

M8 X 25

3шт.

Washer

12M7065 NLA

3шт.

16

4346037

Washer

SUB FOR AT250610

3шт.

18

9756682

Bracket

SUB FOR TH9756682

1шт.

19

9756679

Bracket

SUB FOR TH9756679

1шт.
