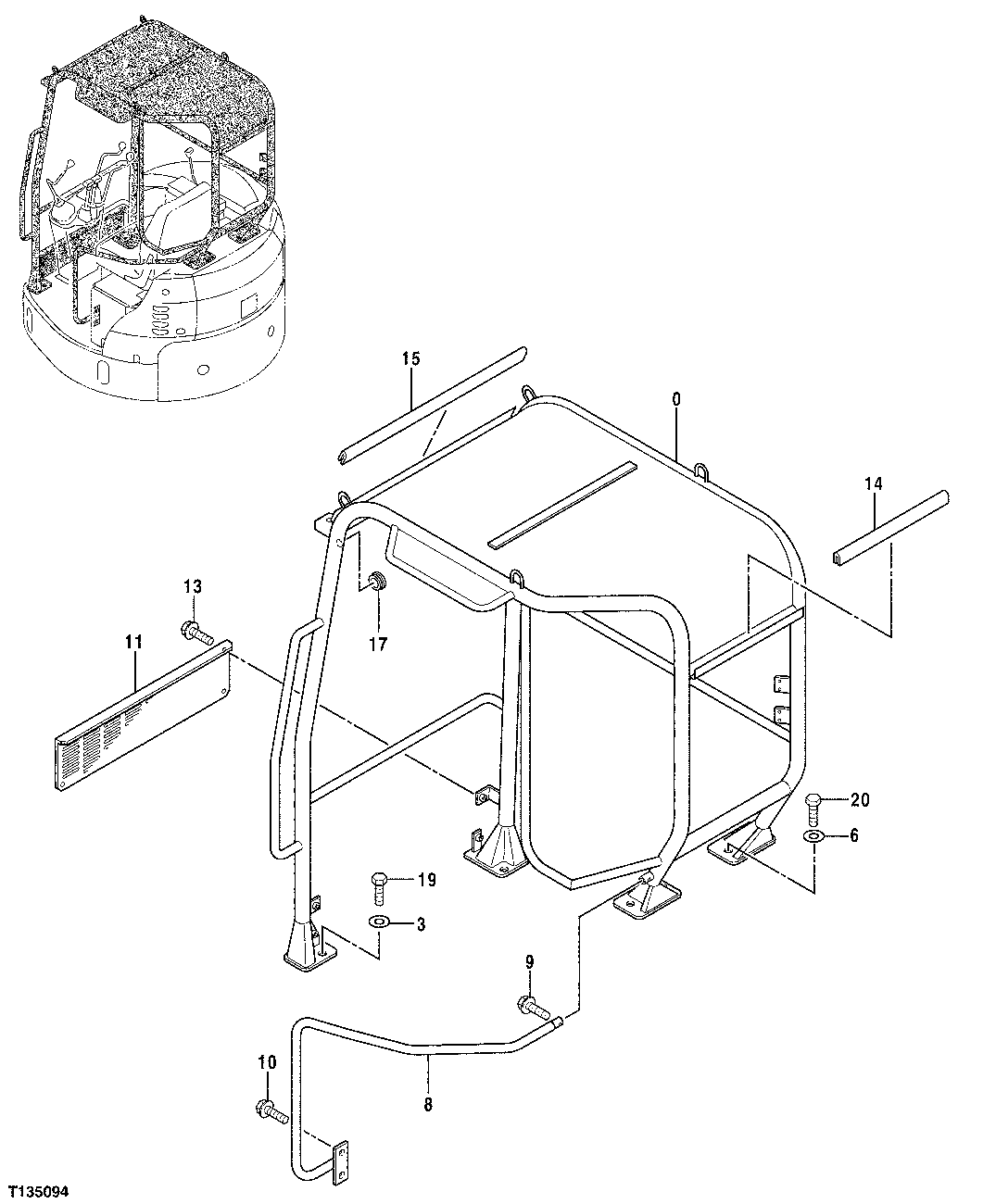

Запчасти John Deere 7ZTS 53 - CANOPY 1811 ROPS OR BODY

0

6020597

Canopy

SUB FOR TH6019439, TH6020597

1шт.

3

24M7053

Washer

17 X 30 X 3 mm

2шт.

6

24M7053

Washer

17 X 30 X 3 mm

3шт.

8

8081186

Handrail

SUB FOR TH8081186

1шт.

9

19M7881

Screw

M8 X 20

1шт.

Washer

12M7065 NLA

1шт.

10

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

11

3090414

Guard

SUB FOR TH3090414

1шт.

13

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

14

4441531

Isolator

SUB FOR TH4441531

1шт.

15

4441530

Isolator

SUB FOR TH4441530

1шт.

17

4207699

Bushing

SUB FOR AT121399

1шт.

19

19M7489

Cap Screw

M16 X 45

2шт.

20

19M7489

Cap Screw

M16 X 45

3шт.
