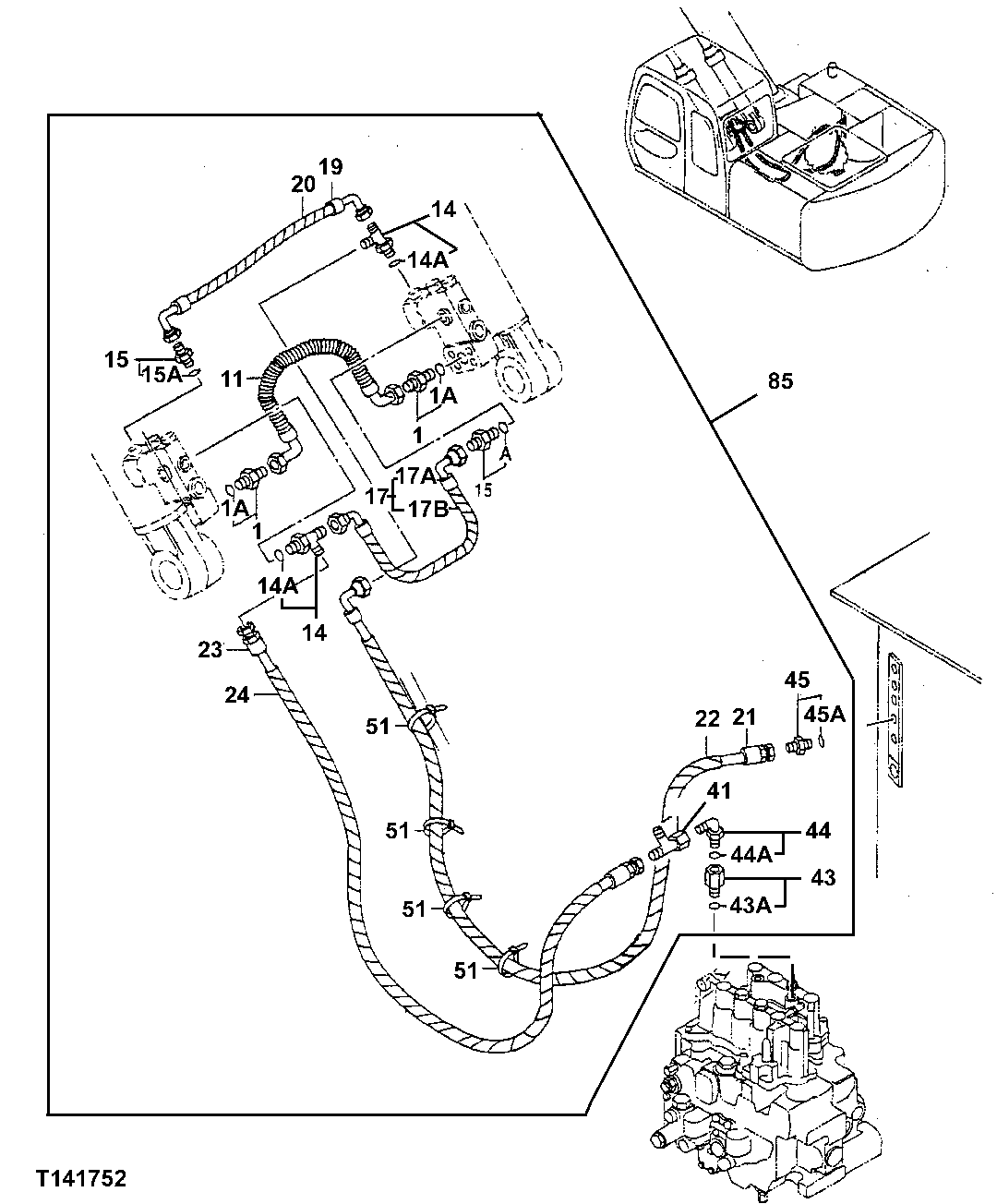

Запчасти John Deere 60LC 319 - Load Lowering Valve 3360 Hydraulic System

1

AT318014

Elbow Fitting

SUB FOR 4156434, TH108328

2шт.

1A

M800650

Packing

1шт.

11

AT172345

Hydraulic Hose

11.1252" X 400 mm (15-3/4") X 11.1252"

1шт.

14

4205363

Tee Fitting

SUB FOR AT126362

2шт.

14A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

15A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

17

Hydraulic Hose - Fabricate

AT191562 NLA

1шт.

17A

Hydraulic Hose - Fabricate

AT172346 NLA

1шт.

17B

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

1шт.

19

Hydraulic Hose - Fabricate

AT191626 NLA

1шт.

20

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

1шт.

21

AT191565

Hydraulic Hose

1шт.

22

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

5шт.

23

AT339065

Hydraulic Hose

17.4752" X 800 mm (31-1/2") X 17.4752" SUB FOR AT191567

1шт.

24

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

5шт.

41

4246672

Tee Fitting

SUB FOR AT200991

1шт.

43

4202564

Adapter Fitting

SUB FOR AT215879

1шт.

43A

M800650

Packing

1шт.

44

4156434

Elbow Fitting

SUB FOR TH101930

1шт.

44A

M800650

Packing

1шт.

45

4261938

Fitting

SUB FOR AT154285

1шт.

45A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

61

H77698

Tie Band

4шт.

85

Kit

AT191552 NLA (WHOLE GOODS) (LOAD LOWERI NG VALVE KIT) (DOES NOT INLUDED CYLINDERS ) Contains All Items On This Page - Addit ional Components Listed On Separate Pages

1шт.
