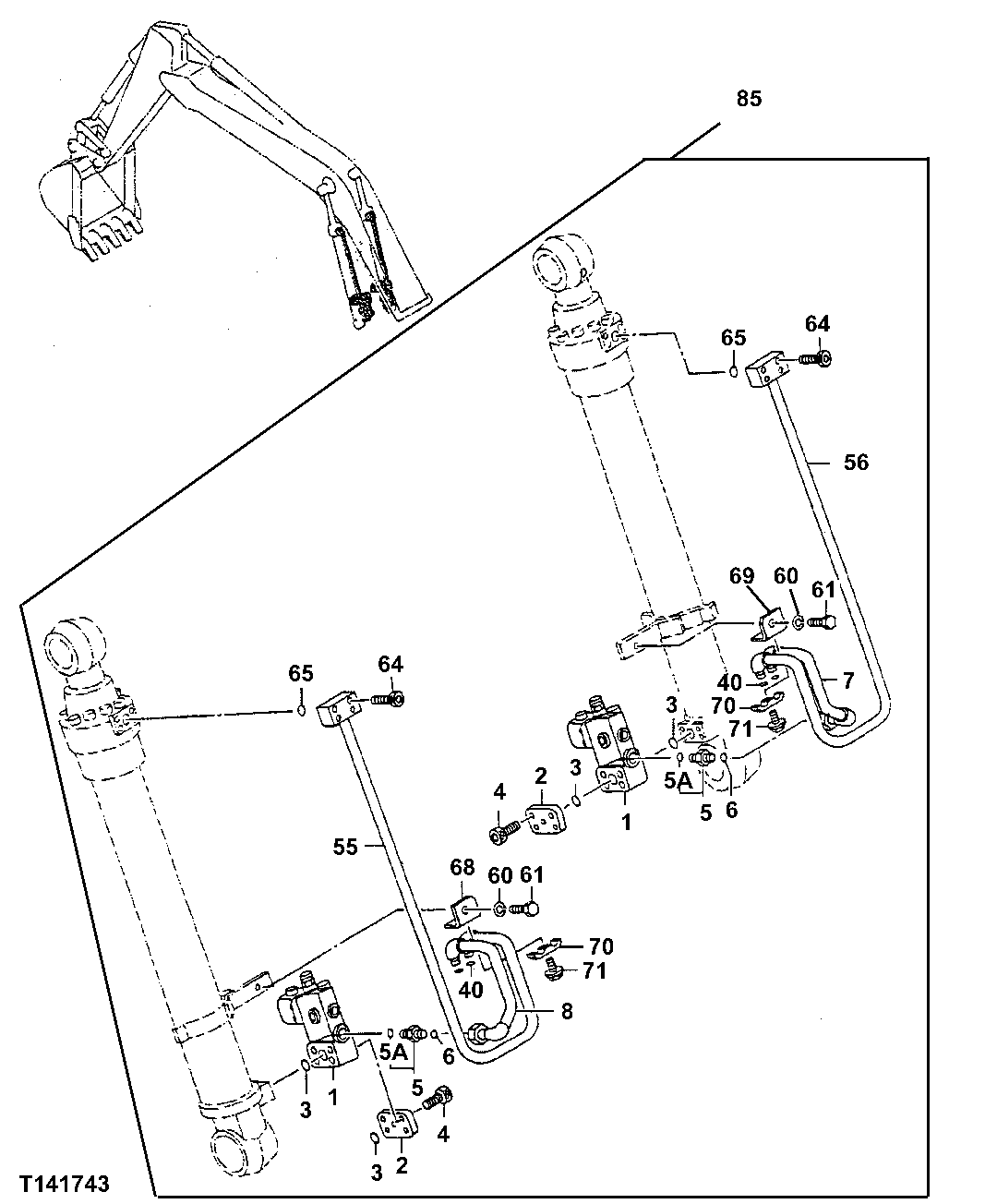

Запчасти John Deere 60LC 318 - Controlled Load Lowering Device Kit (Boom) 3360 Hydraulic System

1

4345286

Flow Control Hyd. Valve

SUB FOR AT179148 Holding Valve

2шт.

2

4293167

Flange

SUB FOR AT172336

2шт.

3

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") SUB FOR TH101300

4шт.

4

M341095

Bolt

SUB FOR AT172341

8шт.

5

4189601

Adapter Fitting

SUB FOR AT107394

2шт.

5A

R27149

O-Ring

23.393 X 3.531 mm (0.921" X 0.139")

1шт.

6

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

7

Line

8070138 NLA; SUB FOR AT191560

1шт.

8

Line

8070142 NLA; SUB FOR AT191561

1шт.

40

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

55

Line

8070140 NLA; SUB FOR AT191604

1шт.

56

Line

8070141 NLA; SUB FOR AT191605

1шт.

60

12H317

Lock Washer

9/16"

2шт.

61

19M6332

Cap Screw

M14 X 35

2шт.

64

19M8954

Screw

M10 X 60

8шт.

65

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") SUB FOR TH101300

2шт.

68

Bracket

9749138 NLA; SUB FOR AT191606

1шт.

69

Bracket

9749139 NLA; SUB FOR AT191607

1шт.

70

Clamp

4285723 NLA; ORDER 4189859 Rubber

2шт.

4189859

Clamp

Steel

2шт.

71

19M7363

Cap Screw

M12 X 60

2шт.

85

Kit

AT191552 NLA; LOAD LOWERING VALVE KIT, DOES NOT INLUDED CYLINDERS Whole Goods Contains All Items On This Page - Additi onal Components Listed On Separate Pages

1шт.
