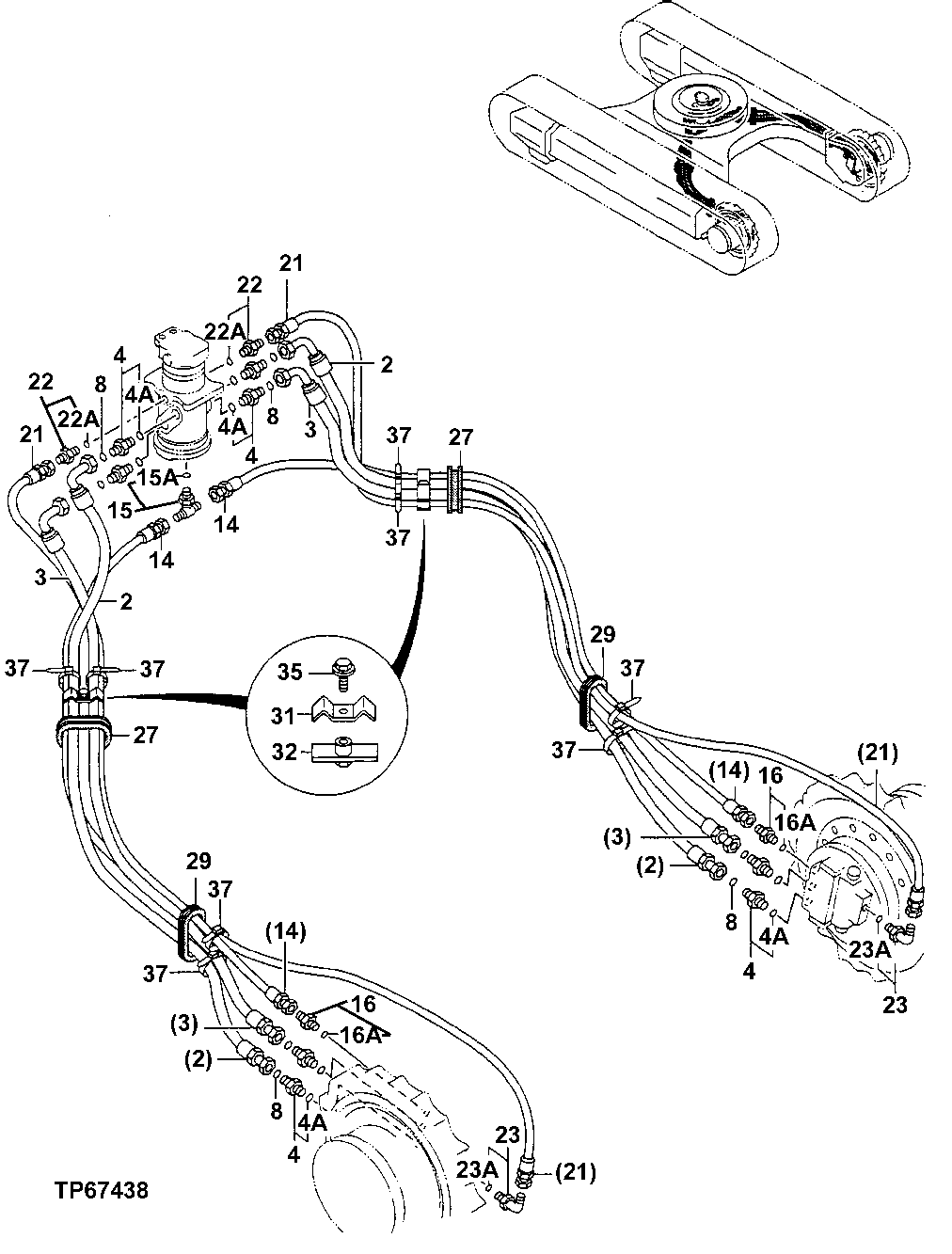

Запчасти John Deere 60LC 24 - Travel Device Hydraulic Lines 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

2

4294428

Hose

(SUB FOR AP34735 ) (SUB FOR AP34734, APPL)

2шт.

3

4294428

Hose

(SUB FOR AP34735)

2шт.

4

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

8шт.

4A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

8

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

14

AP34732

Hydraulic Hose

2шт.

15

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

15A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

16

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

2шт.

16A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

21

AP34730

Hydraulic Hose

2шт.

22

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

22A

M800650

Packing

1шт.

23

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

23A

M800650

Packing

1шт.

27

4276337

Bushing

(SUB FOR P64835)

2шт.

29

4376360

Bushing

(SUB FOR P64836)

2шт.

31

4202103

Clamp

(SUB FOR TH108302)

2шт.

32

9727822

Clamp

(SUB FOR TH109556)

2шт.

35

19M7361

Cap Screw

M12 X 50

2шт.

12H301

Lock Washer

1/2"

2шт.

37

H77698

Tie Band

8шт.
