Запчасти John Deere 60LC 314 - Electric Solenoid Valve Kit 3360 Hydraulic System

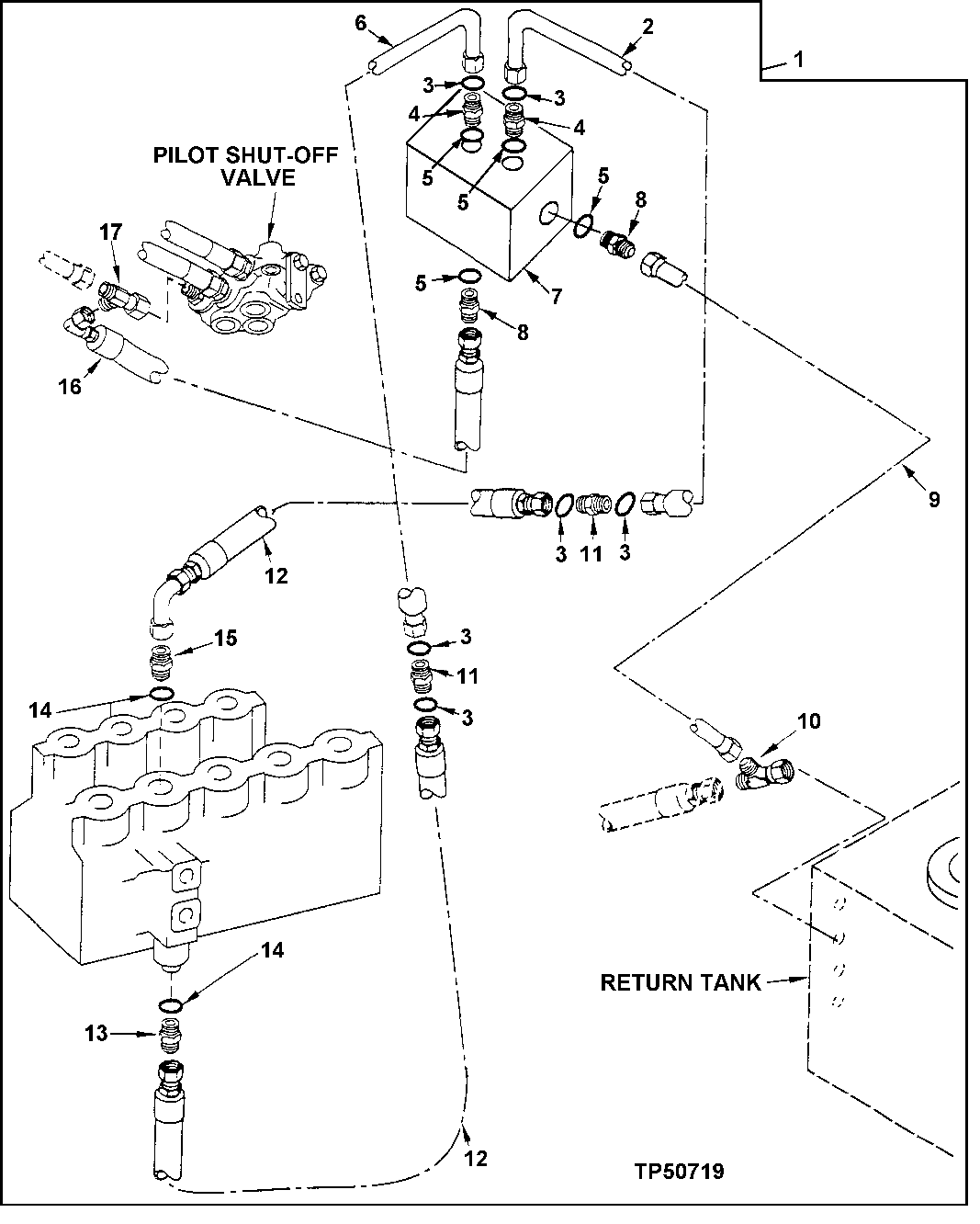

Схема запчастей John Deere 60LC - 314 - Electric Solenoid Valve Kit 3360 Hydraulic System

Артикул

Название

Примечание

Количество

1

Kit

(ALSO ORDER (1) AT136392, (1) AT137356 , (2) AT160348, (2) 38H1030, (4) T77613 , (2) R26448) (WHOLE GOODS) (WHEN PRESS URE SWITCH KIT AT179452 IS INSTALLED ( AT180467 NLA)) Electric Solenoid Valve

1шт.

2

AT133590

Hydraulic Hose

17.4752" X 405 mm (16") X 17.4752"

1шт.

3

T77613

O-Ring

9.250 X 1.780 mm (0.364" X 0.070")

6шт.

4

38H1160

Adapter Fitting

2шт.

5

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

6

AT168209

Hydraulic Hose

17.4752" X 1066 mm (42") X 17.4752"

1шт.

7

AT180585

Solenoid Valve

1шт.

AT139433

Electrical Coil

2шт.

8

R27212

Fitting

2шт.

9

AT71732

Hydraulic Hose

9/16" X 1422 mm (56") X 9/16"

1шт.

10

4200466

Adapter Fitting

(110, 200LC, 230LC AND 270LC APPL ICATIONS ONLY) (SUB FOR TH108320)

1шт.

AT36921

Tee Fitting

(120 AND 160LC APPLICATIONS ONLY)

1шт.

11

38H1278

Union Fitting

2шт.

12

AT152138

Hydraulic Hose

9/16" X 515 mm (20-1/4") X 17.4752"

2шт.

13

AT131445

Adapter Fitting

1шт.

14

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

15

AT130053

Adapter Fitting

1шт.

16

AT130684

Hydraulic Hose

9/16" X 2520 mm (99-1/4") X 9/16"

1шт.

17

AT36921

Tee Fitting

1шт.

18

14M7272

Nut

M6 Solenoid Valve Not Illustrated

2шт.

19

19M7529

Cap Screw

M6 X 55 Solenoid Valve Not Illustrated

2шт.

Выбрано товаров: 21
