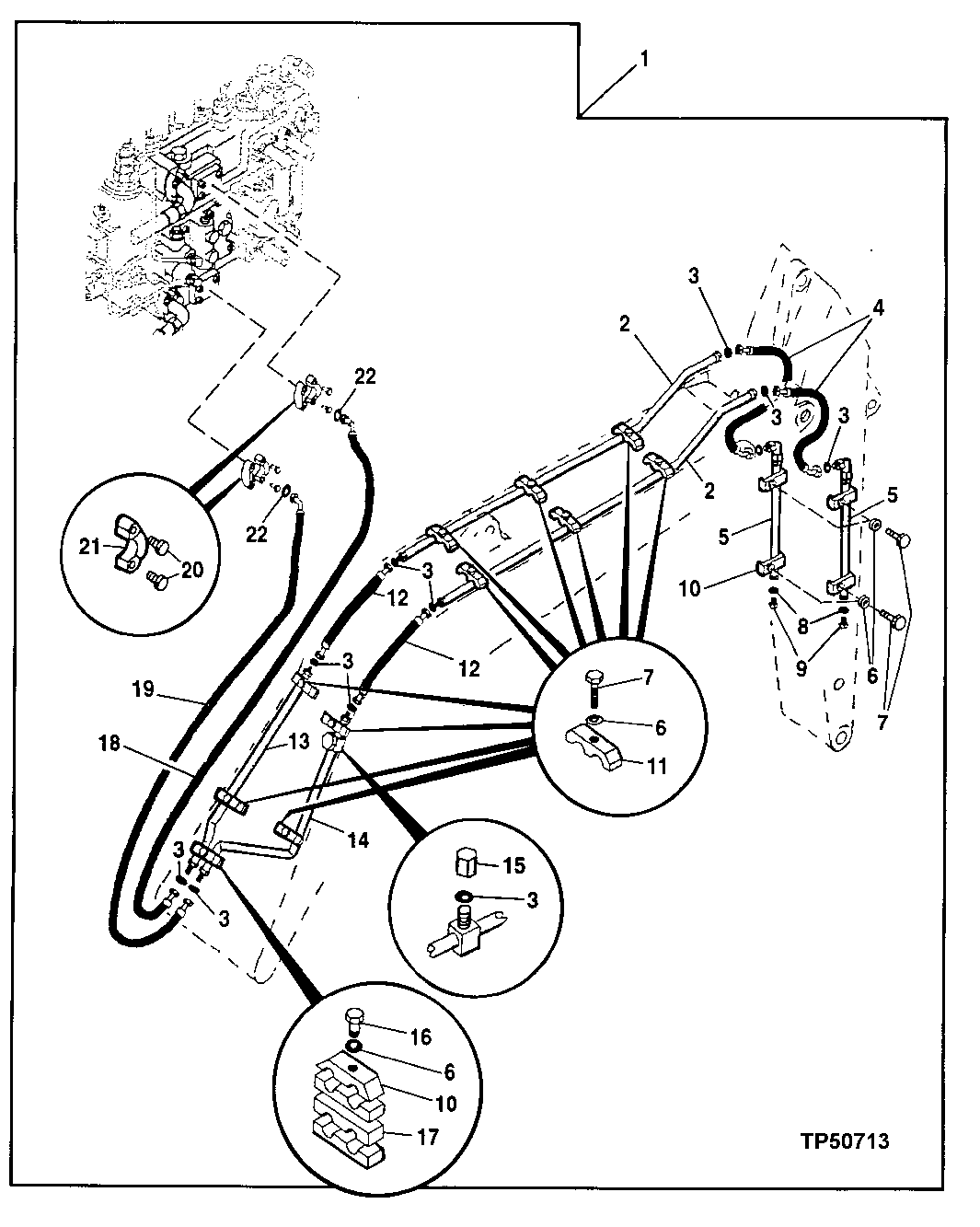

Запчасти John Deere 60LC 311 - Boom Auxiliary Hydraulic Lines 3360 Hydraulic System

1

Kit

Auxiliary Hydraulic Hoses and Lines Kit Whole Goods INCLUDES (2) AT155692; AT1 82001 NLA Relief Valves Not Illustrated

1шт.

2

AT160159

Oil Tube

FRONT BOOM, AUXILIARY

2шт.

3

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

11шт.

4

AT160176

Hydraulic Hose

FOR USE WITH 2.6M ARM

2шт.

AP35235

Hydraulic Hose

Hydraulic FOR USE WITH 3.1M ARM

2шт.

5

AT160177

Oil Tube

2шт.

6

12H301

Lock Washer

1/2" JDS 12 MEDIUM SPRING

15шт.

7

19M7363

Cap Screw

M12 X 60

14шт.

8

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

2шт.

9

38H1150

Fitting Plug

O-RING, FSF

2шт.

10

4190126

Clamp

SUB FOR TH109830

4шт.

11

Clamp

4285723 NLA; ORDER 4189859 Rubber

11шт.

4189859

Clamp

Steel

11шт.

12

AT160161

Hydraulic Hose

30.1752" X 1295 mm (51") X 30.1752" Boom Knee Auxiliary

2шт.

13

AP35230

Pipe

Pressure Left

1шт.

14

AP35231

Pipe

Pressure Right

1шт.

15

38H1418

Fitting

Flat Face Fitting

1шт.

16

19M7908

Cap Screw

M12 X 110 SUB FOR 19M7943

1шт.

17

AT318021

Clamp

SUB FOR 4285722 OR AT155739

1шт.

18

AP35233

Hose

Pressure

1шт.

19

AP35234

Hydraulic Hose

Return

1шт.

20

19M8337

Screw

M10 X 30

8шт.

21

R29424

Flange Fitting

SPLIT, HALF CLAMP

4шт.

22

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.
