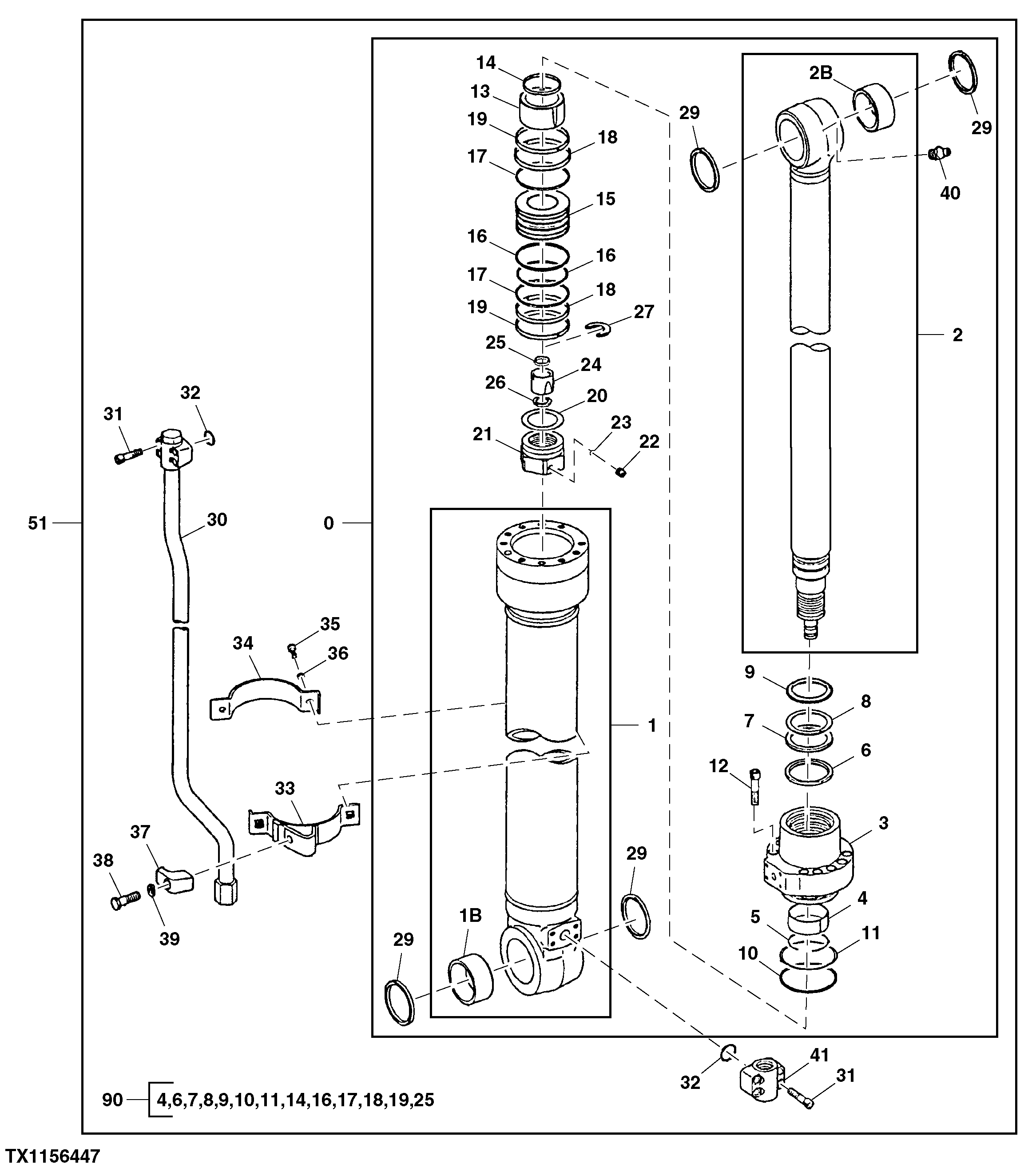

Запчасти John Deere 60LC 306 - Arm Cylinder 3360 Hydraulic System

0

AH155022

Hydraulic Cylinder

(USE UNTIL EXHAUSTED)

1шт.

1

AH155023

Hydraulic Cylinder Barrel

1шт.

1B

0140808

Bushing

(SUB FOR TH104905)

1шт.

2

AH155024

Hydraulic Cylinder Rod

1шт.

2B

0140808

Bushing

(SUB FOR TH104905)

1шт.

3

H161604

Hydr. Cylinder Rod Guide

1шт.

4

AT264272

Bushing

(A) (SUB FOR T108019, AT154778, 4272960)

1шт.

5

TH104944

Snap Ring

(SUB FOR 0208304)

1шт.

6

AH148786

Seal

(A)

1шт.

7

H227912

Seal

(A) (SUB FOR TH104952 , 4S00173 OR AT309613)

1шт.

8

AT309614

Back-Up Ring

(A) (SUB FOR TH104953, 4S00174)

1шт.

9

H155911

Seal

(A)

1шт.

10

AT264320

O-Ring

(A) 109.400 X 3.100 mm (4.30 7" X 0.122") (SUB FOR T110448)

1шт.

11

TH109353

Back-Up Ring

(A) 110 X 115 X 1.500 mm (4.331" X 4.528" X 0.059")

1шт.

12

19M8931

Screw

M16 X 75

10шт.

13

H155920

Ring

1шт.

14

H155919

Seal

(A)

1шт.

15

H161605

Piston

1шт.

16

TH105767

Ring

(A) Set Of Two

1шт.

17

H163431

Back-Up Ring

(A)

2шт.

18

H163432

Scraper Ring

(A)

2шт.

19

TH109357

Ring

(A) (SUB FOR AT309610)

2шт.

20

T108030

Shim

(SUB FOR 0309013)

1шт.

21

H155924

Nut

1шт.

22

22M7009

Set Screw

M12 X 12

1шт.

23

T13624

Ball

7.145 mm (9/32")

1шт.

24

H155321

Spacer

1шт.

25

H155322

Seal

(A)

1шт.

26

H155329

Ring

2шт.

27

H163222

Snap Ring

1шт.

29

TH104472

Seal

(SUB FOR AH140157, APPL)

4шт.

30

AH234898

Oil Line

(SUB FOR AH155026)

1шт.

31

19M8213

Screw

M10 X 50

8шт.

32

AT264360

O-Ring

(SUB FOR TH104930, 4506430)

2шт.

33

AH156744

Clamp

1шт.

34

H163434

Band

1шт.

35

19M7550

Cap Screw

M10 X 35

2шт.

36

12M7066

Lock Washer

10 mm

2шт.

37

H238070

Clamp

(SUB FOR T108036)

1шт.

38

19M7362

Cap Screw

M12 X 55

1шт.

39

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

40

TH100074

Lubrication Fitting

1шт.

41

Universal Joint

(SUB FOR AT153943)( 0409016 NLA)

1шт.

0796601

Universal Joint

(ALSO ORDER A853166, 19M7662, AND 12M7066)

1шт.

42

A853166

Adapter Fitting

Not Illustrated

1шт.

43

19M7662

Cap Screw

M10 X 30 Not Illustrated

4шт.

44

12M7066

Lock Washer

10 mm Not Illustrated

4шт.

51

AH154071

Hydraulic Cylinder

1шт.

90

AH155025

Hydraulic Cylinder Kit

Includes All Parts Marked (A)

1шт.
