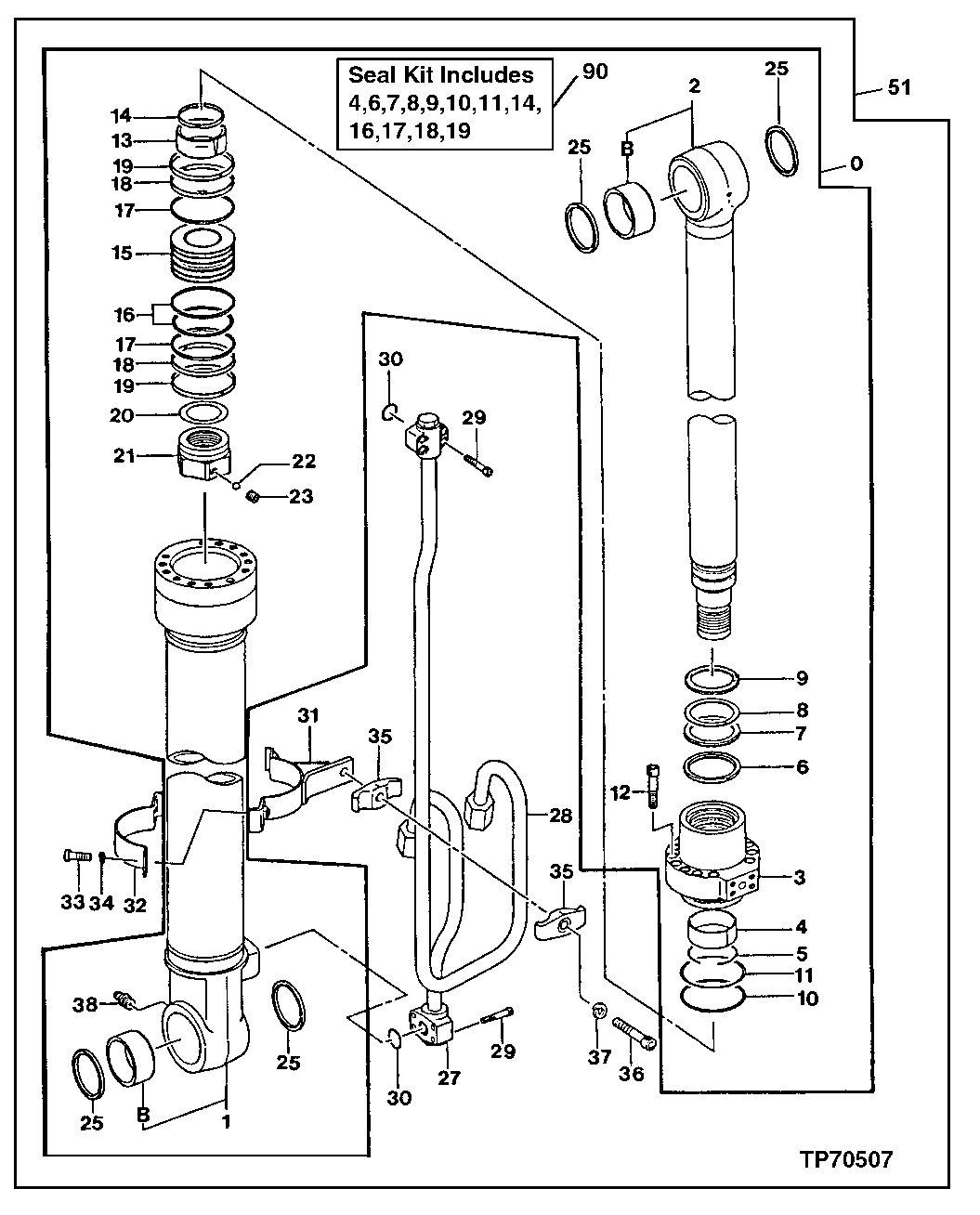

Запчасти John Deere 60LC 305 - Left Boom Cylinder 3360 Hydraulic System

0

AH155042

Hydraulic Cylinder

USE UNTIL EXHAUSTED

1шт.

1

AH155043

Hydraulic Cylinder Barrel

1шт.

1B

H161952

Bushing

1шт.

2

AH155044

Hydraulic Cylinder Rod

1шт.

2B

0208326-P

Bushing

SUB FOR T108029

1шт.

3

H155195

Hydr. Cylinder Rod Guide

1шт.

4

AT264314

Wear Ring

SUB FOR T108041

1шт.

5

AT132690

Snap Ring

SUB FOR 4004663

1шт.

6

AT264261

Ring

SUB FOR 0409004 OR AT153931

1шт.

7

AT264357

Seal

SUB FOR TH104925

1шт.

8

AT264358

Back-Up Ring

SUB FOR TH104926

1шт.

9

H157235

Seal

1шт.

10

AT264223

O-Ring

SUB FOR AT121852 OR A811105

1шт.

11

AT264259

Back-Up Ring

SUB FOR AT153829

1шт.

12

19M8930

Screw

M14 X 65

12шт.

13

0409005

Bearing

SUB FOR AT153932

1шт.

14

H157237

Seal

1шт.

15

H155876

Piston

1шт.

16

AT264386

Ring

SUB FOR TH106872 OR 0240915 Set Of Two

1шт.

17

AT264262

Back-Up Ring

SUB FOR 0409008 OR AT153935

2шт.

18

H155873

Back-Up Ring

2шт.

19

0298907

Ring

SUB FOR 4S00156

2шт.

20

AT153937

Shim

SUB FOR 0409010

1шт.

21

H155879

Nut

1шт.

22

T13624

Ball

7.145 mm (9/32")

1шт.

23

22M7009

Set Screw

M12 X 12

1шт.

25

TH102446

Seal

SUB FOR AH140158, APPL

4шт.

27

AH155046

Oil Line

1шт.

28

AH155047

Oil Line

1шт.

29

19M8213

Screw

M10 X 50

8шт.

30

AT264360

O-Ring

SUB FOR TH104930 OR 4506430

2шт.

31

AH156760

Clamp

1шт.

32

H163453

Band

1шт.

33

19M7550

Cap Screw

M10 X 35

2шт.

34

12M7066

Lock Washer

10 mm

2шт.

35

0236915J

Half Clamp

SUB FOR TH102783 OR 0236915

2шт.

36

19M7607

Cap Screw

M14 X 80

1шт.

37

12M7068

Lock Washer

14 mm

1шт.

38

TH100074

Lubrication Fitting

1шт.

51

AH154073

Hydraulic Cylinder

1шт.

90

AH155045

Hydraulic Cylinder Kit

Seal Kit

1шт.
