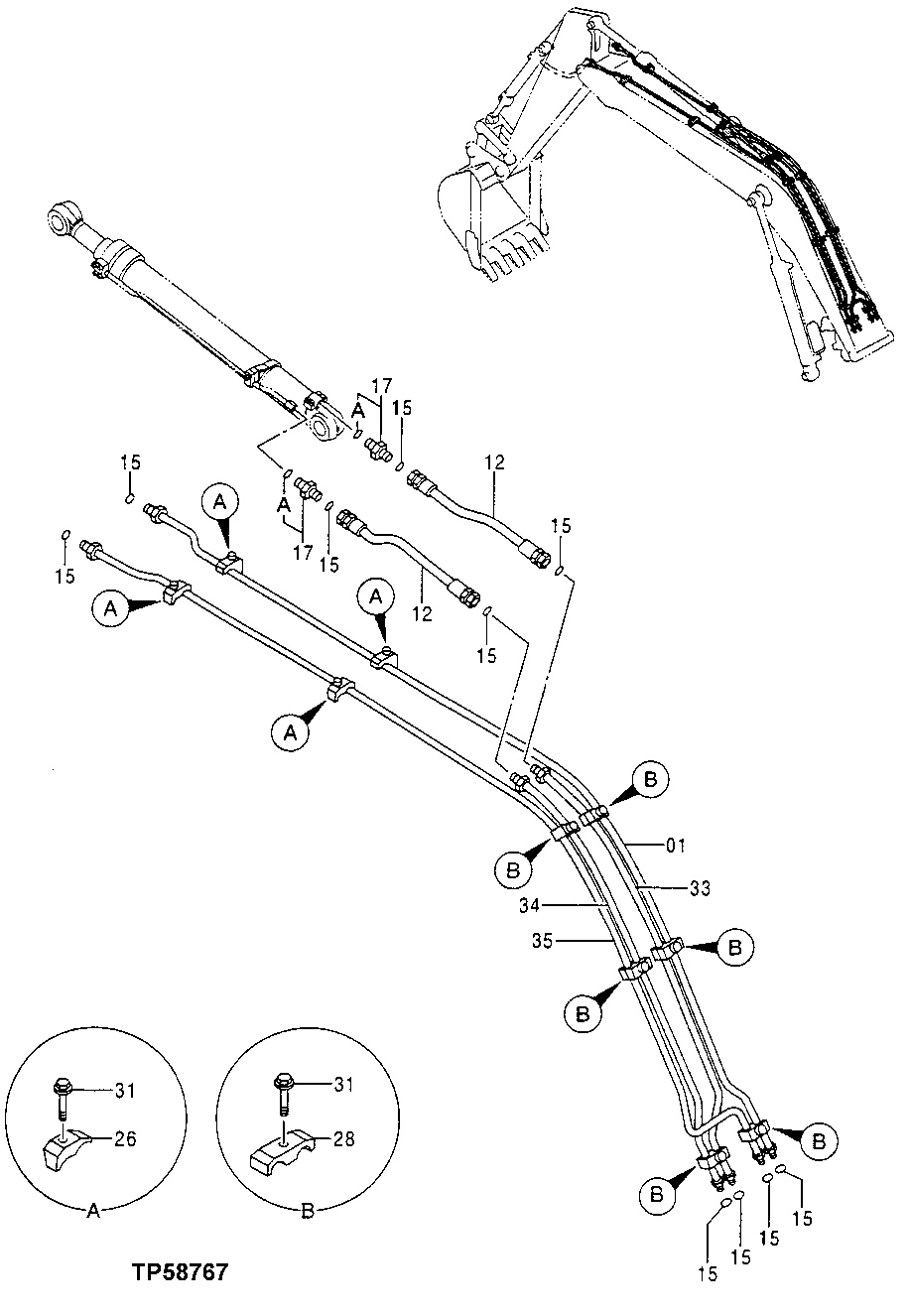

Запчасти John Deere 60LC 303 - Front Lines 3360 Hydraulic System

1

AP35008

Line

1шт.

12

4384989

Hydraulic Hose

SUB FOR AP35010

2шт.

15

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

10шт.

17

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

2шт.

17A

R27149

O-Ring

23.393 X 3.531 mm (0.921" X 0.139")

1шт.

26

4190126

Clamp

SUB FOR TH109830

4шт.

28

Clamp

4285723 NLA; ORDER 4189859 Rubber

6шт.

4189859

Clamp

Steel

6шт.

31

19M7363

Cap Screw

M12 X 60

10шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

10шт.

33

AP35006

Pipe

1шт.

34

AP35007

Pipe

1шт.

35

AP35009

Line

1шт.
