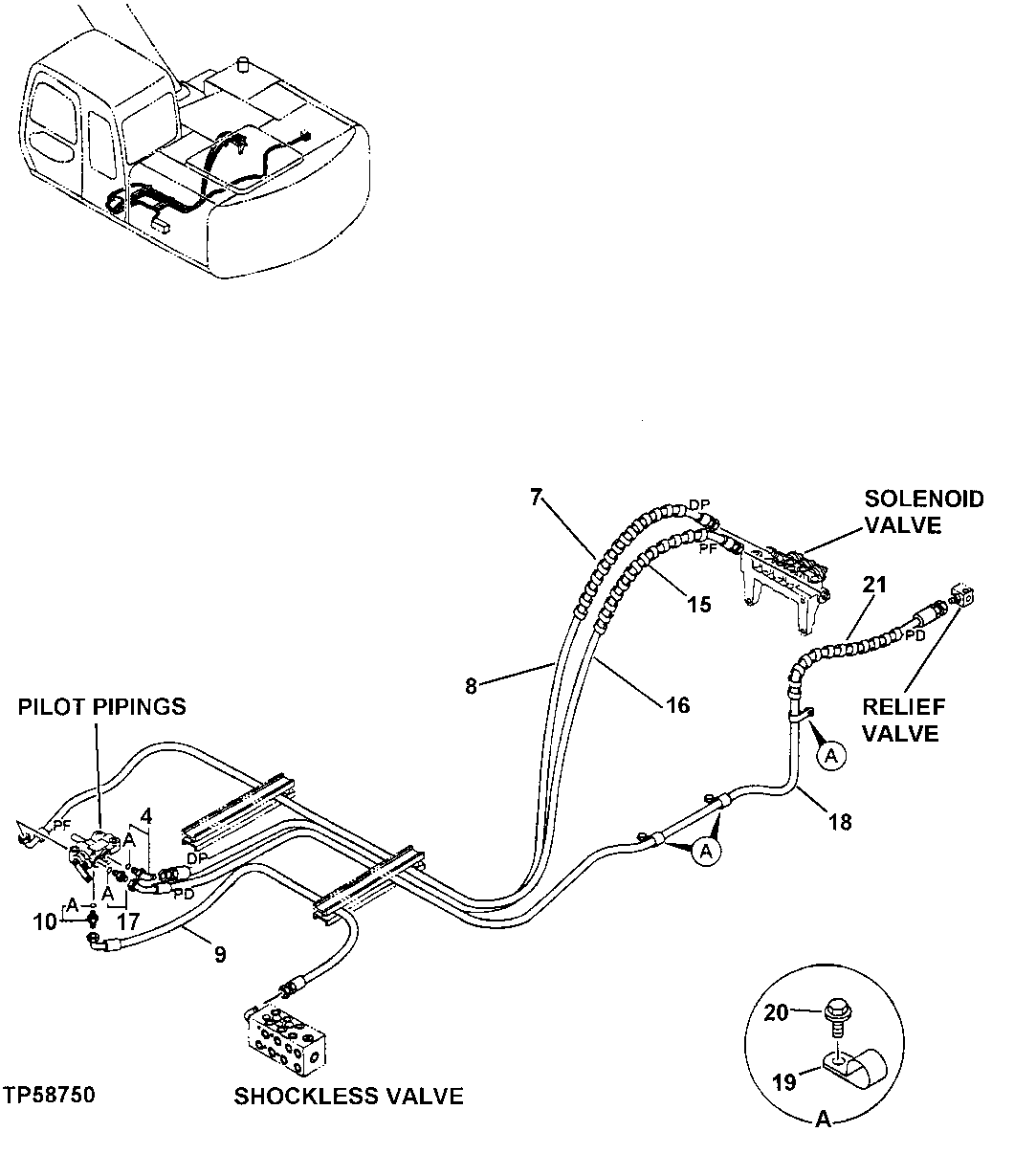

Запчасти John Deere 60LC 300 - Pilot Lines 3360 Hydraulic System

4

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

1шт.

8

AT218230

Hydraulic Hose

1шт.

9

4365595

Hydraulic Hose

SUB FOR AT214023

1шт.

10

4346499

Filter

SUB FOR AT213911

1шт.

10A

M800650

Packing

1шт.

15

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

1шт.

16

AT218233

Hydraulic Hose

1шт.

17

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

17A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

18

AT218237

Hydraulic Hose

1шт.

19

R73384

Clamp

SUB FOR TH108597 OR 4190253

3шт.

20

19M7938

Cap Screw

M10 X 20

3шт.

12M7066

Lock Washer

10 mm

3шт.

21

4327315

Hose Guard

4327293 NLA, SUB FOR AT213831

2шт.
