Запчасти John Deere 60LC 298 - PILOT PIPINGS, RIGHT JOYSTICK 3360 Hydraulic System

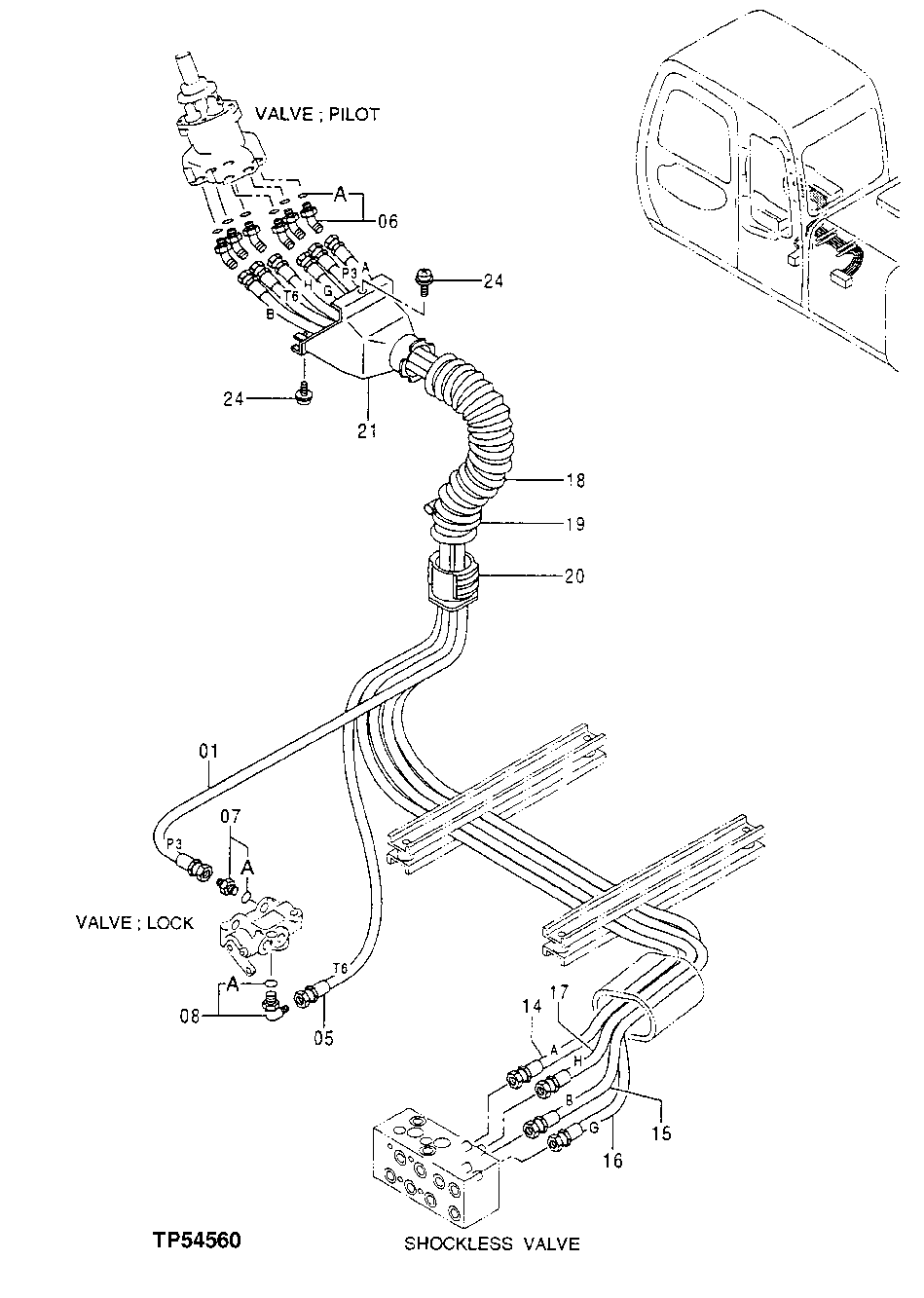

Схема запчастей John Deere 60LC - 298 - PILOT PIPINGS, RIGHT JOYSTICK 3360 Hydraulic System

Артикул

Название

Примечание

Количество

1

AT213850

Hydraulic Hose

9/16" X 1250 mm (49-1/4") X 9/16"

1шт.

5

AT213852

Hydraulic Hose

9/16" X 1200 mm (47-1/4") X 9/16"

1шт.

6

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

6A

M800650

Packing

1шт.

7

4261938

Fitting

(SUB FOR AT154285)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

14

AT218238

Hydraulic Hose

1шт.

15

AT216549

Hydraulic Hose

1шт.

16

AT216542

Hydraulic Hose

1шт.

17

AT216543

Hydraulic Hose

1шт.

18

4351175

Hose

(SUB FOR AT213957)

1шт.

19

4351774

Clamp

(SUB FOR AT213962)

1шт.

20

3079728

Bushing

(SUB FOR AT213780 ) (SUB FOR AT250589)

1шт.

21

3072745

Cover

(SUB FOR AT213784)

1шт.

24

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

Выбрано товаров: 20
