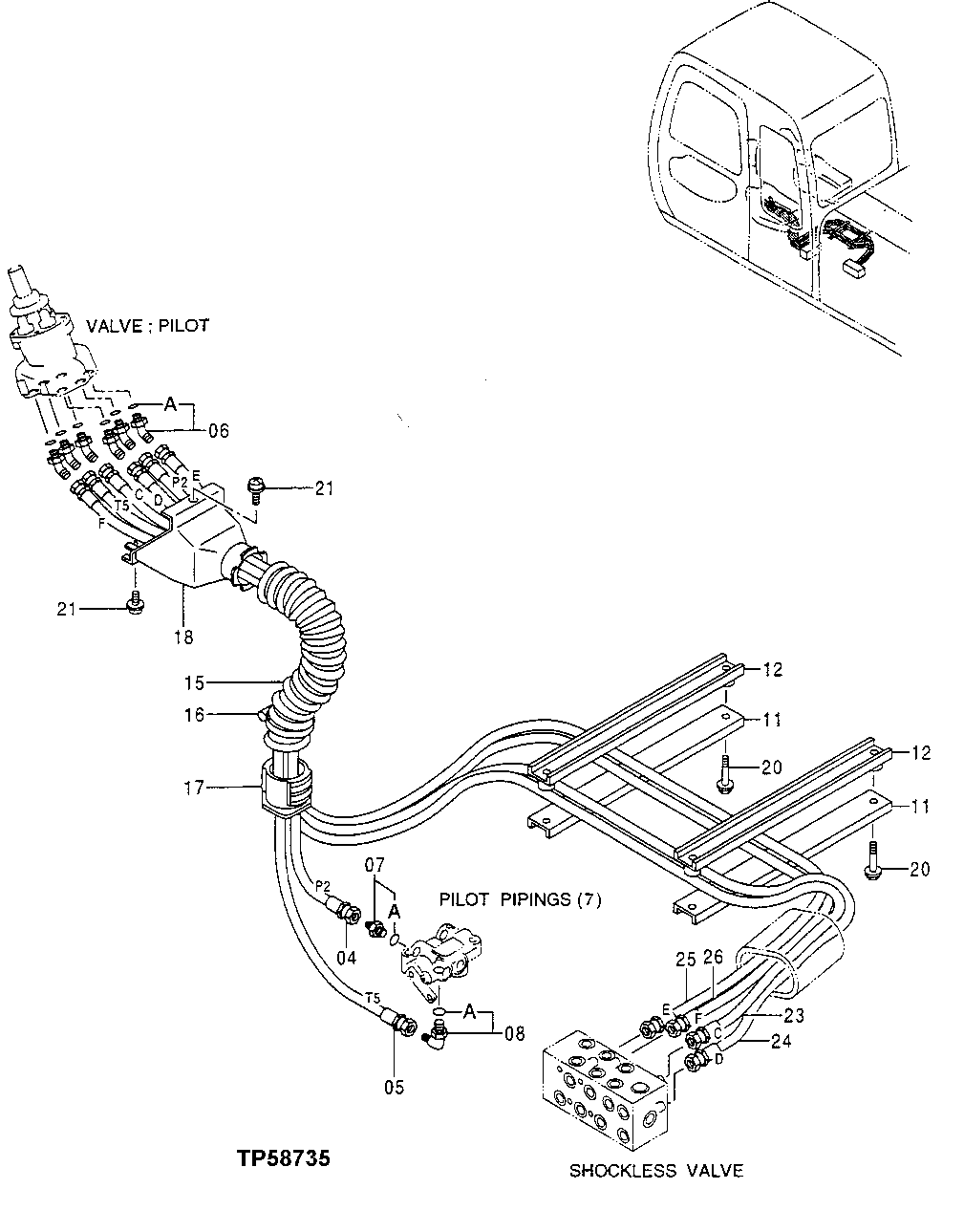

Запчасти John Deere 60LC 297 - PILOT PIPINGS, LEFT JOYSTICK 3360 Hydraulic System

4

AT213849

Hydraulic Hose

1шт.

5

AT213851

Hydraulic Hose

1шт.

6

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

6A

M800650

Packing

1шт.

7

4261938

Fitting

(SUB FOR AT154285)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4341877

Channel

(SUB FOR AT213887)

2шт.

12

9743671

Channel

(SUB FOR AT214405)

2шт.

15

4351175

Hose

(SUB FOR AT213957)

1шт.

16

4351774

Clamp

(SUB FOR AT213962)

1шт.

17

3079728

Bushing

(SUB FOR AT213780 ) (SUB FOR AT250589)

1шт.

18

3072745

Cover

(SUB FOR AT213784)

1шт.

20

19M7358

Cap Screw

M10 X 40

4шт.

12M7066

Lock Washer

10 mm

4шт.

21

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

23

AT202320

Hydraulic Hose

1шт.

24

AT202309

Hydraulic Hose

1шт.

25

AT215540

Hydraulic Hose

1шт.

26

AT201255

Hydraulic Hose

9/16" X 2100 mm (82-3/4") X 9/16"

1шт.
