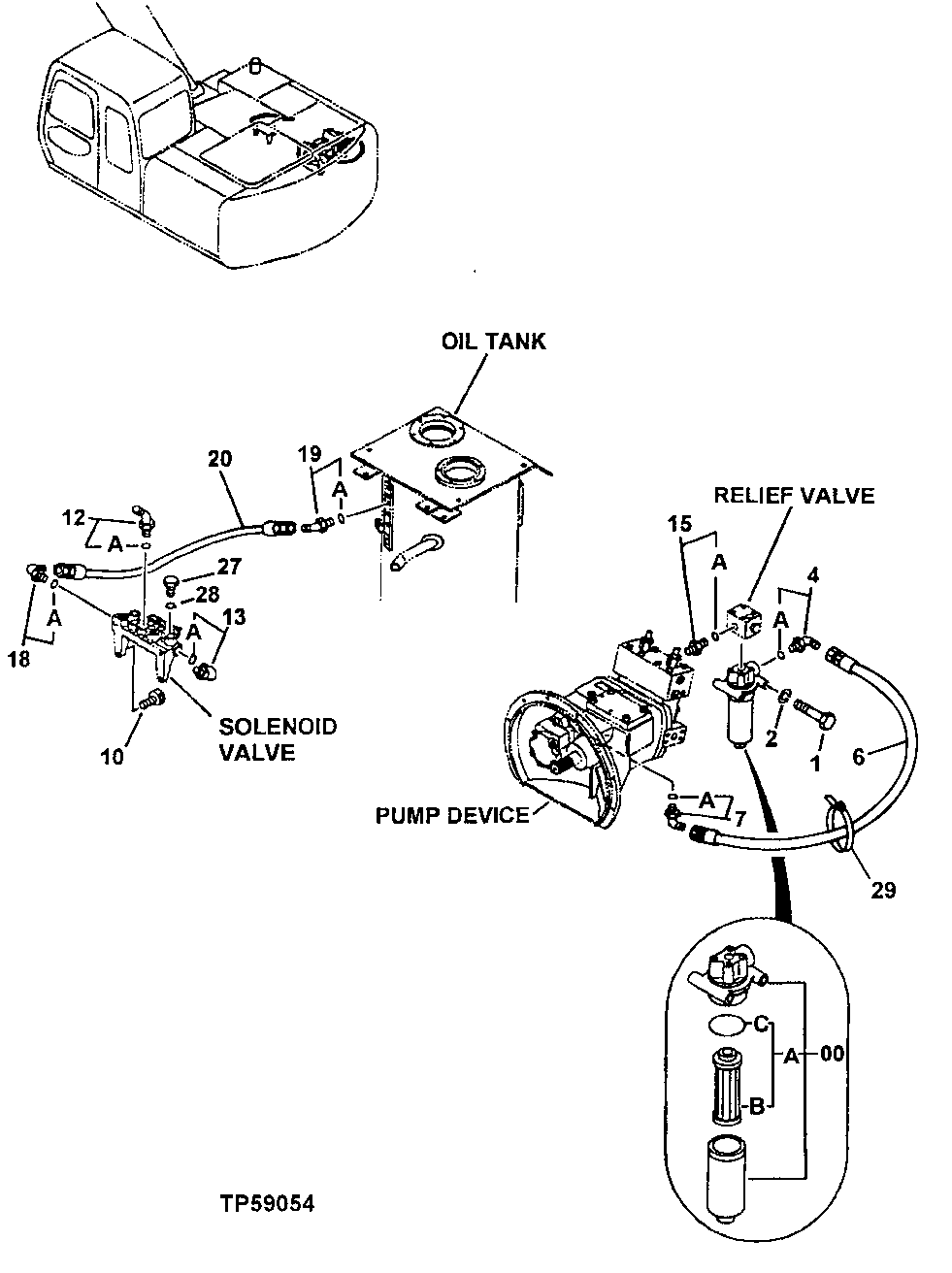

Запчасти John Deere 60LC 288 - Pilot Lines 3360 Hydraulic System

0

4330227

Filter Head

(SUB FOR AT213834)

1шт.

0A

AT186554

Filter Element

(SUB FOR AT214263)

1шт.

0B

Filter

1шт.

0C

TH105683

O-Ring

59.400 X 3.100 mm (2.339" X 0.122")

1шт.

1

19M8343

Cap Screw

M10 X 120

2шт.

2

12M7066

Lock Washer

10 mm

2шт.

4

4154672

Elbow Fitting

(SUB FOR TH101008)

1шт.

4A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

6

AP35167

Hydraulic Hose

1шт.

7

4219345

Elbow Fitting

(SUB FOR AT130819)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

19M7576

Screw

M10 X 30 (SUB FOR J781030)

2шт.

12

4200472

Elbow Fitting

(SUB FOR TH111301)

1шт.

12A

M800650

Packing

1шт.

13

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

15A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

18

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

18A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

19

4154671

Elbow Fitting

(SUB FOR TH101047)

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

20

AP34733

Hydraulic Hose

1шт.

27

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

1шт.

28

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

29

H77698

Tie Band

1шт.
