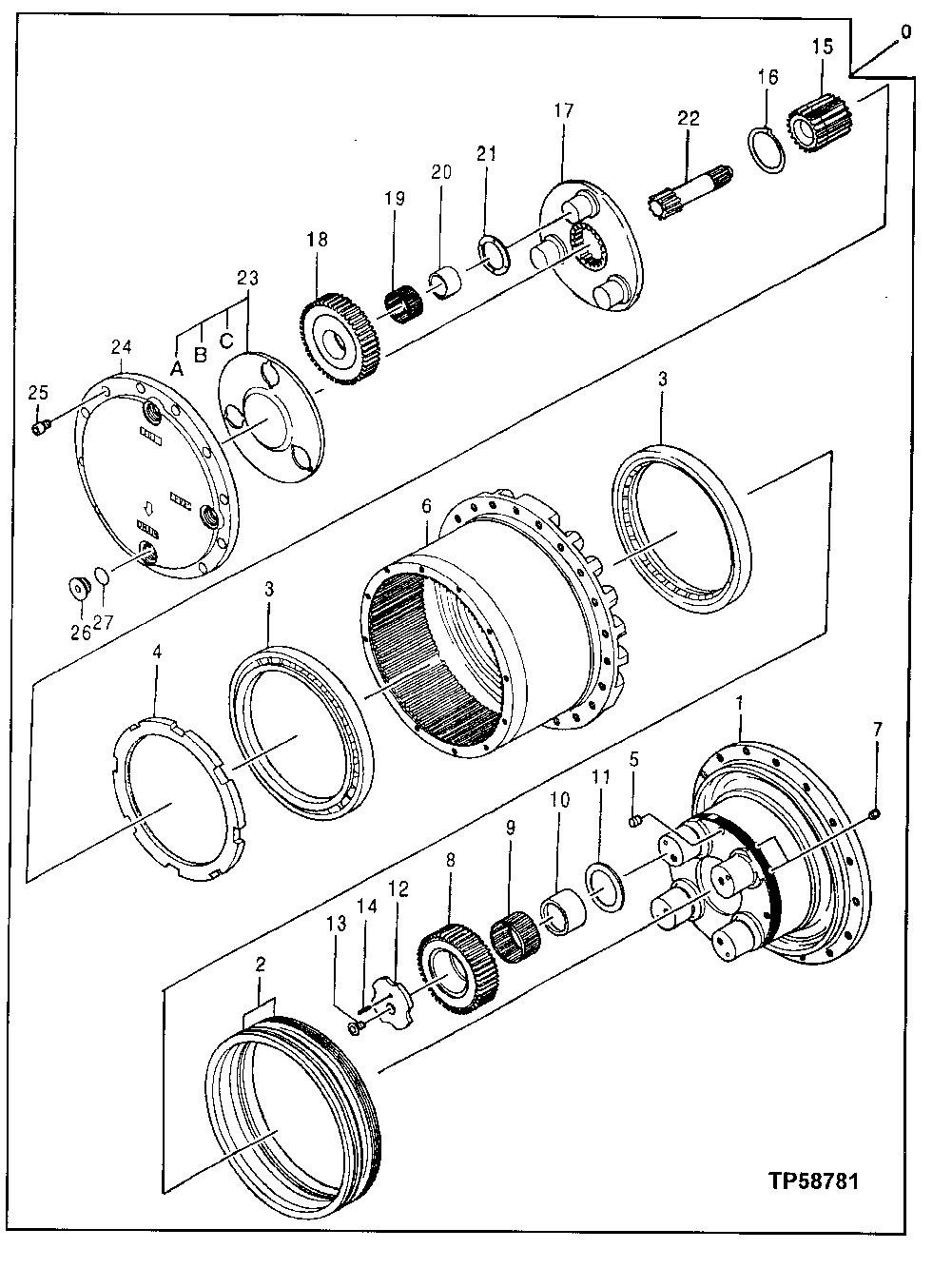

Запчасти John Deere 60LC 21 - Drive, Transmission 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

4389722

Drive

(SUB FOR AT218124)

1шт.

1

Housing

1шт.

2

0693001

Seal

(SUB FOR AT218076)

1шт.

3

0693002

Cylindrical Roller Bearing

(SUB FOR AT218077)

2шт.

4

0693003

Nut

(SUB FOR AT218078)

1шт.

5

0397804

Plug

(SUB FOR AT218050)

4шт.

6

Housing

1шт.

7

Plug

2шт.

8

0693004

Gear

(SUB FOR AT218079)

4шт.

9

0693005

Needle Bearing

(SUB FOR AT218080)

4шт.

10

0693006

Bearing Race

(SUB FOR AT218081)

4шт.

11

0692508

Thrust Washer

(SUB FOR AT218065)

4шт.

12

0693007

Wear Plate

(SUB FOR AT218082)

4шт.

13

0693008

Screw

(SUB FOR AT218083)

4шт.

14

4051262

Spring Pin

(SUB FOR AT213796)

4шт.

15

0693009

Sun Gear

(SUB FOR AT218084)

1шт.

16

0693010

Snap Ring

(SUB FOR AT218085)

1шт.

17

0693011

Planet Pinion Carrier

(SUB FOR AT218086)

1шт.

18

0693012

Gear

(SUB FOR AT218087)

3шт.

19

0397806

Needle Bearing

(SUB FOR AT218051)

3шт.

20

0693013

Bearing Race

(SUB FOR AT218088)

3шт.

21

0693014

Thrust Washer

(SUB FOR AT218089)

3шт.

22

0693015

Shaft

(SUB FOR AT218090)

1шт.

23

0693016

Wear Plate

(SUB FOR AT218091)

1шт.

23A

Plate

1шт.

23B

Plate

1шт.

23C

Plate

1шт.

24

0693017

Cover

(SUB FOR AT218092)

1шт.

25

0693018

Bolt

(SUB FOR AT218093)

12шт.

26

0693019

Fitting Plug

(SUB FOR AT218094)

3шт.

27

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

3шт.
