Запчасти John Deere 60LC 279 - Control Valve 3360 Hydraulic System

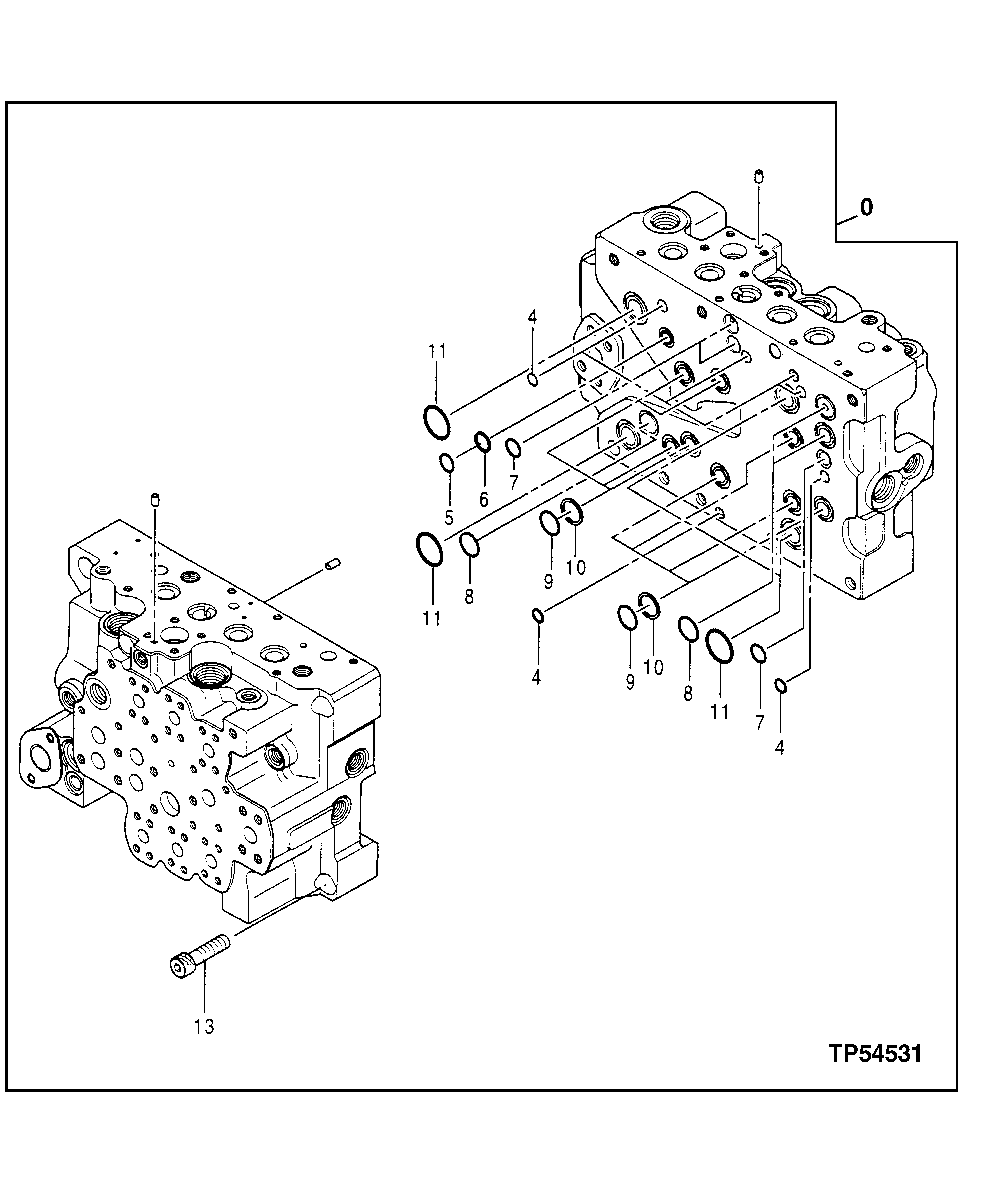

Схема запчастей John Deere 60LC - 279 - Control Valve 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

Flow Control Hyd. Valve

Additional Components Listed On Previous Pages (COMPONENTS ON THIS PAGE ARE FOR 4 394591) ( 4394591 IS NLA - SUB 9199522)(S UB FOR AT183682, AP34765, AP35557, 439459 1)

1шт.

4

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

6шт.

5

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

0309403

Back-Up Ring

(SUB FOR TH109142)

1шт.

7

4506416

O-Ring

(SUB FOR AT215736)

3шт.

8

0411901

O-Ring

23.300 X 2.400 mm (0.917" X 3/32") (SUB FOR AT153977)

3шт.

9

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)

8шт.

10

0309401

Back-Up Ring

(SUB FOR TH109140)

8шт.

11

0309402

O-Ring

29.700 X 2.400 mm (1.169" X 3/32") (SUB FOR TH109141)

4шт.

13

19M8712

Screw

M14 X 50

9шт.

Выбрано товаров: 10
