Запчасти John Deere 60LC 276 - Control Valve 3360 Hydraulic System

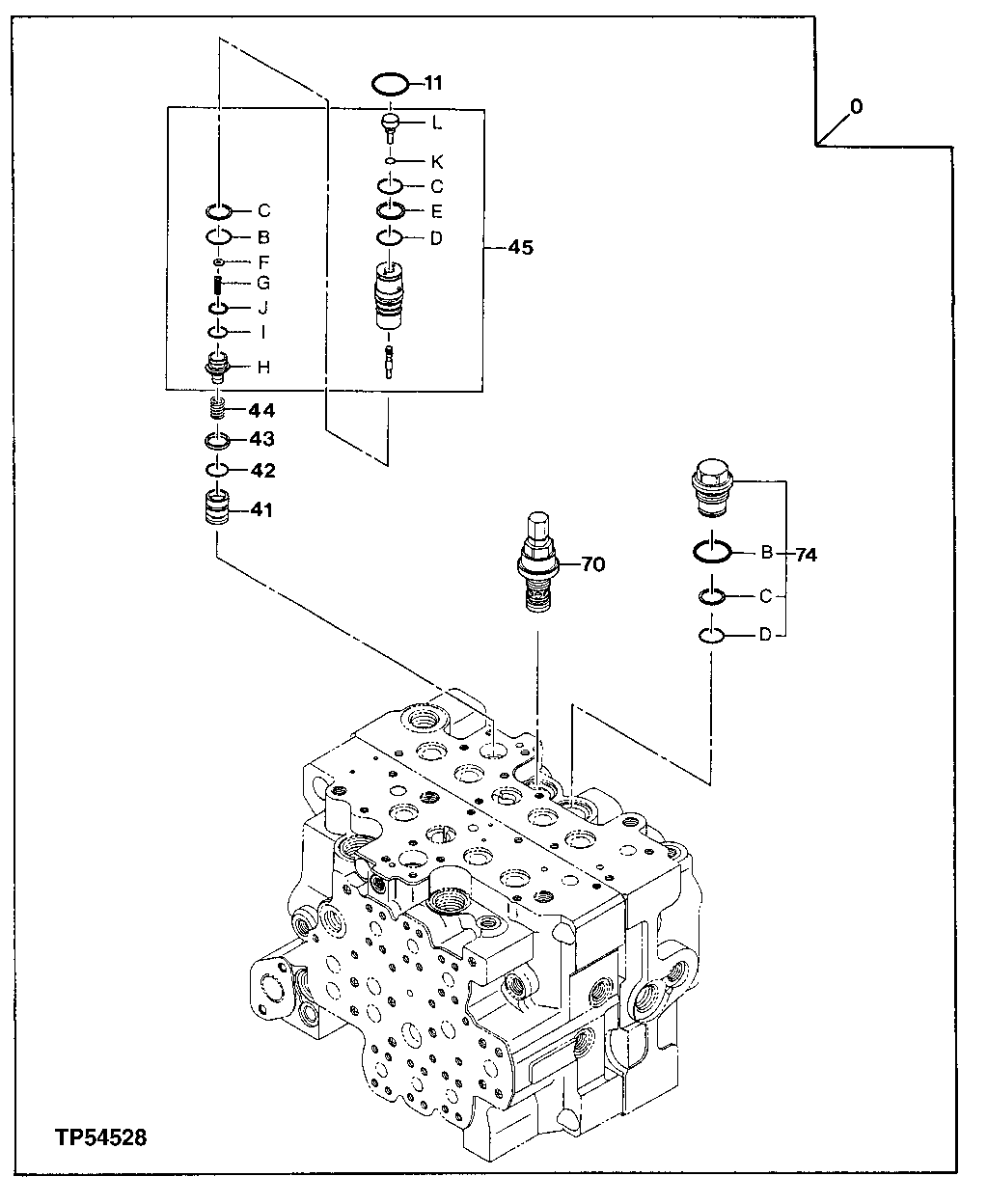

Схема запчастей John Deere 60LC - 276 - Control Valve 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

Flow Control Hyd. Valve

Additional Components Listed On Previous a nd Following Pages COMPONENTS ON THIS PAGE ARE FOR 4394591, 4394591 NLA, SUB 9199522, SUB FOR AT183682, AP34765, AP35557, 4394591

1шт.

11

0309402

O-Ring

29.700 X 2.400 mm (1.169" X 3/32") SUB FOR TH109141

1шт.

41

0670101

Valve

SUB FOR AT215796

1шт.

42

4366521

O-Ring

SUB FOR TH109041, SUB FOR 4153098, OR 0818008 APPL

1шт.

43

0412211

Back-Up Ring

SUB FOR AT154025

1шт.

44

0412212

Spring

SUB FOR AT154026

1шт.

45

9289762

Valve

SUB FOR AT215975 OR 4372679

1шт.

45B

0670103

Back-Up Ring

SUB FOR AT215798

1шт.

45C

CH12329

Packing

2шт.

45D

0976602

O-Ring

SUB FOR TH103574 OR AT264354 OR 4S00734

1шт.

45E

0670104

Back-Up Ring

SUB FOR AT215799

1шт.

45F

0670105

Washer

SUB FOR AT215800

1шт.

45G

0670106

Spring

SUB FOR AT215801

1шт.

45H

0670107

Fitting Plug

SUB FOR AT215802

1шт.

45I

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

45J

4297661

Back-Up Ring

SUB FOR AT215881

1шт.

45K

4506405

O-Ring

4.800 X 1.900 mm (0.189" X 0.075") SUB FOR TH102655

1шт.

45L

0670108

Stop

SUB FOR AT215803

1шт.

70

4372684

Pressure Relief Valve

SUB FOR AT215978 Arm Out

1шт.

74

0309461

Plug

SUB FOR TH109201

1шт.

74B

AT264347

O-Ring

SUB FOR TH100136, 4506428

1шт.

74C

4027959

Back-Up Ring

SUB FOR TH100771

1шт.

74D

CH12329

Packing

1шт.

Выбрано товаров: 23
