273 - Control Valve

Запчасти John Deere 60LC 273 - Control Valve 3360 Hydraulic System

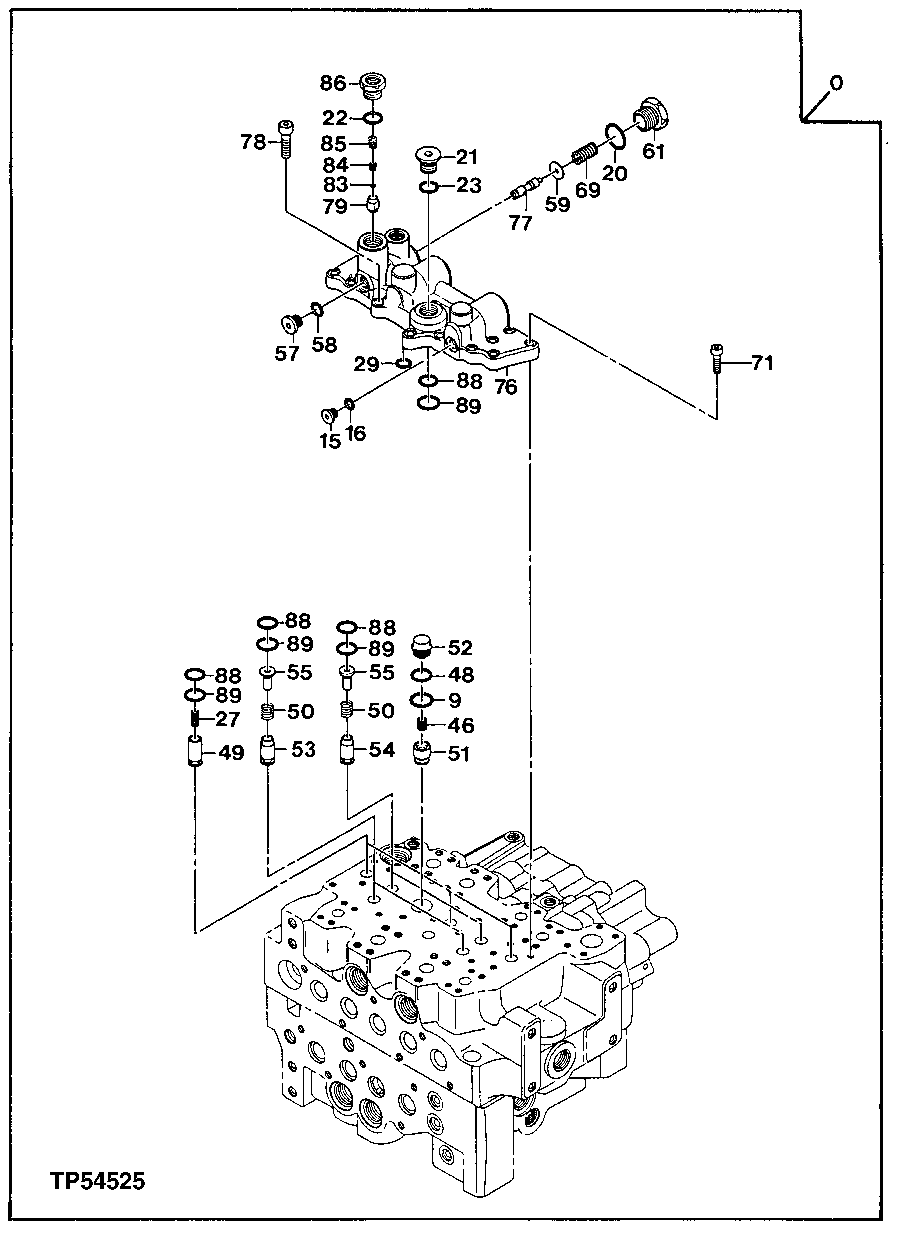

Схема запчастей John Deere 60LC - 273 - Control Valve 3360 Hydraulic System
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Flow Control Hyd. Valve

Additional Components Listed On Previous and Following Pages (COMPONENTS ON THIS PAGE ARE FOR 4394591) ( 4394591 IS NLA - SUB 9199522) (SUB FOR AT183682, AP34765, AP35557, 4394591)

1шт.

9

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)

1шт.

15

9134109

Drain Plug

(SUB FOR AT215738 OR 0669503)

1шт.

16

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.

20

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

21

0669506

Fitting Plug

(SUB FOR AT215741)

1шт.

22

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

23

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

27

0309413

Spring

(SUB FOR TH109152)

3шт.

29

CH10568

Packing

1шт.

46

0669606

Spring

(SUB FOR AT215754)

1шт.

48

0669608

Back-Up Ring

(SUB FOR AT215756)

1шт.

49

0669801

Check Valve

(SUB FOR AT215775)

3шт.

50

0669609

Spring

(SUB FOR AT215757)

4шт.

51

0673601

Check Valve

(SUB FOR AT215831)

1шт.

52

0670803

Plug

(SUB FOR AT215826)

1шт.

53

0669804

Check Valve

(SUB FOR AT215776)

2шт.

54

0669610

Check Valve

(SUB FOR AT215758)

2шт.

55

0669611

Valve Seat

(SUB FOR AT215759)

4шт.

57

4336166

Pipe Plug

(SUB FOR AT215763 OR 0669615)

1шт.

58

M800650

Packing

1шт.

59

0669616

Washer

(SUB FOR AT215764)

1шт.

61

0669618

Fitting Plug

(SUB FOR AT215766)

1шт.

69

0669805

Spring

(SUB FOR AT215777)

1шт.

71

19M8735

Screw

M8 X 30

13шт.

76

0693401

Valve Cover

(SUB FOR AT218095)

1шт.

77

0669807

Spool Valve

(SUB FOR AT215778)

1шт.

78

19M8447

Screw

M10 X 35

5шт.

79

0669808

Flow Control Hyd. Valve

(SUB FOR AT215779)

1шт.

83

0669623

Filter

(SUB FOR AT215771)

1шт.

84

0412407

Screw

(SUB FOR AT154044)

1шт.

85

0687901

Spring

(SUB FOR AT218064)

1шт.

86

0669809

Adapter Fitting

(SUB FOR AT215780)

1шт.

88

0669624

O-Ring

(SUB FOR AT215772)

8шт.

89

0669625

Back-Up Ring

(SUB FOR AT215773)

8шт.

Выбрано товаров: 0
