Запчасти John Deere 60LC 271 - Control Valve 3360 Hydraulic System

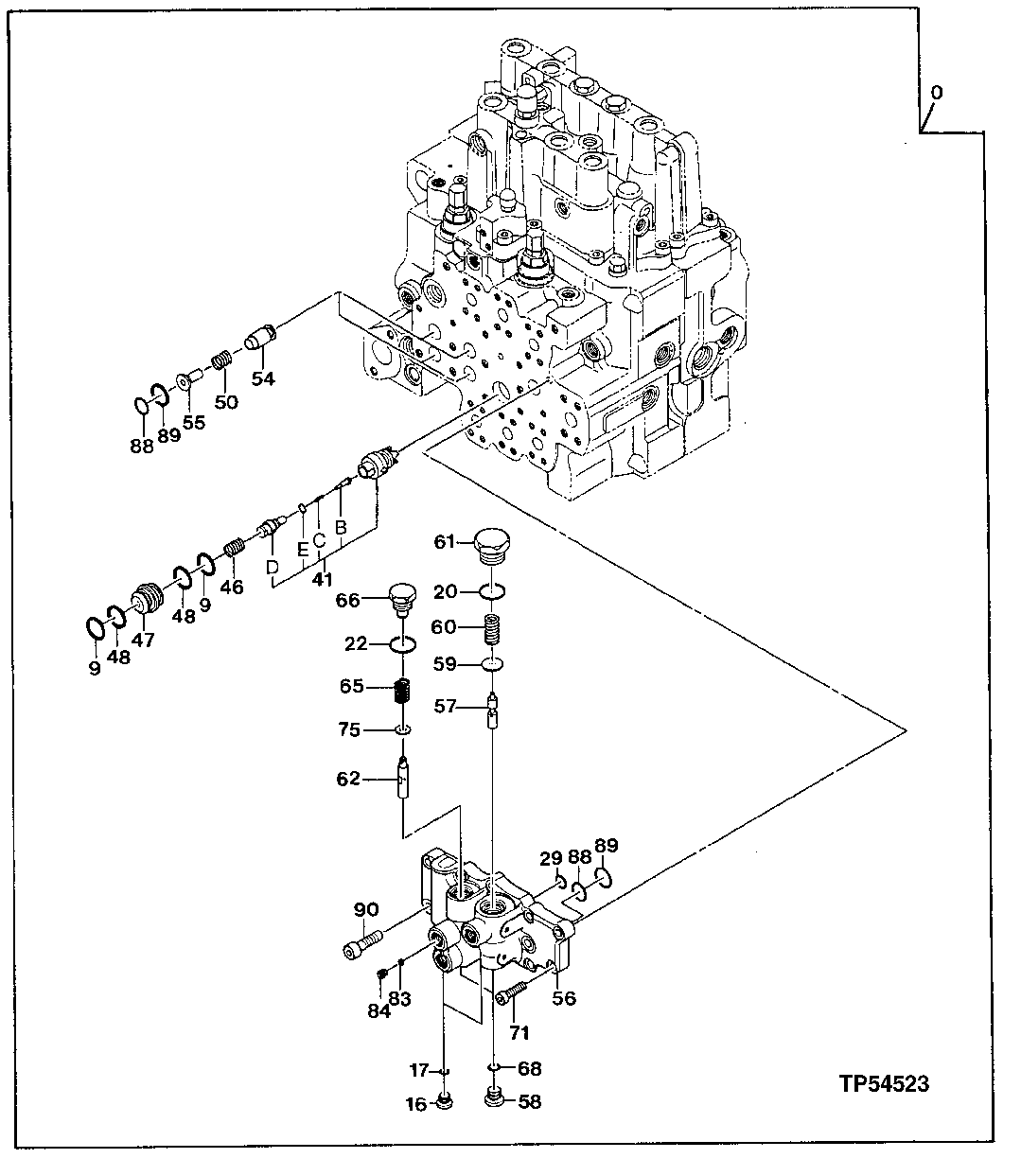

Схема запчастей John Deere 60LC - 271 - Control Valve 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

Flow Control Hyd. Valve

Additional Components Listed On Previous and Following Pages (COMPONENTS ON THIS PAGE ARE FOR 4394591) ( 4394591 IS NLA - SUB 9199522) (SUB FOR AT183682, AP34765, AP35557, 4394591)

1шт.

9

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)

2шт.

16

9134109

Drain Plug

(SUB FOR AT215738 OR 0669503)

1шт.

17

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.

20

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

22

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

29

CH10568

Packing

1шт.

41

0669601

Valve Seat Insert

(SUB FOR AT215749)

1шт.

41B

0669603

Check Valve

(SUB FOR AT215751)

1шт.

41C

0669604

Spring

(SUB FOR AT215752)

1шт.

41D

0669605

Fitting Plug

(SUB FOR AT215753)

1шт.

41E

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.

46

0669606

Spring

(SUB FOR AT215754)

1шт.

47

0669607

Bushing

(SUB FOR AT215755)

1шт.

48

0669608

Back-Up Ring

(SUB FOR AT215756)

2шт.

50

0669609

Spring

(SUB FOR AT215757)

4шт.

54

0669610

Check Valve

(SUB FOR AT215758)

4шт.

55

0669611

Valve Seat

(SUB FOR AT215759)

4шт.

56

0669612

Cover

(SUB FOR AT215760)

1шт.

57

0669613

Spool Valve

(SUB FOR AT215761)

1шт.

58

4336166

Pipe Plug

(SUB FOR AT215763 OR 0669615)

1шт.

59

0669616

Washer

(SUB FOR AT215764)

1шт.

60

0669617

Spring

(SUB FOR AT215765)

1шт.

61

0669618

Fitting Plug

(SUB FOR AT215766)

1шт.

62

0669619

Spool Valve

(SUB FOR AT215767)

1шт.

65

0669620

Spring

(SUB FOR AT215768)

1шт.

66

0669621

Fitting Plug

(SUB FOR AT215769)

1шт.

68

M800650

Packing

1шт.

71

19M8735

Screw

M8 X 30

7шт.

75

0669622

Washer

(SUB FOR AT215770)

1шт.

83

0669623

Filter

(SUB FOR AT215771)

1шт.

84

0412407

Screw

(SUB FOR AT154044)

1шт.

88

0669624

O-Ring

(SUB FOR AT215772)

5шт.

89

0669625

Back-Up Ring

(SUB FOR AT215773)

5шт.

90

19M8447

Screw

M10 X 35

6шт.

Выбрано товаров: 35
