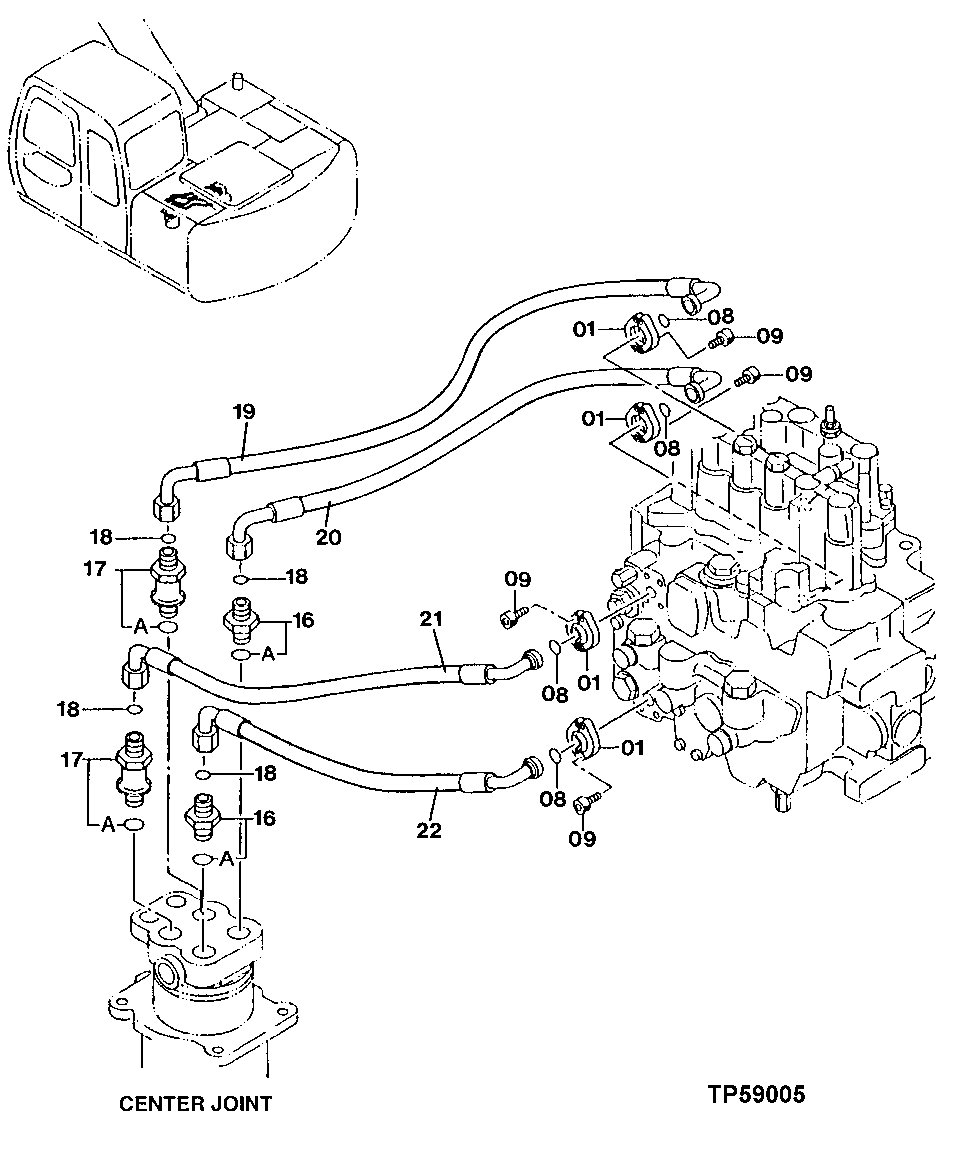

Запчасти John Deere 60LC 267 - Main Hydraulic Hoses 3360 Hydraulic System

1

4510173

Fitting

(SUB FOR TH108341)

8шт.

8

R69667

O-Ring

18.644 X 3.531 mm (47/64" X 0.139")

4шт.

9

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

16шт.

16

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

16A

R27149

O-Ring

23.393 X 3.531 mm (0.921" X 0.139")

1шт.

17

4189539

Adapter Fitting

(SUB FOR AT107393)

2шт.

17A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

18

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

4шт.

19

AP34772

Hydraulic Hose

1шт.

20

AP34773

Hydraulic Hose

Fabricate

1шт.

21

AP34774

Hydraulic Hose

1шт.

22

AP34775

Hose

1шт.
