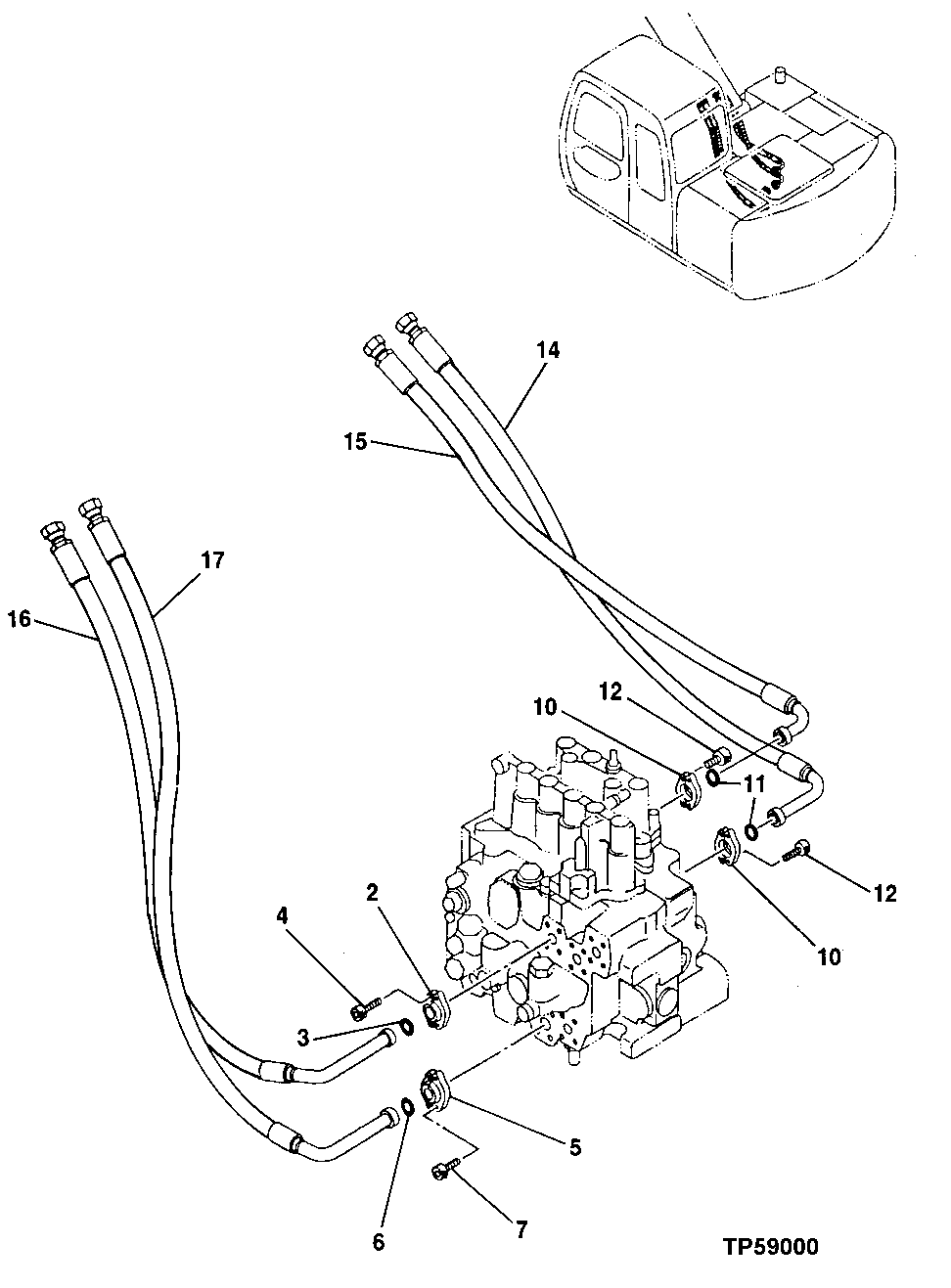

Запчасти John Deere 60LC 265 - Main Hydraulic Hoses 3360 Hydraulic System

2

4510173

Fitting

(SUB FOR TH108341)

2шт.

3

R69667

O-Ring

18.644 X 3.531 mm (47/64" X 0.139")

1шт.

4

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

4шт.

5

R29424

Flange Fitting

2шт.

6

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

1шт.

7

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

10

4510173

Fitting

(SUB FOR TH108341)

4шт.

11

R69667

O-Ring

18.644 X 3.531 mm (47/64" X 0.139")

2шт.

12

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

8шт.

14

AP34769

Hydraulic Hose

1шт.

15

AP35076

Hydraulic Hose

1шт.

16

AP35075

Hydraulic Hose

1шт.

17

AP35074

Hydraulic Hose

(SUB FOR AT34729)

1шт.
