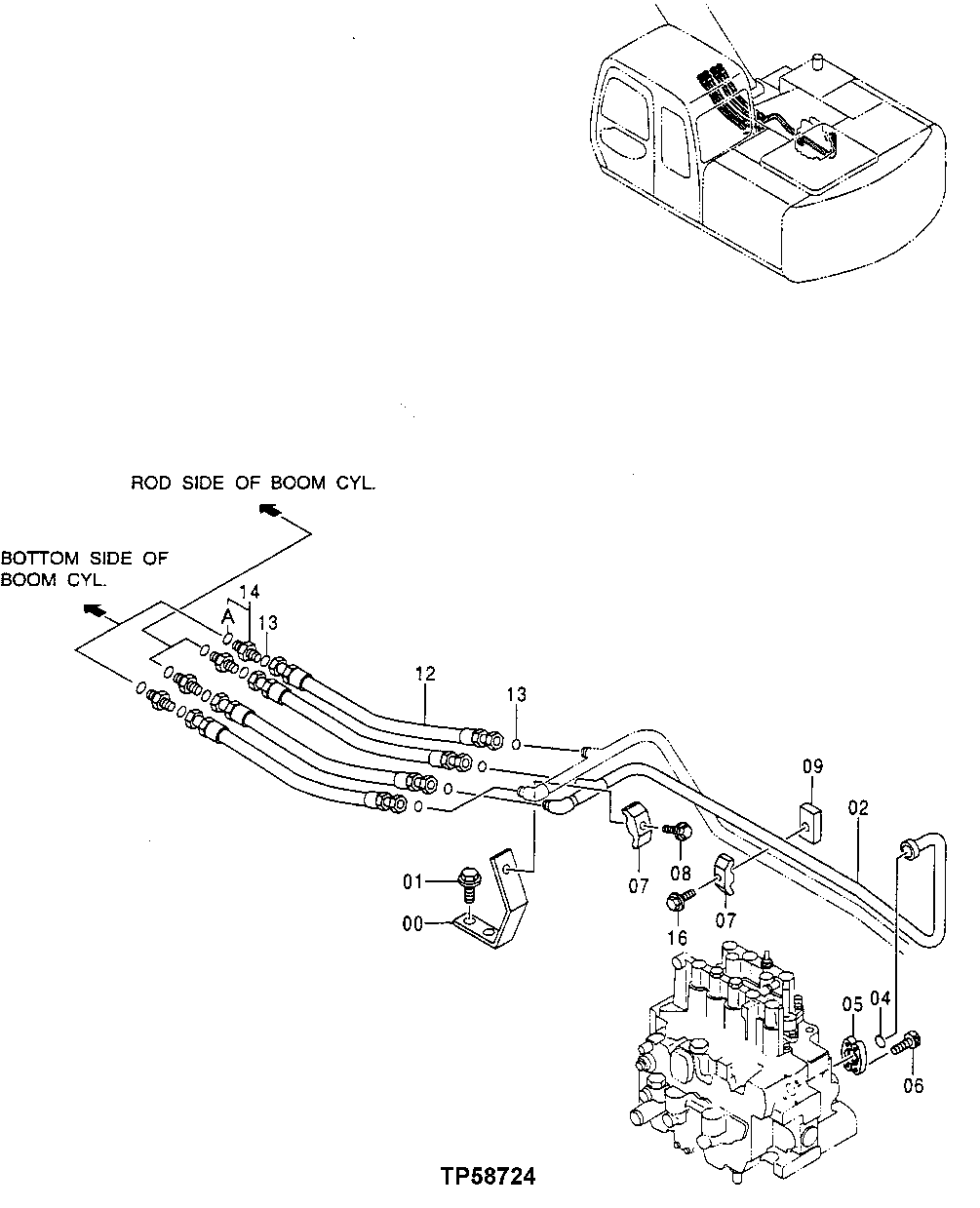

Запчасти John Deere 60LC 264 - Main Hydraulic Hoses 3360 Hydraulic System

0

9728966

Support

SUB FOR AT127223

1шт.

1

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

2

AP34802

Line

1шт.

4

R69667

O-Ring

18.644 X 3.531 mm (47/64" X 0.139")

1шт.

5

4510173

Fitting

SUB FOR TH108341

2шт.

6

19M7657

Screw

M8 X 25 SUB FOR P61954 OR J780825

4шт.

7

Clamp

4285723 NLA; ORDER 4189859 Rubber

2шт.

4189859

Clamp

Steel

2шт.

8

19M7363

Cap Screw

M12 X 60

1шт.

12H301

Lock Washer

1/2"

1шт.

9

4369262

Manifold

SUB FOR P61833

1шт.

12

AP34731

Hydraulic Hose

4шт.

13

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

8шт.

14

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

4шт.

14A

R27149

O-Ring

23.393 X 3.531 mm (0.921" X 0.139")

1шт.

16

19M7362

Cap Screw

M12 X 55

1шт.

12H301

Lock Washer

1/2"

1шт.
