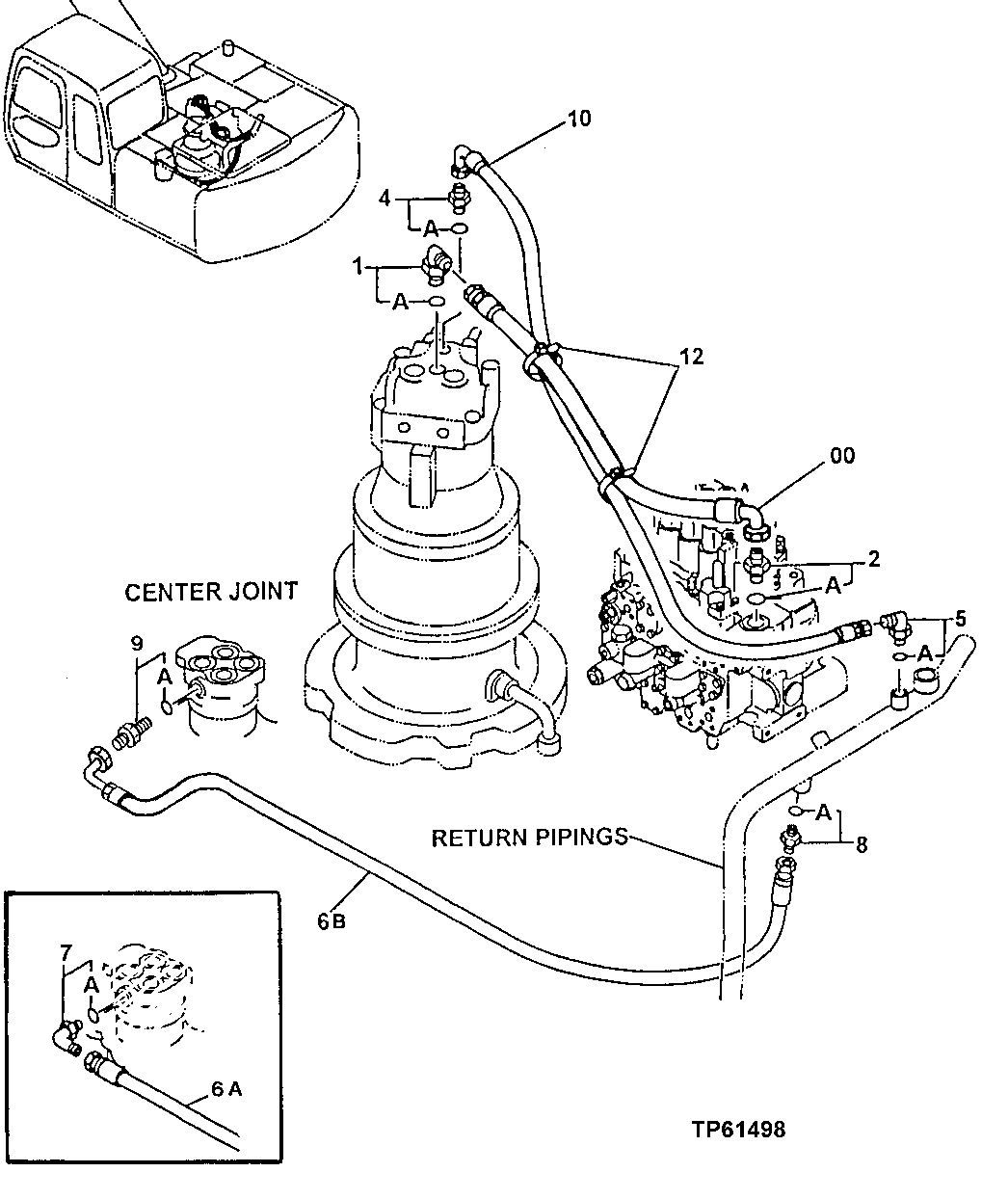

Запчасти John Deere 60LC 263 - Drain Lines 3360 Hydraulic System

0

4251920

Hydraulic Hose

(SUB FOR AT172355)

1шт.

1

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

1A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

2

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

2A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

4

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6A

Hydraulic Hose

(SUB 4400638 AND AT131902)( AP34767 NLA)

1шт.

6B

4400638

Hydraulic Hose

(SUB FOR AP35709 ) (USE WITH AT131902)

1шт.

7

4219345

Elbow Fitting

(SUB FOR AT130819)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)

1шт.

8A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

9

4221290

Adapter Fitting

(USE WITH 4400638) (SUB FOR AT131902)

1шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

10

P63678

Hydraulic Hose

1шт.

12

H77698

Tie Band

2шт.
