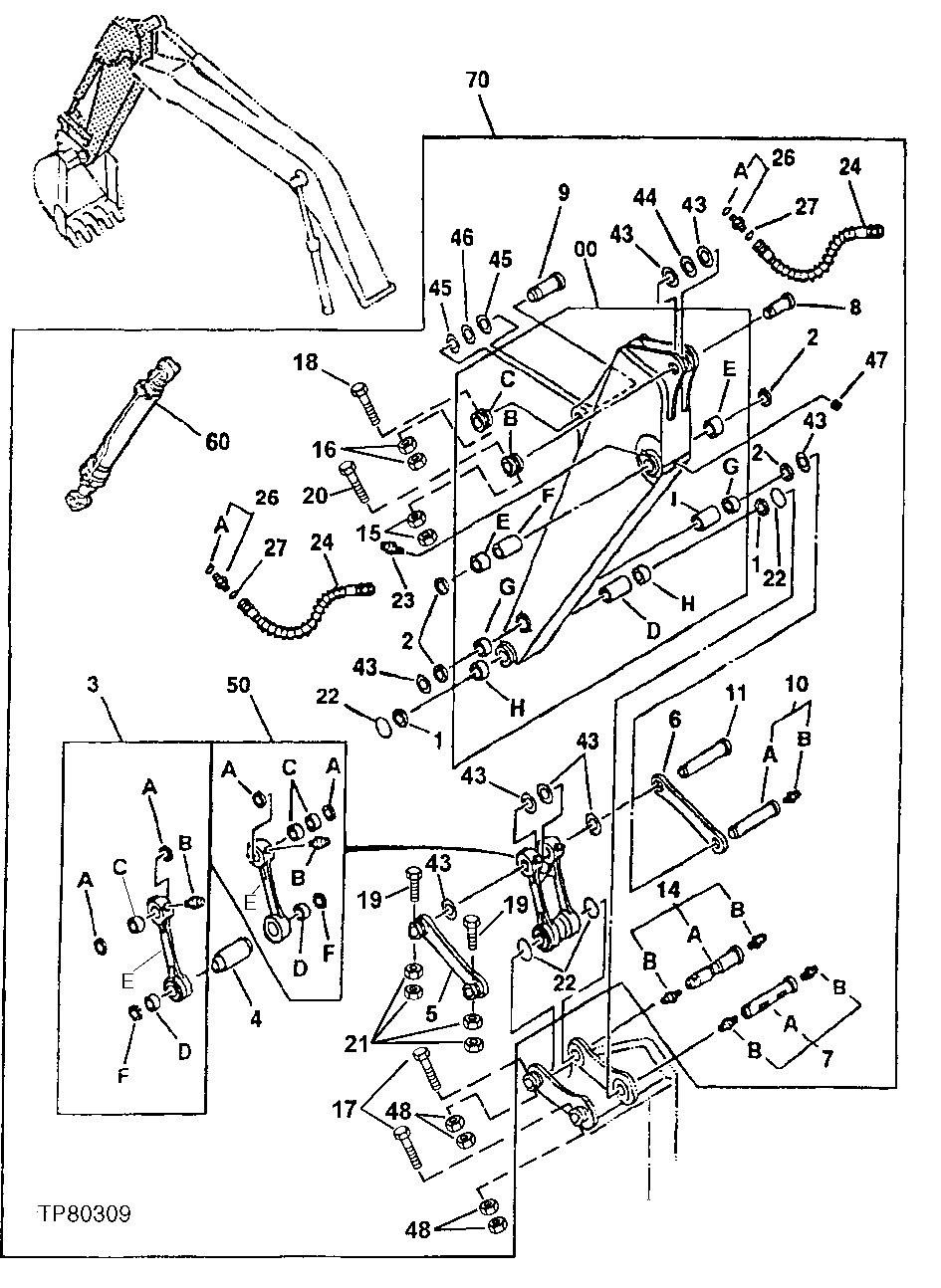

Запчасти John Deere 60LC 259 - Long Arm Assembly 3340 Backhoe & Excavator Frames

0

AP34757

Arm

(SUB FOR AP35216)

1шт.

0A

Arm

1шт.

0B

T104251

Bushing

1шт.

0C

P60783

Bushing

1шт.

0D

4123815

Spacer

(SUB FOR TH104461)

1шт.

0E

3079346

Bushing

(SUB FOR P64823)

2шт.

0F

P64845

Spacer

1шт.

0G

T104249

Bushing

2шт.

0H

T139507

Bushing

2шт.

0I

T104250

Spacer

1шт.

1

TH102446

Seal

2шт.

2

TH104472

Seal

4шт.

3

9726994

Link

(SUB FOR AT127210)

1шт.

3A

TH104472

Seal

2шт.

3B

TH100074

Lubrication Fitting

1шт.

3C

AT126136

Bushing

(SUB FOR AT213966)

2шт.

3D

T139496

Bushing

(SUB FOR AT213842, AT126188 OR T104344)

1шт.

3E

Link

1шт.

3F

TH102446

Seal

1шт.

4

4154425

Spacer

(SUB FOR T104348)

1шт.

5

AP34756

Link

1шт.

6

3076177J

Cover

SUB FOR P64846

1шт.

7

Pin

( AT214389 NLA)

1шт.

7A

AT186163

Pin Fastener

(SUB FOR AT213760)

1шт.

7B

TH100074

Lubrication Fitting

2шт.

8

T144753

Pin

70.924 X 228 mm (2.792" X 8.976 ") (SUB FOR T104324, FFSB108069)

1шт.

9

Pin

( P64849 NLA)

1шт.

10

Pin

( AT214382 OR 9096918 NLA)

1шт.

10A

T144755

Pin

1шт.

10B

TH100074

Lubrication Fitting

1шт.

11

Pin

( P64850 NLA)

1шт.

14

AT186164

Pin Fastener

(SUB FOR 9140207 ) (ALSO ORDER TH100074)

1шт.

14A

AT186164

Pin Fastener

(SUB FOR AT213761)(USE UNTIL EXHAUSTED)

1шт.

AT186164

Pin Fastener

(SUB FOR AT213761)

1шт.

14B

TH100074

Lubrication Fitting

2шт.

15

14M7276

Nut

M16

2шт.

16

14M7276

Nut

M16

2шт.

17

19M7954

Cap Screw

M16 X 150

2шт.

18

19M8351

Cap Screw

M16 X 125 (SUB FOR 19M7941)

1шт.

19

19M7907

Screw

M20 X 140

5шт.

20

19M8043

Cap Screw

M16 X 140

1шт.

21

14M7277

Nut

M20

10шт.

22

4089028

O-Ring

Standard O-Ring

4шт.

AT349466

Seal

Split O-Ring

4шт.

T379473

V-Ring Seal

V O-Ring

4шт.

23

TH100074

Lubrication Fitting

2шт.

24

4296269

Hydraulic Hose

(SUB FOR AP34850)

2шт.

26

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

26A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

27

T77858

O-Ring

2шт.

43

4366692R

Thrust Washer

(SUB FOR TH105593, 4366692 OR AT214030)

8шт.

44

4367410R

Thrust Washer

(SUB FOR TH105592, 4367410 OR AT214040)

1шт.

45

4075357

Washer

66 X 120 X 1 mm (2.598" X 4.72 4" X 0.039") (SUB FOR TH108944)

2шт.

46

4075358

Washer

66 X 120 X 2 mm (2.598" X 4.72 4" X 0.079") (SUB FOR TH108955)

1шт.

47

4367410R

Thrust Washer

(SUB FOR TH105592, AT214040 OR 4367410)

1шт.

48

14M7276

Nut

M16

4шт.

50

9726946

Link

(SUB FOR AT127209)

1шт.

50A

TH104472

Seal

2шт.

50B

TH100074

Lubrication Fitting

1шт.

50C

AT126136

Bushing

(SUB FOR AT213966)

2шт.

50D

T139496

Bushing

(SUB FOR AT213842, AT126188 OR T104344)

1шт.

50E

9726946

Link

(SUB FOR AT126075 AND AT127209)

1шт.

50F

TH102446

Seal

1шт.

60

Hydraulic Cylinder

Bucket See Separate Page For Detail

1шт.

70

AP35217

Arm

WHOLE GOODS Includes Long Arm, B ucket Cylinder, Hoses and Linkage

1шт.
