Запчасти John Deere 60LC 18 - Travel Motor 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

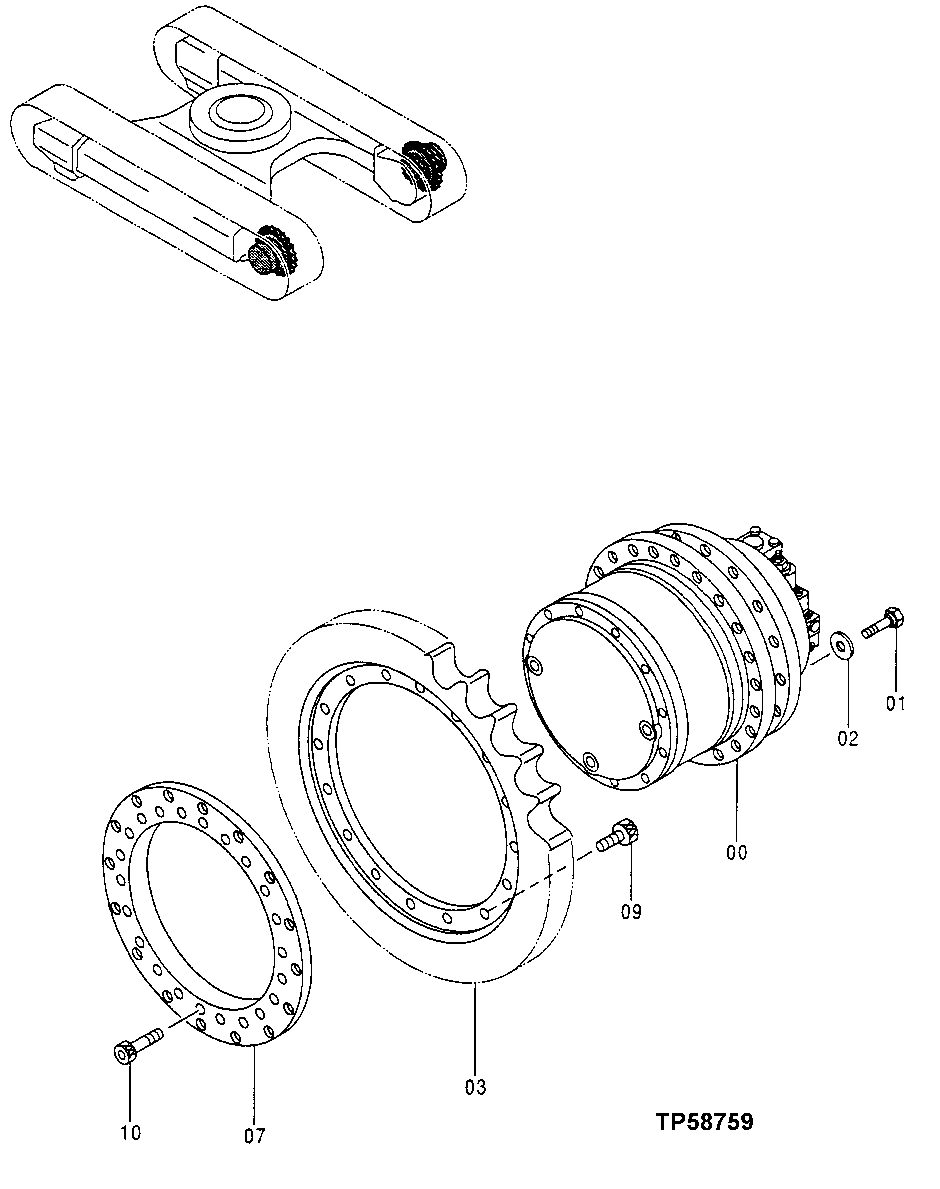

Схема запчастей John Deere 60LC - 18 - Travel Motor 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

Артикул

Название

Примечание

Количество

0

AT183684

Hydraulic Motor

NLA (ORDER 4359799EX)

1шт.

4359799

Drive

NLA (ORDER 4359799EX)

1шт.

4359799EX

Hydraulic Motor Reman

(SUB FOR AT218115) (REMAN FOR AT1836 84 OR 4359799) One Each Side Of Unit

1шт.

1

4272305

Bolt

(SUB FOR AT154319)

16шт.

2

24M7338

Washer

17 X 30 X 3 mm (SUB FOR J222016)

16шт.

3

AT311804

Drive Sprocket

(SUB FOR 1020990, AT218227 OR 1018740)

1шт.

P67304

Chain Sprocket

1шт.

4

19M8279

Screw

M16 X 60 (USE WITH P67304) Not Illustrated

22шт.

7

2040519

Spacer

(SUB FOR AT218228)

1шт.

9

M342045

Bolt

(SUB FOR AT218243)

16шт.

10

19M8730

Screw

M16 X 80 (SUB FOR AT218242 OR M341680)

22шт.

Выбрано товаров: 11
