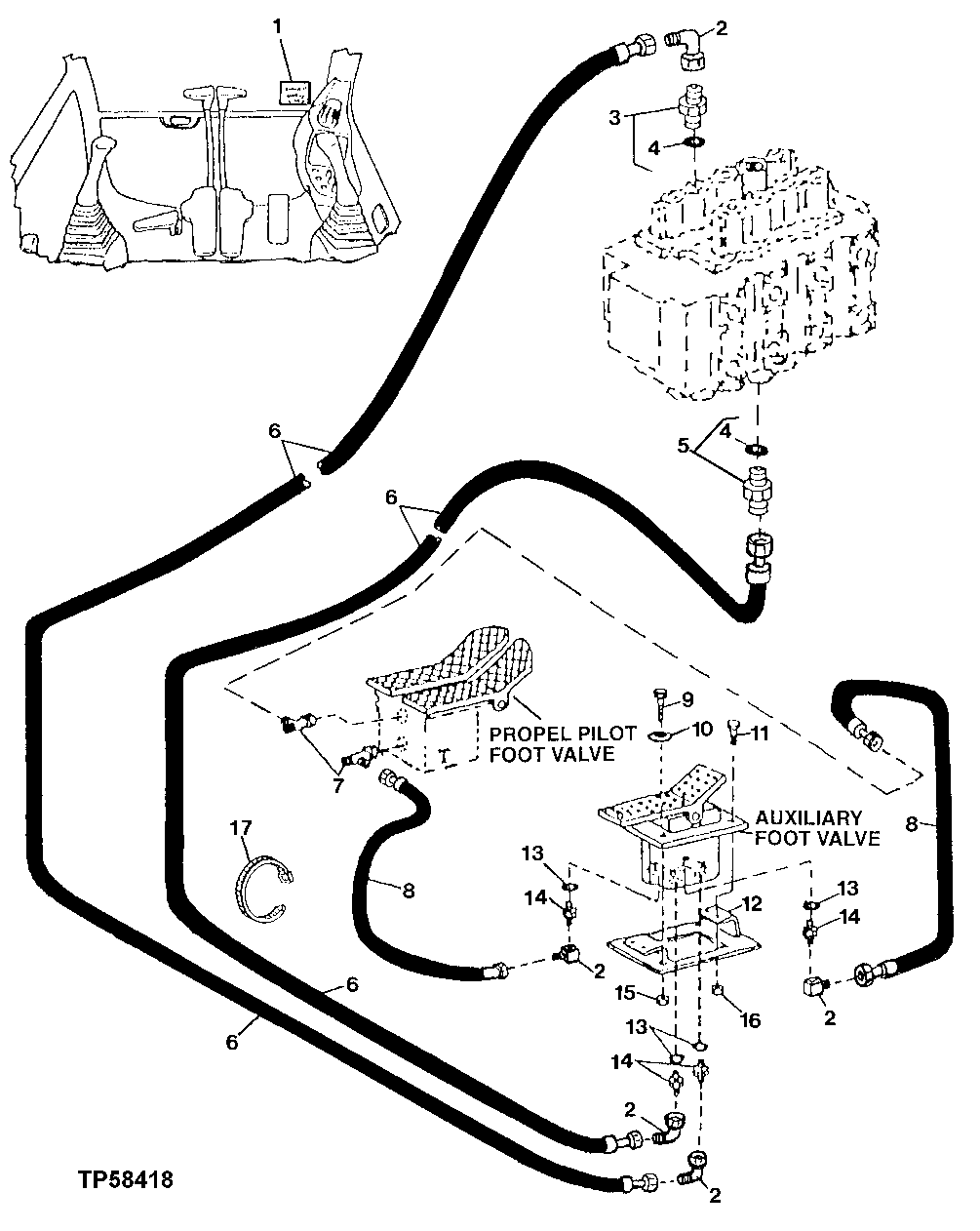

Запчасти John Deere 60LC 254 - REPLACEMENT AUXILIARY FOOT CONTROL HOSES AND FITTINGS 3315 Control Linkage

1

T149434

Label

1шт.

2

AE24616

Elbow Fitting

5шт.

3

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

4

CH11570

O-Ring

2шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

6

AE42067

Hydraulic Hose

2шт.

7

AT36921

Tee Fitting

2шт.

8

AH108250

Hose

2шт.

9

19M7784

Screw

M10 X 20

2шт.

10

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

11

19M7866

Screw

M8 X 20

4шт.

12

AT115535

Support

1шт.

13

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

14

R27212

Fitting

4шт.

15

14M7296

Flange Nut

M10

1шт.

16

14M7298

Flange Nut

M8

4шт.

17

H77698

Tie Band

3шт.
