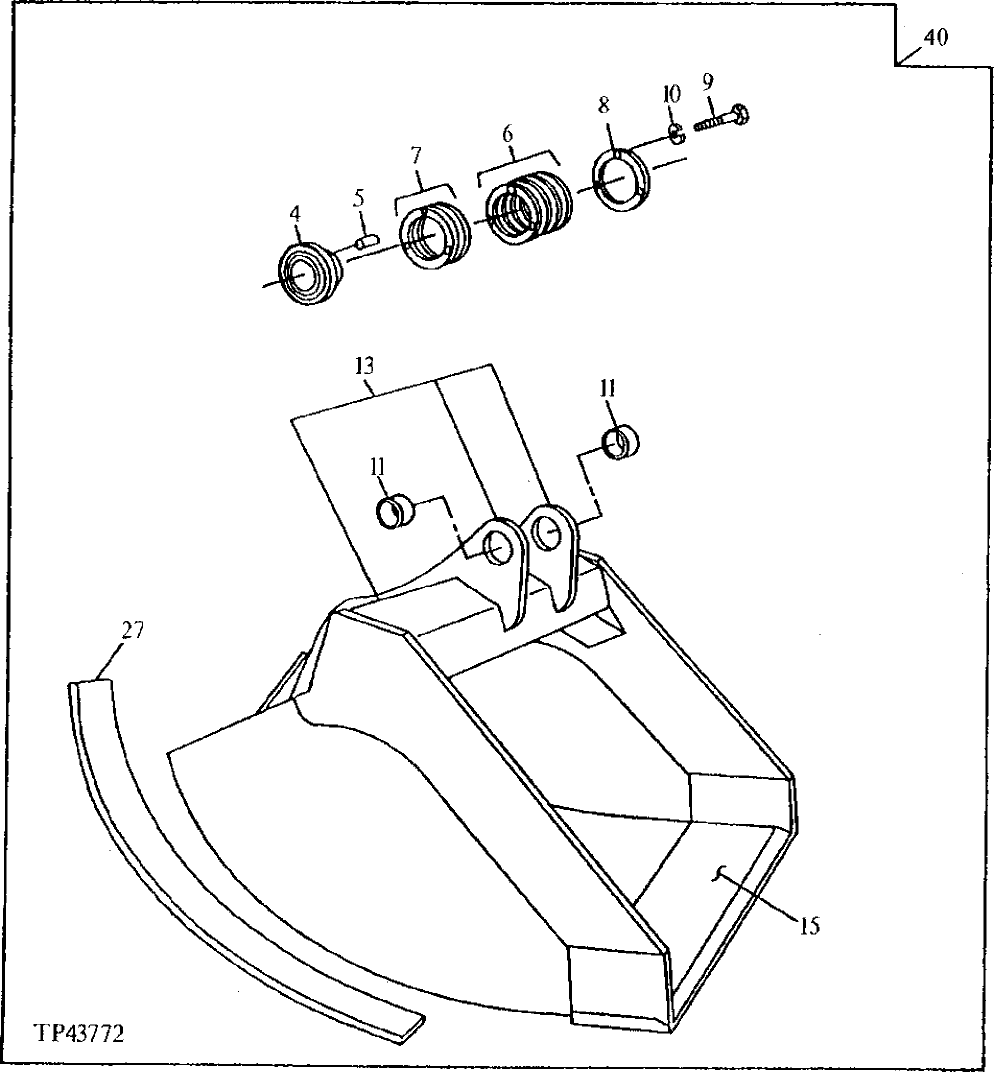

Запчасти John Deere 60LC 238 - Ditch Cleaning Bucket 3302 Bucket With Teeth

4

Self-Aligning Bushing

( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

1mm

9шт.

7

TH104513

Shim

5mm

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

2шт.

13

C607429

Pivot

(A) Bucket Ear Blank Assembly

1шт.

15

Cutting Edge

(CUT TO LENGTH FROM AT131089 BULK MATERIAL)

1шт.

27

300292

Bar

(A) Wear Strip

2шт.

40

Excavator Bucket

(A) 72in. - 1.06 yd³, ( A T199354 NLA) (WHOLE GOODS)

1шт.

Excavator Bucket

(A) 60in.- .90 yd³, (SUB AT3326 83)( AT131031 NLA) (WHOLE GOODS)

1шт.
