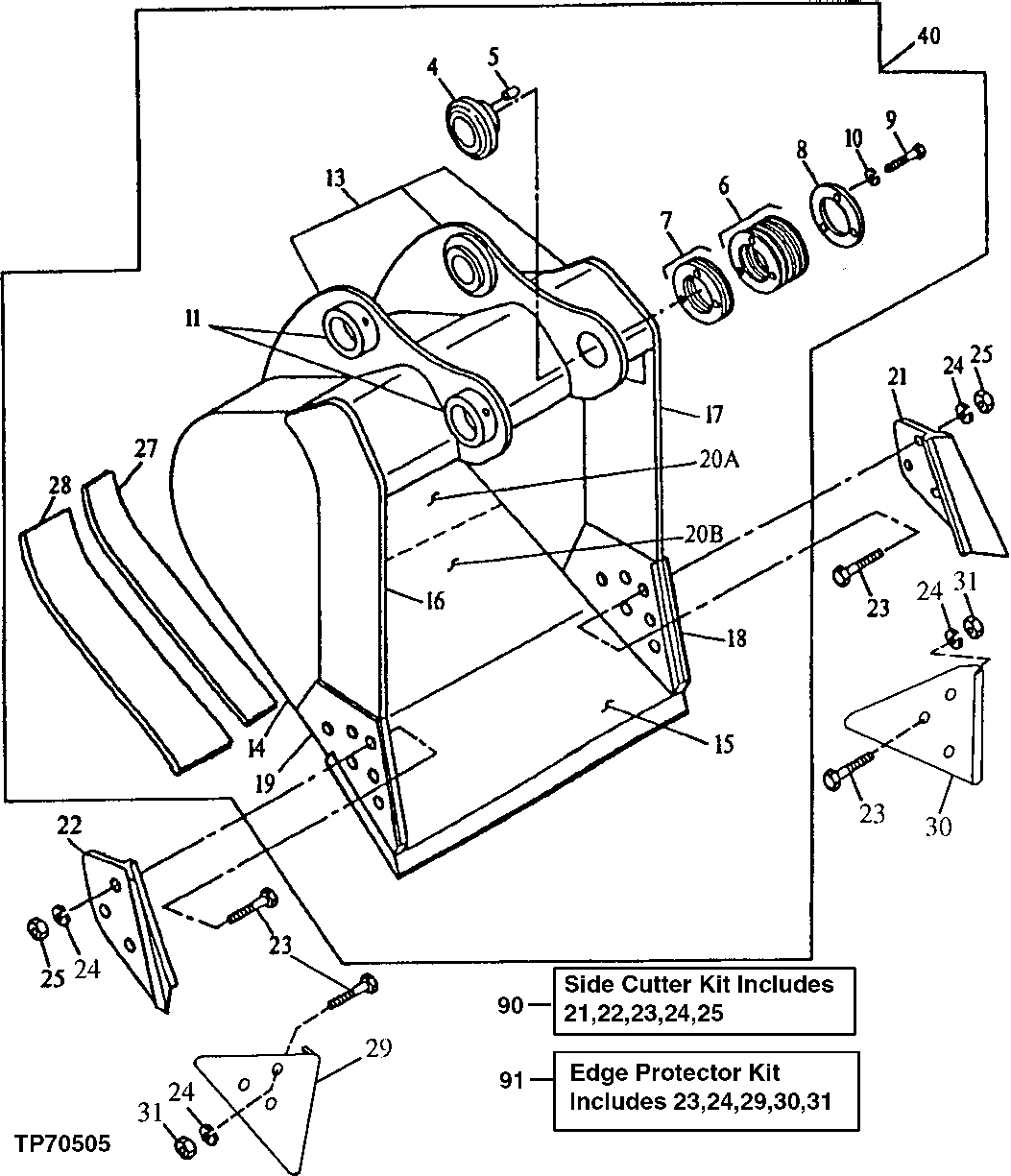

Запчасти John Deere 60LC 237 - General Purpose Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth
№
Артикул
Название
Примечание
Количество
4
Self-Aligning Bushing
( AT131083 NLA)
1шт.
5
R48685
Dowel Pin
1шт.
6
TH104512
Washer
1mm
9шт.
7
TH104513
Shim
5mm
1шт.
8
TH104514
Spacer
1шт.
9
19H2706
Cap Screw
5/8" X 2"
3шт.
10
12H294
Lock Washer
5/8"
3шт.
11
TH104509
Bushing
2шт.
13
C607429
Pivot
(A) Bucket Ear Blank Assembly
1шт.
14
607048
Plate
(A) Right and Left Side
2шт.
15
AT131081
Dura-Max Cutting Edge
(A) (CUT TO LENGTH)
1шт.
16
304954
Vertical Cutter
(A) Upper Right Side Cutter
1шт.
17
304955
Vertical Cutter
(A) Upper Left Side Cutter
1шт.
18
304953
Vertical Cutter
(A) Left Side Cutter Insert
1шт.
19
304952
Vertical Cutter
(A) Right Side Cutter Insert
1шт.
20A
604676
Moldboard
(A) 24in., Bucket Upper Moldboard
1шт.
604678
Moldboard
(A) 30in., Bucket Upper Moldboard
1шт.
604679
Moldboard
(A) 36in., Bucket Upper Moldboard
1шт.
604680
Moldboard
(A) 42in., Bucket Upper Moldboard
1шт.
604681
Moldboard
(A) 48in., Bucket Upper Moldboard
1шт.
20B
604667
Moldboard
(A) 24in., Bucket Lower Moldboard
1шт.
604669
Moldboard
(A) 30in., Bucket Lower Moldboard
1шт.
604671
Moldboard
(A) 42in., Bucket Lower Moldboard
1шт.
604672
Moldboard
(A) 48in., Bucket Lower Moldboard
1шт.
21
Cutting Edge
(K) (SUB AT131080)
1шт.
22
Cutting Edge
(K) (SUB AT131080)
1шт.
23
09H1770
Bolt
(K) 7/8" X 2-1/2"
6шт.
24
12H245
Lock Washer
(K) 7/8"
6шт.
25
14H1077
Nut
(K) 7/8"
6шт.
27
304966
Bar
Inner Wear Order Directly From Central Fabricators
1шт.
28
606618
Bar
(D) Outer Wear Order Direc tly From Central Fabricators
2шт.
29
Shroud
Wear Shroud
1шт.
30
Shroud
Wear Shroud
1шт.
31
14H1044
Nut
7/8"
6шт.
40
Excavator Bucket
24in. - .50 yd³, (SUB FOR AT131018 OR A T131138)( AT163580 NLA) (WHOLE GOODS) Av ailable Tooth Assemblies On Separate Pag e
1шт.
Excavator Bucket
30in. - .64 yd³, (SUB FOR AT131019 OR A T131139)( AT163581 NLA) (WHOLE GOODS) Av ailable Tooth Assemblies On Separate Pag e
1шт.
Excavator Bucket
36in. - .78 yd³, (SUB FOR AT131020 OR A T131140)( AT163582 NLA) (WHOLE GOODS) Av ailable Tooth Assemblies On Separate Pag e
1шт.
Excavator Bucket
42in. - .92 yd³, (SUB FOR AT131021 OR A T131141)( AT163583 NLA) (WHOLE GOODS) Av ailable Tooth Assemblies On Separate Pag e
1шт.
Excavator Bucket
48in.- 1.06 yd³, (SUB FOR AT131022 OR A T131142)( AT163584 NLA) (WHOLE GOODS) Av ailable Tooth Assemblies On Separate Pag e
1шт.
90
Kit
Side Cutter Kit ( AT131080 NLA)
1шт.
91
Kit
Edge Protector Kit ( AT167874 NLA)
1шт.
Выбрано товаров: 42
