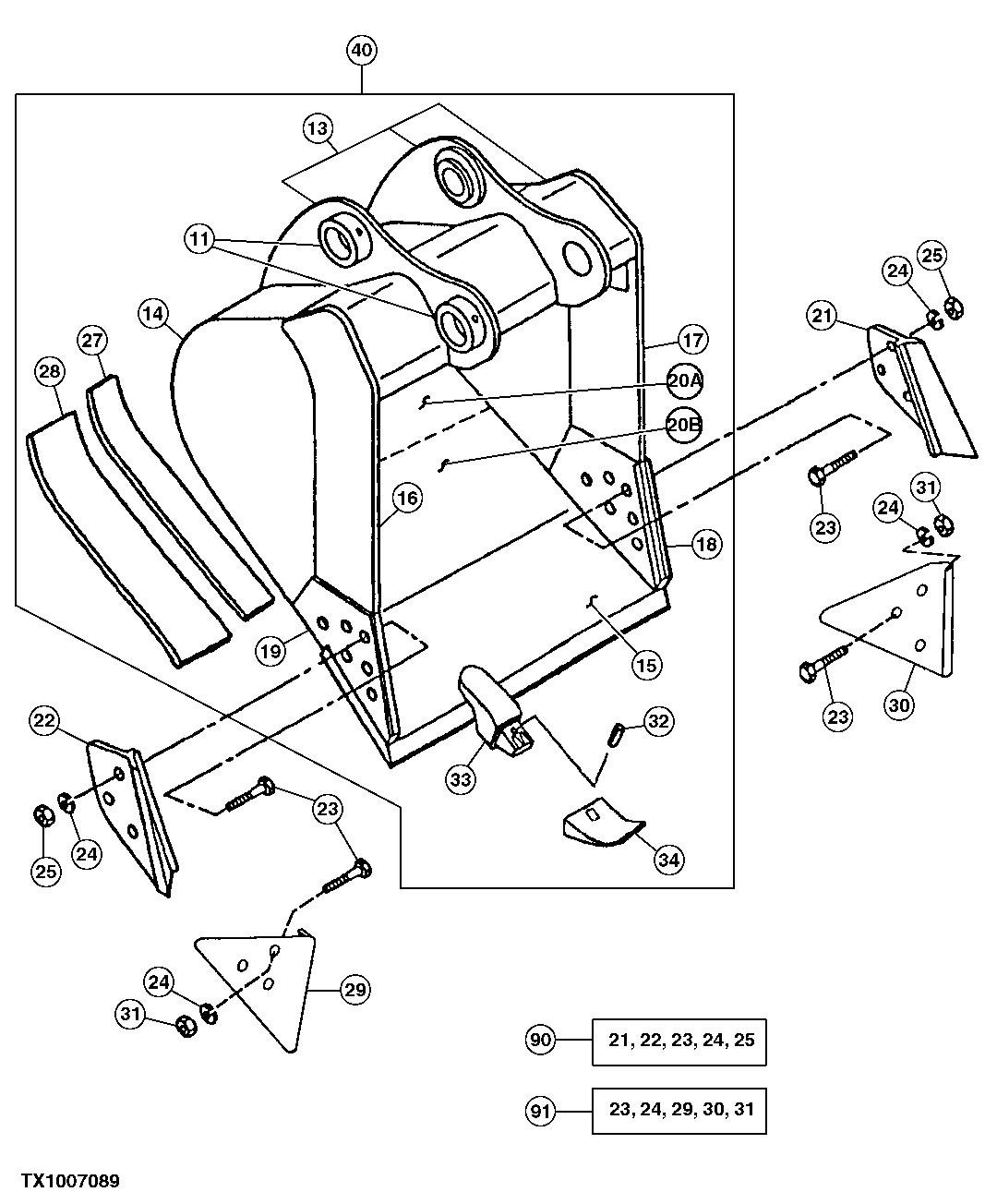

Запчасти John Deere 60LC 235 - Heavy Duty Bucket 3302 Bucket With Teeth

11

TH104509

Bushing

2шт.

13

C607429

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300167

Plate

(A) (RH) (LH)

2шт.

15

AT131082

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300159

Vertical Cutter

(A) (UPPER RH)

1шт.

17

300160

Vertical Cutter

(A) (UPPER LH)

1шт.

18

300158

Vertical Cutter

(A) (LH)

1шт.

19

300157

Vertical Cutter

(A) (RH)

1шт.

20A

600113

Moldboard

(A) 24in., (UPPER)

1шт.

600114

Moldboard

(A) 30in., (UPPER)

1шт.

600115

Moldboard

(A) 36in., (UPPER)

1шт.

20B

600118

Moldboard

(A) 24in., (UPPER)

1шт.

600119

Moldboard

(A) 30in., (UPPER)

1шт.

600120

Moldboard

(A) 36in., (UPPER)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300156

Bar

Inner Wear

1шт.

28

306452

Bar

Outer Wear

2шт.

29

Shroud

(SUB (1) AT167874) Wear

1шт.

30

Shroud

(SUB (1) AT167874) Wear

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

Excavator Bucket

24in. 0.59 yd³, (4 TEETH) ( AT33 2679 NLA) (SUB FOR AT131027, AT13 1147 OR AT163589 ) (SUB AT339088)

1шт.

Excavator Bucket

30in. 0.77 yd³, (4 TEETH) ( AT33 2680 NLA) (SUB FOR AT131028, AT13 1148 OR AT163590 ) (SUB AT339090)

1шт.

Excavator Bucket

36in. 0.95 yd³, (5 TEETH) ( AT33 2681 NLA) (SUB FOR AT131029, AT13 1149 OR AT163591 ) (SUB AT339092)

1шт.

Excavator Bucket

42in. 1.12 yd³, (6 TEETH) ( AT33 2682 NLA) (SUB FOR AT160741, AT16 0742 OR AT163592 ) (SUB AT339094)

1шт.

90

Kit

Side Cutter Kit ( AT131080 NLA)

1шт.

91

Kit

Edge Protector Kit (EDGE PR OTECTOR KIT) ( AT167874 NLA)

1шт.
