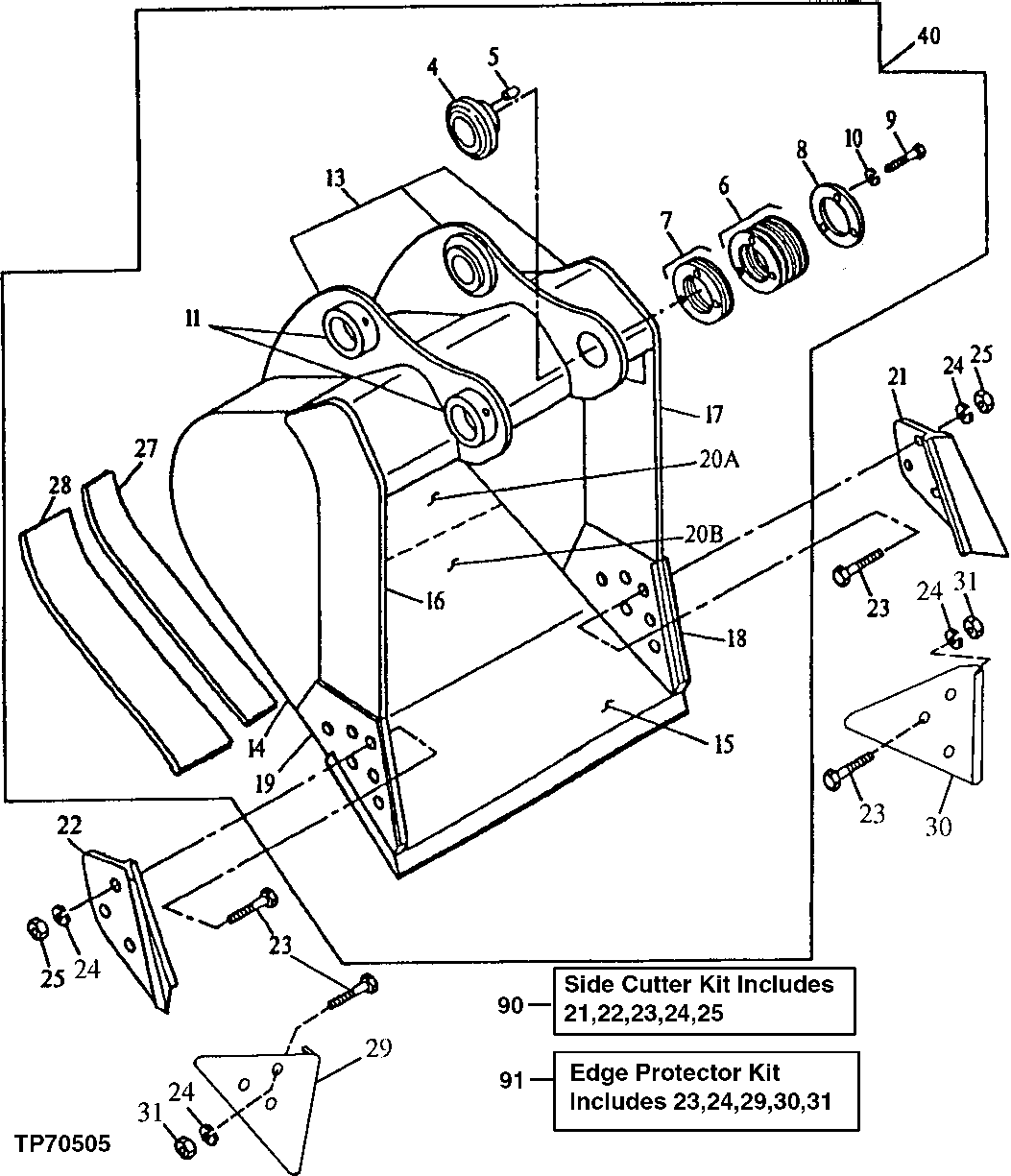

Запчасти John Deere 60LC 234 - Heavy Duty Bucket (Also Order Bucket Tooth Assemblies) 3302 Bucket With Teeth

4

Self-Aligning Bushing

( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

1mm

9шт.

7

TH104513

Shim

5mm

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

2шт.

13

C607429

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300167

Plate

(A) Right and Left Side

2шт.

15

AT131082

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300159

Vertical Cutter

(A) Upper Right Side Cutter

1шт.

17

300160

Vertical Cutter

(A) Upper Left Side Cutter

1шт.

18

300158

Vertical Cutter

(A) Left Side Cutter Insert

1шт.

19

300157

Vertical Cutter

(A) Right Side Cutter Insert

1шт.

20A

600113

Moldboard

(A) 24in., Bucket Upper Moldboard

1шт.

600114

Moldboard

(A) 30in., Bucket Upper Moldboard

1шт.

600115

Moldboard

(A) 36in., Bucket Upper Moldboard

1шт.

20B

600118

Moldboard

(A) 24in., Bucket Upper Moldboard

1шт.

600119

Moldboard

(A) 30in., Bucket Upper Moldboard

1шт.

600120

Moldboard

36in.T, Bucket Upper Moldboard

1шт.

21

Cutting Edge

(K) (SUB AT131080)

1шт.

22

Cutting Edge

(K) (SUB AT131080)

1шт.

23

09H1770

Bolt

(K) 7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

(K) 7/8"

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

300156

Bar

(A) Inner Wear

1шт.

28

306452

Bar

(A) Outer Wear

2шт.

29

Shroud

Wear Shroud (SUB AT167874)

1шт.

30

Shroud

Wear Shroud (SUB AT167874)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

24in.- .59 yd³, (SUB FOR AT131027, AT131147 ) (SUB AT332679) (WHOLE GOODS) ( AT163589 NLA ) Available Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

30in. - .77 yd³, (SUB FOR AT131028, AT131148 ) (SUB AT332680) (WHOLE GOODS) ( AT163590 NL A) Available Tooth Assemblies On Separate Pag e

1шт.

Excavator Bucket

36in.- .95 yd³, (SUB FOR AT131029, AT131149 ) (SUB AT332681) (WHOLE GOODS) ( AT163591 NLA ) Available Tooth Assemblies On Separate Page

1шт.

Excavator Bucket

42in.- 1.12 yd³, (SUB FOR AT160741, AT160742 ) (SUB AT332682) (WHOLE GOODS) ( AT163592 NLA ) Available Tooth Assemblies On Separate Page

1шт.

90

End Bit

Side Cutter Kit ( AT131080 NLA)

1шт.

91

Kit

Edge Protector Kit ( AT167874 NLA)

1шт.
